Quick answer
Build a complete helmet-mounted thermal system without guessing about compatibility. Choose your thermal optic, mounting system, and CDI Bighorn ballistic helmet size and color in one configurable package.
Who this is for
Best for
Best for hunters, landowners, ranchers, and professional users who want hands-free thermal scanning with the optic, mount, and helmet selected together.
Not ideal for
Not ideal for buyers who primarily scan from a vehicle, blind, tripod, or fixed position—or anyone who only needs a handheld thermal monocular or a single replacement helmet accessory.
Quick specifications
- Category
- Helmet Accessory
Why buy from Thermal Bros
You get real product guidance, financing options, and trade-in or consignment help when available.
Full product description
Build a complete thermal helmet system without guessing which optic, mount, bridge, and helmet will work together. Choose your helmet-mounted thermal optic, mounting system, and CDI Bighorn ballistic helmet size and color. Thermal Bros will help confirm that the selected components make sense as one practical, hands-free setup.
- Choose from 384-resolution, 640-resolution, fusion, and multi-role thermal optics
- Select an affordable universal dual bridge or the premium UNV Ultimate Helmet Mount
- Choose a CDI Bighorn High Cut Ballistic Helmet IIIA in black, green, or tan
- Built for hunters, landowners, ranchers, search teams, and professional night users
What you receive: the thermal optic, mounting system, and helmet selected on this page and shown in your cart. Batteries, counterweights, lights, hearing protection, weapon mounts, and other accessories are included only when they are specifically named in the selected configuration or cart.
Which Thermal Optic Should You Choose?
The best choice depends on whether you value price, image detail, fusion, an integrated rangefinder, or the ability to move the optic between a helmet, handheld, clip-on, and weapon-mounted role.
| Thermal optic | Best for | Honest limitation |
|---|---|---|
|
RIX Stride ST3 Lite 384x288, 15mm, 1x |
The lowest-cost lightweight helmet thermal and close-range heat detection | Less image detail than the 640 options, especially when digitally zoomed |
|
RIX Stride ST6 Lite 640x512, 25mm, 1x |
The best overall thermal-only choice for wide-field, hands-free scanning | It is a dedicated observation monocular, not a thermal riflescope or clip-on |
|
Nocpix MINI2 H25 640 thermal plus 1080p digital night vision |
Users who genuinely need thermal detection, digital night vision, and fusion in one helmet monocular | More expensive and complex than a dedicated thermal; it is not a weapon sight |
|
iRayUSA RICO MICRO RH25 V2 640x480, multi-role |
Buyers who want one optic for helmet, handheld, weapon-sight, and clip-on use | Its 1.36x native magnification and 11.3-ounce weight are less natural on a helmet than a lighter true-1x optic |
|
Zentron CQ25R 640x512, 4-in-1, integrated LRF |
Feature-focused users who want thermal, ranging, and multiple operating modes in one device | At approximately 365 grams, it is the heaviest optic option and may require more attention to helmet balance |

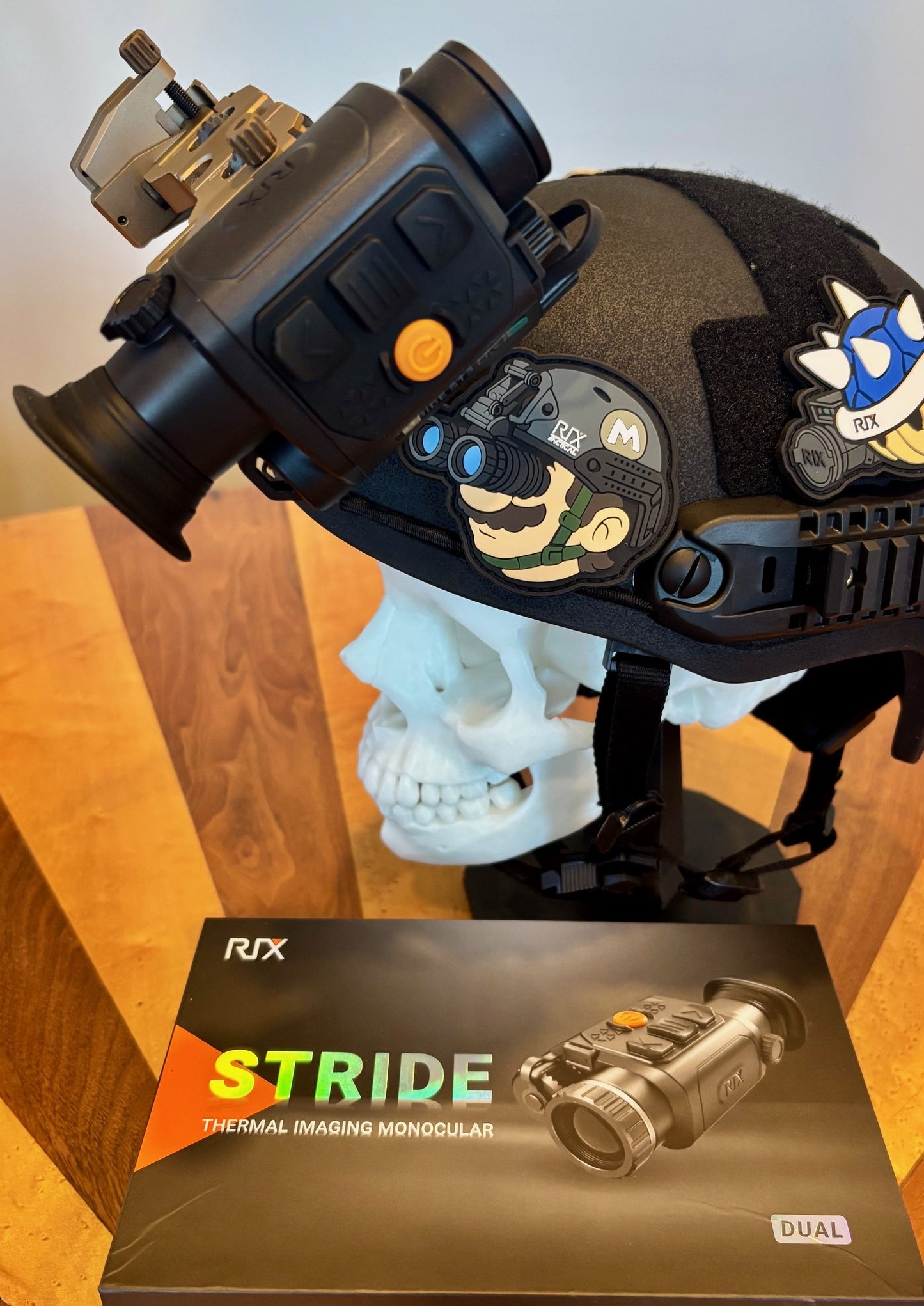

Best value: RIX Stride ST3 Lite
The RIX Stride ST3 Lite is the sensible entry point for buyers who want a light, true-1x helmet thermal without paying for a 640 sensor or features they may not use. Choose it for detection and close-range awareness, not maximum identification detail.

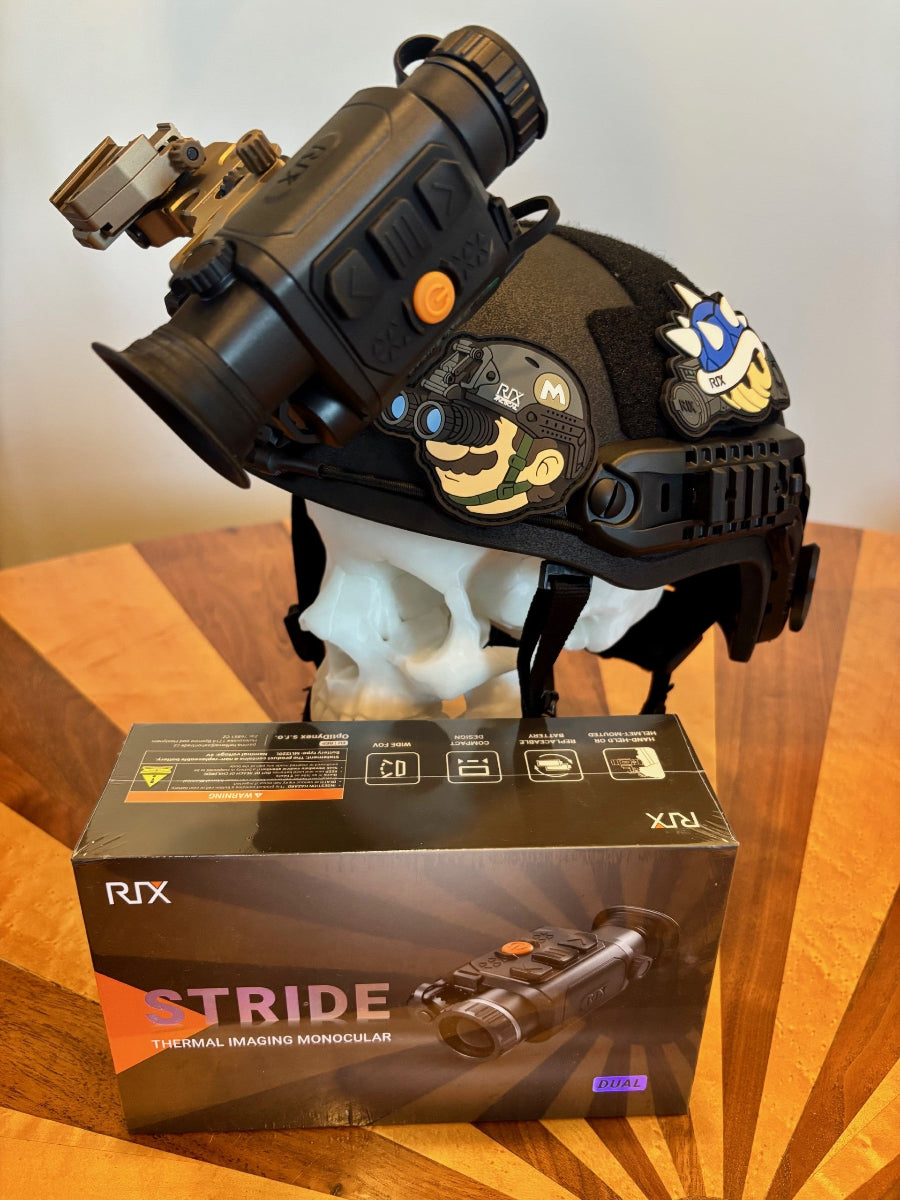

Best thermal-only choice: RIX Stride ST6 Lite
The RIX Stride ST6 Lite is our strongest all-around recommendation for a dedicated helmet thermal. Its 640x512 sensor, true 1x view, wide field of view, and approximately 0.45-pound weight make more sense on a helmet than a heavier multi-role optic for most hunters and landowners.

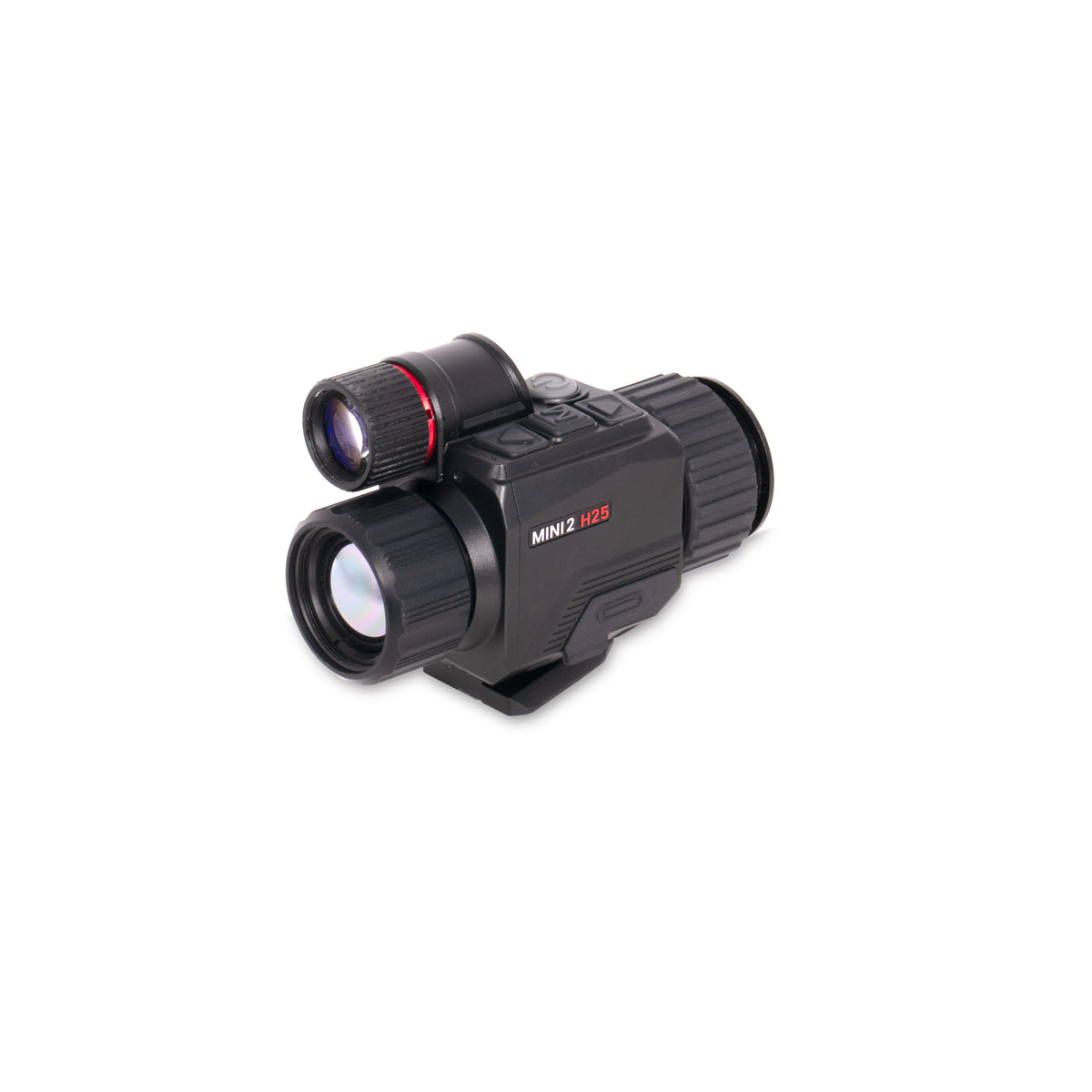

Best fusion choice: Nocpix MINI2 H25
The Nocpix MINI2 H25 combines 640x512 thermal, 1080p digital night vision, and a fusion view. Choose it when seeing heat and retaining more recognizable scene context solve a real need. If you only need to detect heat, the ST6 Lite is the simpler and less expensive answer.
Best multi-role choice: iRayUSA RICO MICRO RH25 V2
The RICO MICRO RH25 V2 makes sense when one thermal needs to serve as a handheld, helmet monocular, standalone weapon sight, and clip-on. That versatility is valuable, but buyers focused only on helmet use should not pay extra or accept additional weight unless they will use the other roles.

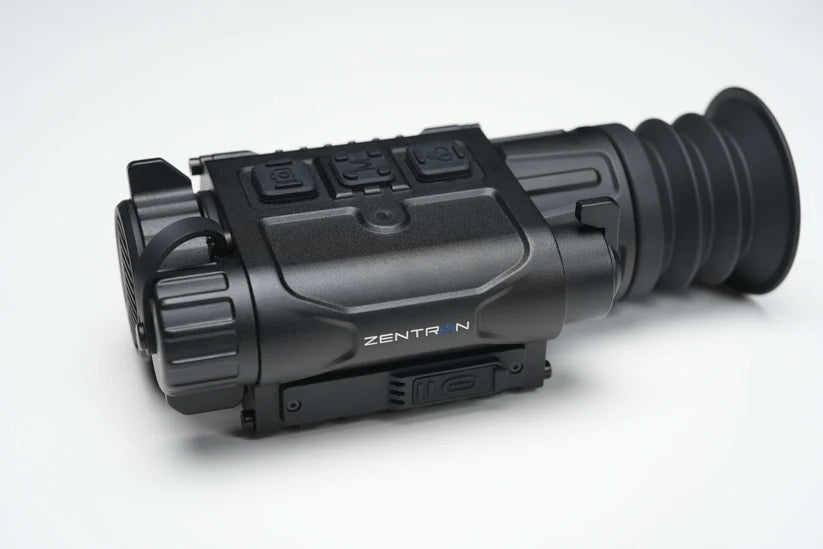

Most features: Zentron CQ25R
The Zentron CQ25R combines a 640x512 sensor, integrated laser rangefinder, and helmet, handheld, riflescope, and clip-on modes. It offers the broadest feature set in this package, but it is also the heaviest option. Build around its capability only if those additional roles matter to you.
Choose Your Helmet Mount

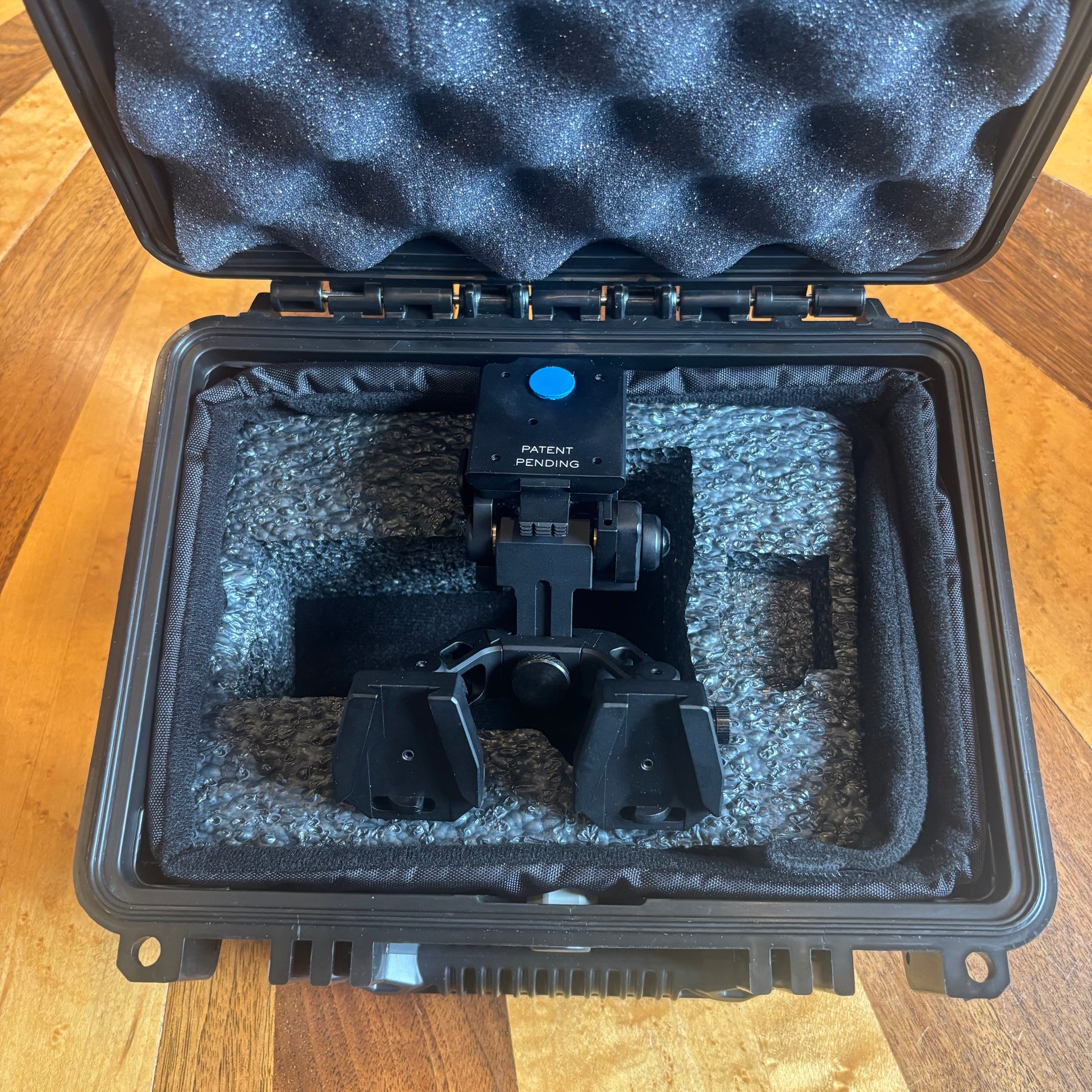

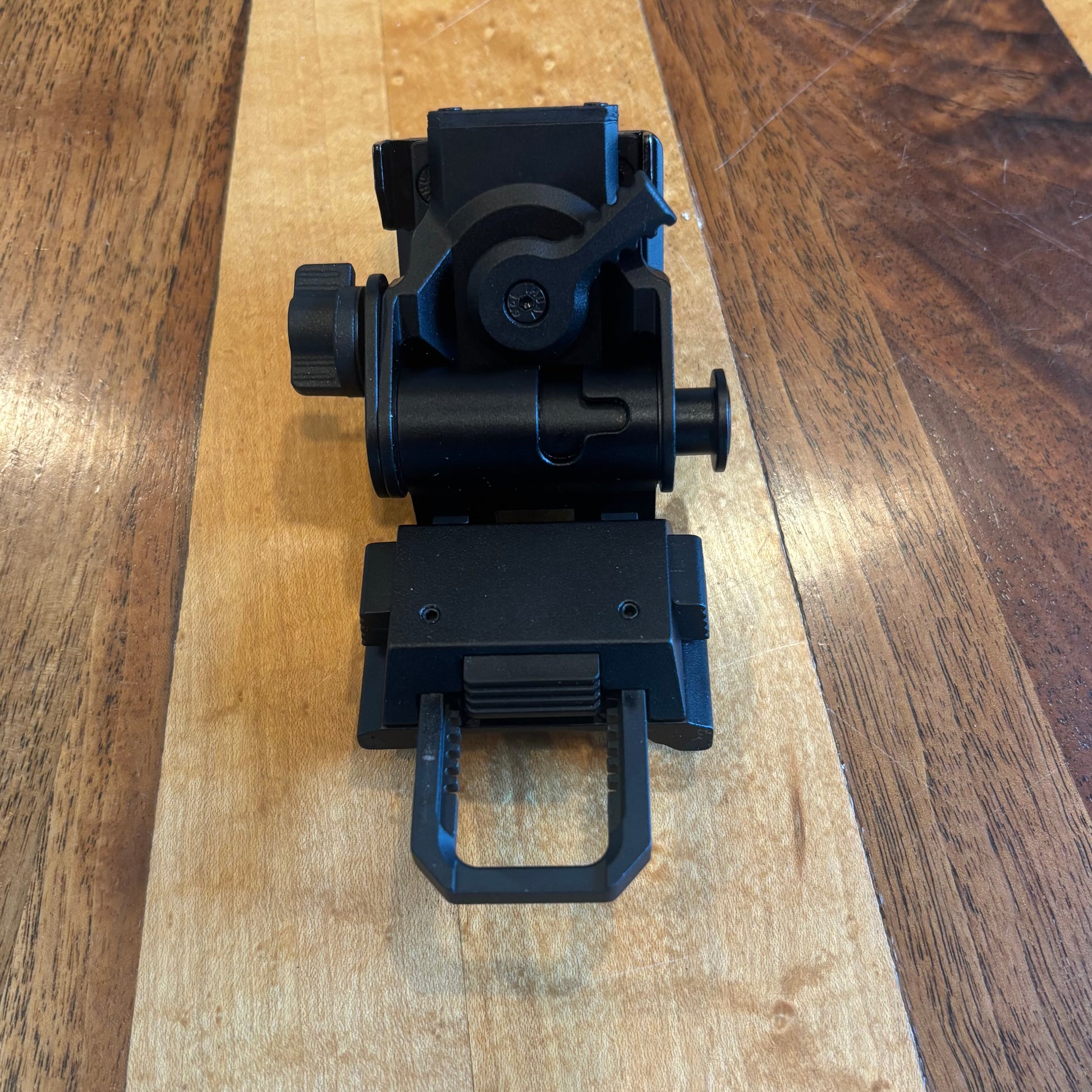

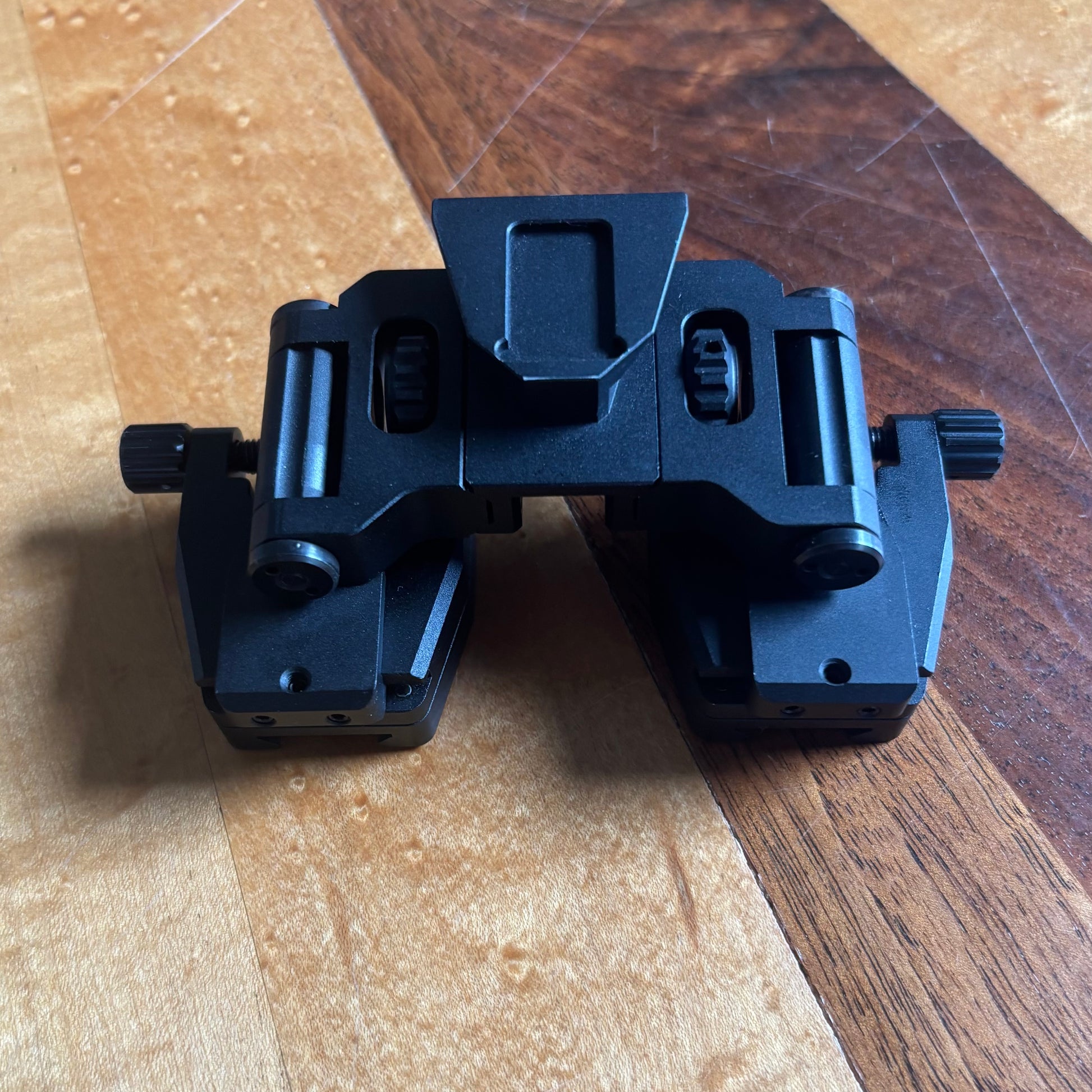

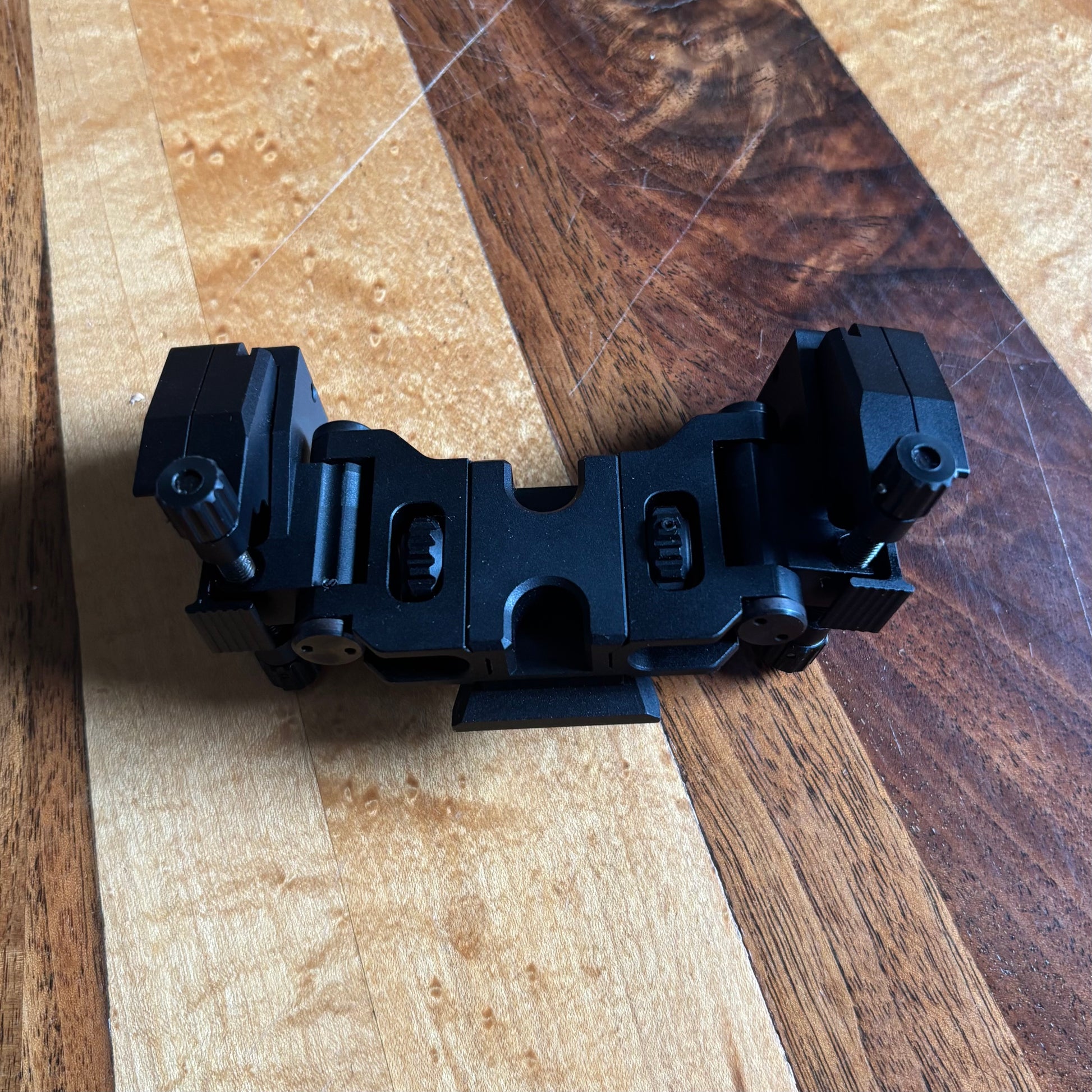

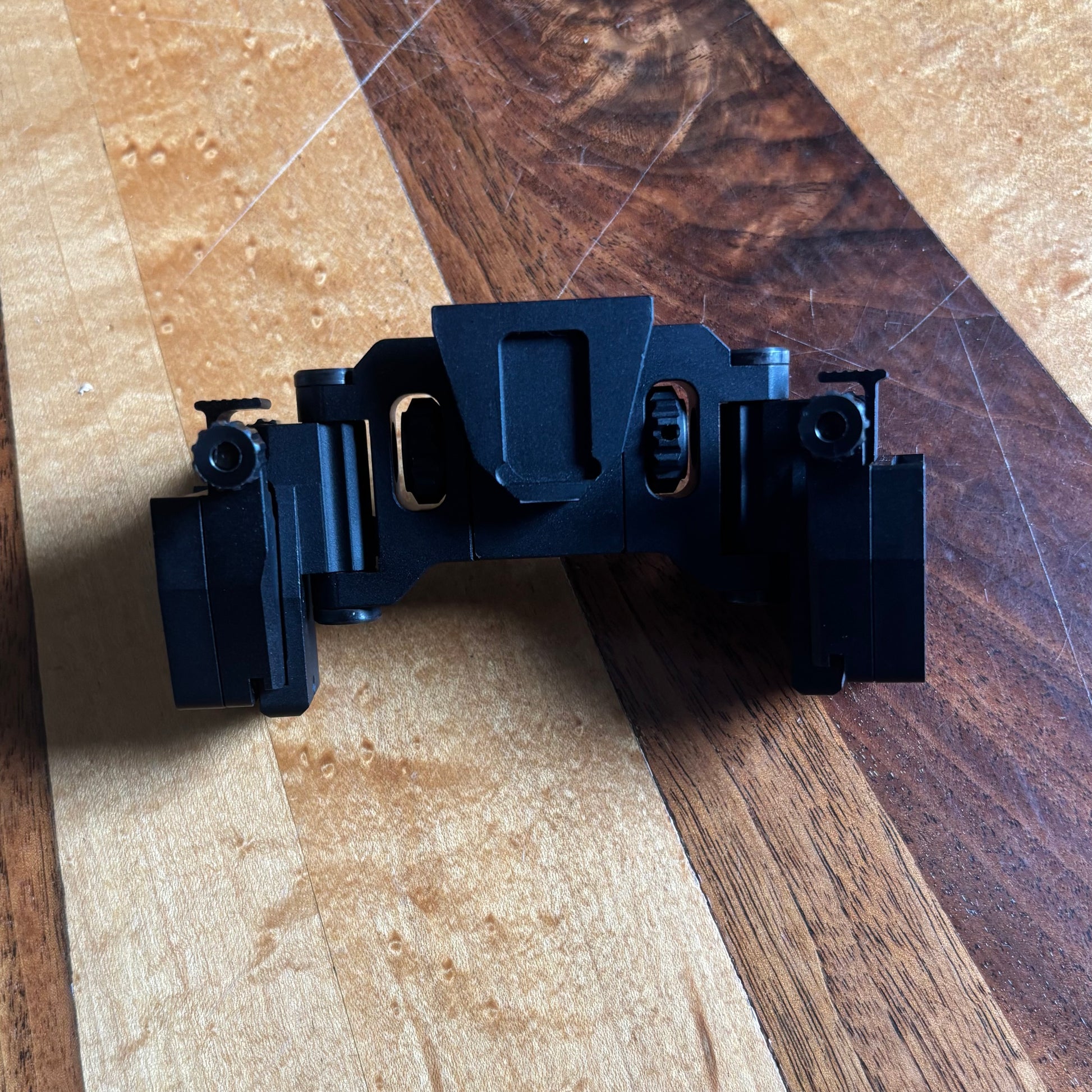

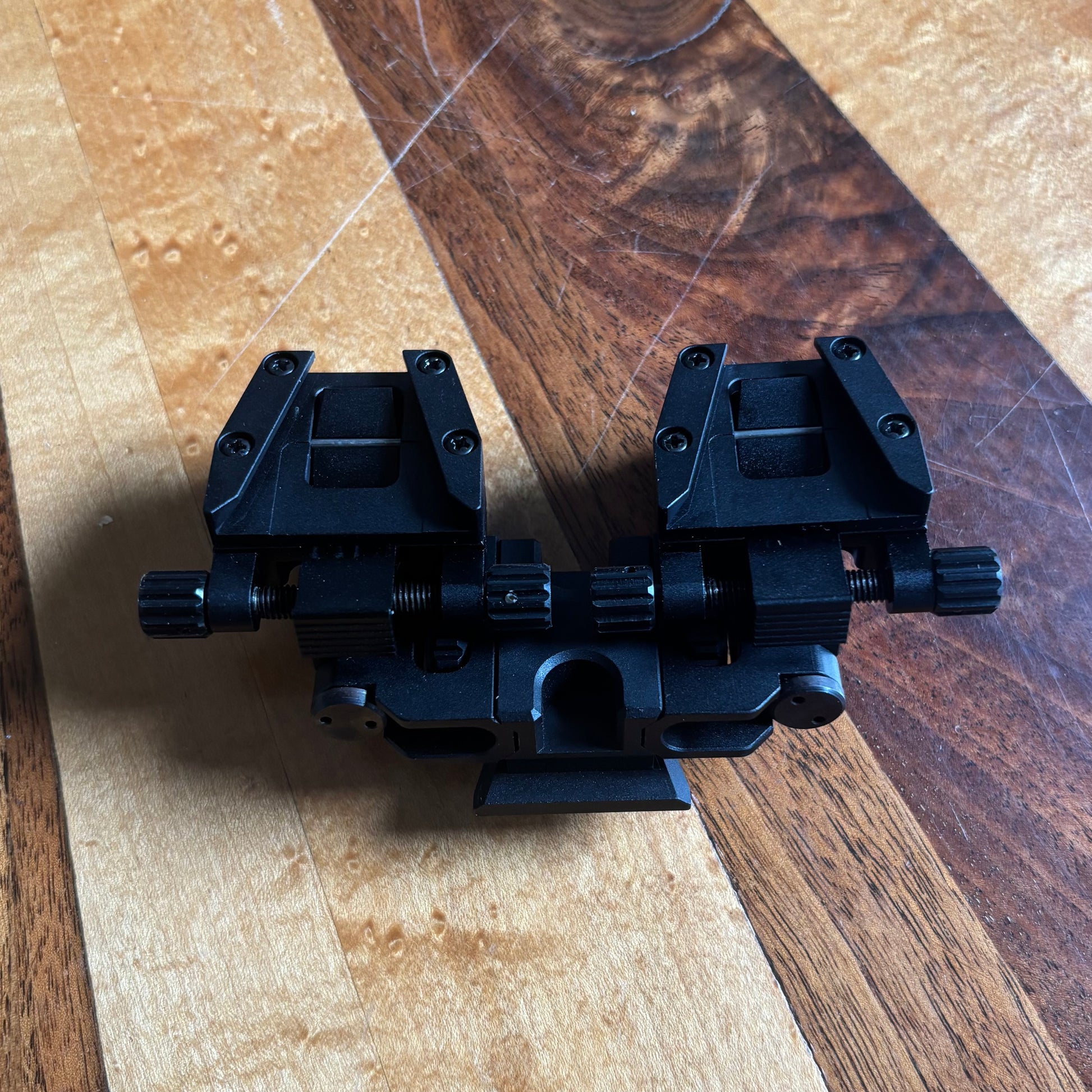

Universal Dual Bridge
The Universal Dual Bridge Night Vision and Thermal Helmet Mount Kit is the value option. It includes the core mount and dual-device bridge for compatible thermal, night vision, or mixed configurations. It is best for buyers who want flexibility at a lower cost and do not require the refinement or documented performance of a premium professional mounting system.

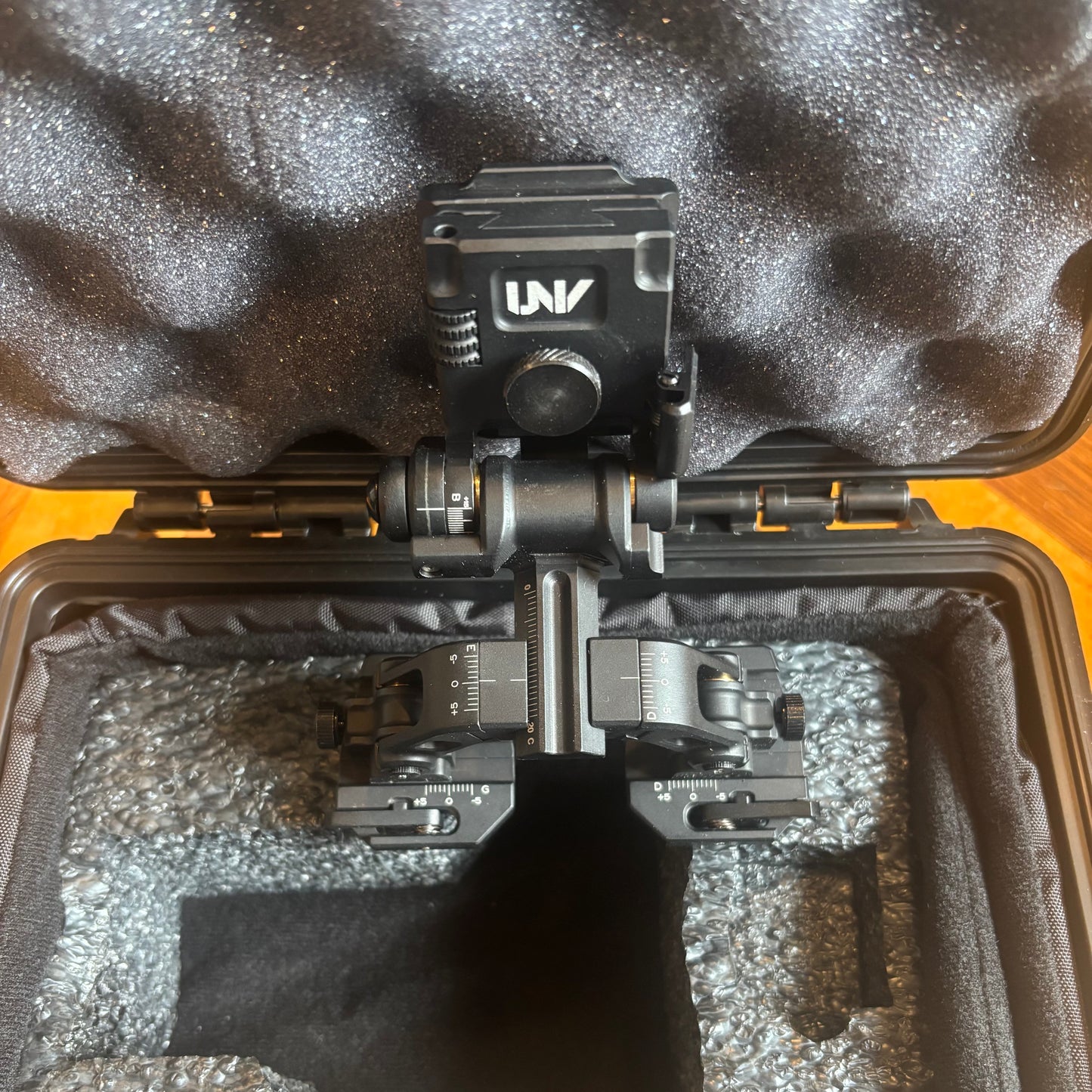

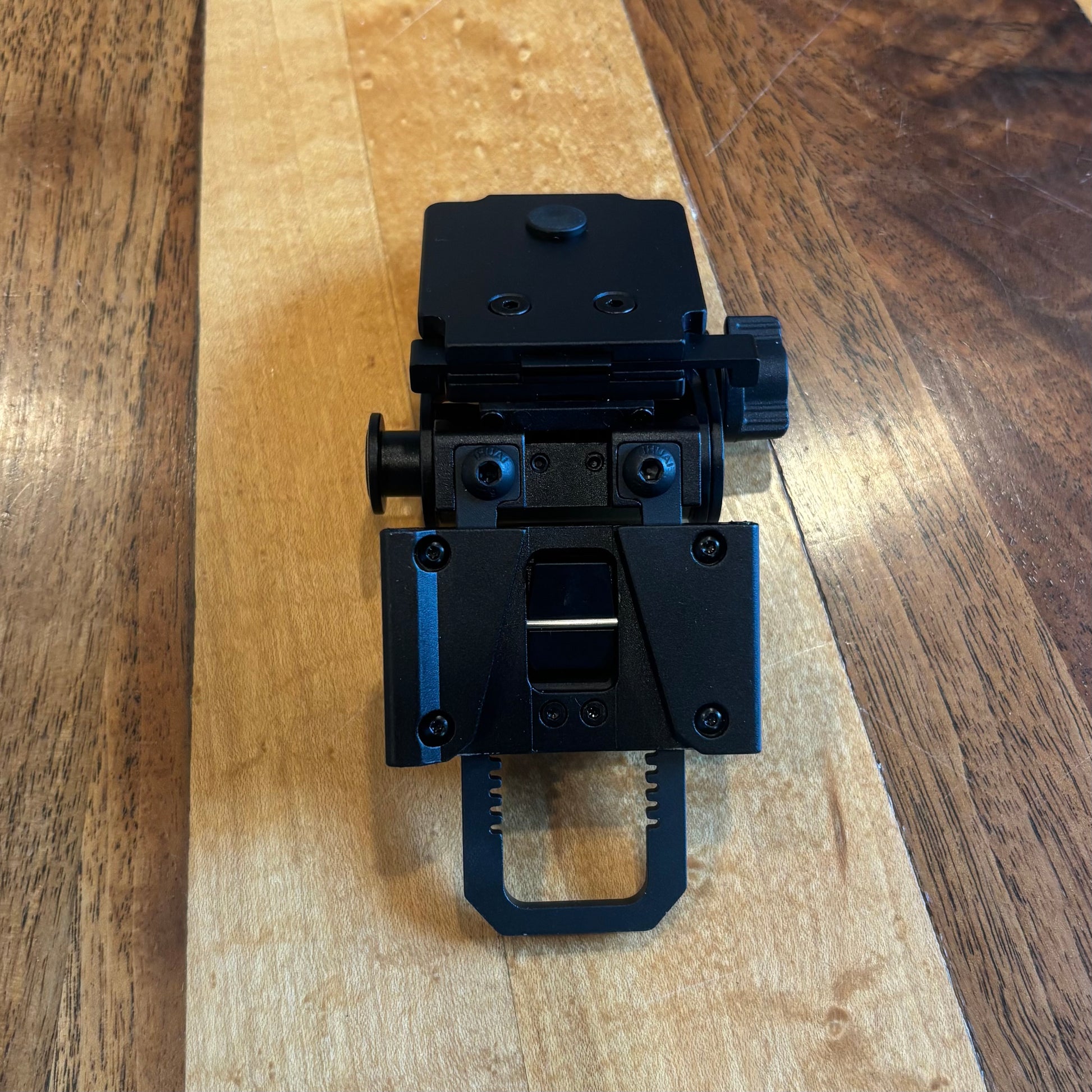

UNV Ultimate Helmet Mount
The UNV Ultimate Helmet Mount is the premium choice for serious single-optic, dual-monocular, binocular, or mixed thermal and night-vision setups. Independent positioning gives you more control over alignment, eye relief, tilt, and fit. It is worth the added cost for users who expect to reconfigure or expand the system; it is overkill for someone who only needs a basic single-monocular mount.
Not every optic attaches to every bridge without device-specific hardware. The selected package must include the correct optic-side interface. If you already own part of the system, browse our thermal and night vision helmet mounts and accessories or contact Thermal Bros before ordering so we can check the complete mounting chain.

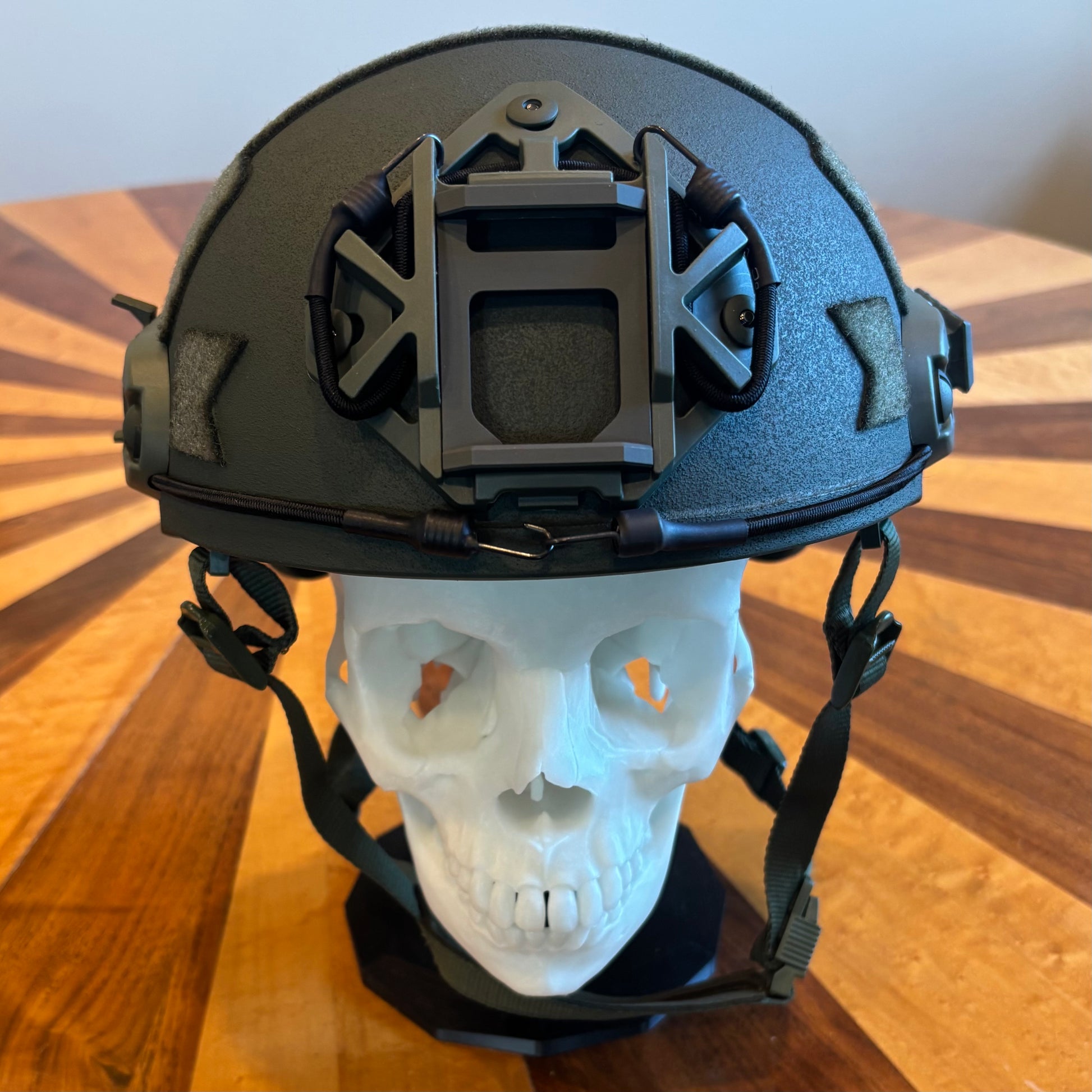

CDI Bighorn High Cut Ballistic Helmet IIIA
Each configuration uses the Combat Defense CDI Bighorn High Cut Ballistic Helmet IIIA as the helmet platform. Its high-cut design provides side-rail access for compatible accessories, while the front shroud supports the selected helmet mounting system. Choose the correct size and color before adding the package to your cart.
CDI Bighorn Helmet Size Chart
| Helmet size | Head circumference | Published complete weight |
|---|---|---|
| Medium | 20.8–22.64 in / 530–575 mm | 3.1 lb / 1,406 g |
| Large | 21.65–23.22 in / 550–590 mm | 3.3 lb / 1,497 g |
| Extra Large | 22.44–24.40 in / 570–620 mm | 3.6 lb / 1,633 g |
Measure around the widest part of your head, normally just above the eyebrows and ears. Keep the measuring tape level and snug without pulling it tight. Because the published size ranges overlap, contact Thermal Bros if your measurement falls near a boundary or you are unsure which size will fit your head shape and padding preference.
A ballistic helmet is not automatically the best choice for every hunter. It adds protection, but it also adds weight. If ballistic protection is not part of your actual use case, compare other helmets and headgear before buying a more substantial system than you need.
Who Is This Complete Thermal Helmet System For?
- Predator and hog hunters who want hands-free heat detection
- Landowners and ranchers checking livestock, gates, roads, fields, or equipment after dark
- Search, observation, security, and professional users who need a stable head-mounted thermal platform
- Buyers who want the helmet, mount, bridge, and optic matched before purchase
- Users building toward a dual-device thermal and night-vision configuration
Who should skip it?
- Anyone who mainly scans from a truck, blind, tripod, or fixed position and would be better served by a handheld thermal monocular
- Buyers who primarily need natural movement and terrain detail; compare helmet-mounted night vision instead
- Customers replacing one mount, bridge, helmet, or adapter rather than building a complete system
- Anyone buying a helmet setup for appearance rather than a real hands-free use case
Thermal vs. Night Vision on a Helmet
Helmet-mounted thermal is best for finding warm animals, people, and equipment quickly. Traditional night vision is generally better for walking, reading terrain, and seeing objects that are close to the same temperature as their surroundings. The MINI2 H25 adds digital night vision and fusion, but it should not be treated as identical to analog image-intensifier night vision.
This package currently offers thermal and fusion optic choices. If navigation and natural movement are your main priorities, compare our helmet-mounted night vision goggles before choosing a thermal-only system.
Frequently Asked Questions
What comes with the Complete Thermal Helmet System?
You receive the thermal optic, helmet mounting system, and CDI Bighorn helmet selected on the product page and shown in your cart. Do not assume that a counterweight, light, hearing protection, external battery, weapon mount, or another accessory is included unless it is specifically listed.
What is the best thermal optic for helmet use?
For most buyers, the RIX Stride ST6 Lite is the best dedicated helmet thermal in this package because it combines a 640x512 sensor, true 1x base magnification, wide field of view, and low weight. The ST3 Lite is the better value, while the MINI2 H25, RH25 V2, and CQ25R make sense when fusion, multi-role use, or an integrated rangefinder matters enough to justify added cost or weight.
Is 384 or 640 resolution better for a thermal helmet?
A 640 sensor provides more image detail and holds up better when zoomed, but it costs more. A 384 sensor can still be effective for close-range heat detection and is usually the better value for occasional use. Resolution alone does not determine helmet comfort; native magnification, field of view, weight, mount position, and balance also matter.
Can I walk or drive while wearing a thermal monocular?
A true-1x or near-1x thermal can improve hands-free awareness, but thermal does not show every hole, branch, wire, drop-off, or obstacle clearly. Do not rely on thermal as your only navigation aid, and do not operate a vehicle unless the equipment, conditions, and applicable laws allow it to be done safely.
Can I use the selected thermal optic on a rifle?
Only optics specifically designed and rated for weapon use should be mounted on a firearm. The RH25 V2 and CQ25R are multi-role systems with weapon-capable modes and appropriate mounting requirements. The RIX Stride models and MINI2 H25 should be treated as observation devices, not thermal weapon sights.
Do I need a counterweight?
Not always. A counterweight can improve front-to-rear balance, especially with heavier optics or dual-device setups, but it also increases total helmet weight. Start with the lightest practical configuration, adjust the helmet correctly, and add only the amount of balance you actually need.
Can Thermal Bros confirm compatibility before the system ships?
Yes. Helmet systems are easy to mismatch. If you are unsure about optic choice, helmet sizing, bridge compatibility, adapters, or balance, contact Thermal Bros or call 866-464-4461. We will help you choose the simplest setup that actually fits the job.
Build the Right System the First Time
A good thermal helmet system is not the one with the most expensive parts. It is the one that fits correctly, balances well, provides the view your use case requires, and remains comfortable enough to wear. Compare all helmet-mounted thermal monoculars, review individual helmet mounts and accessories, or use our thermal trade-in and consignment program if you want to move out of an existing optic before upgrading.
