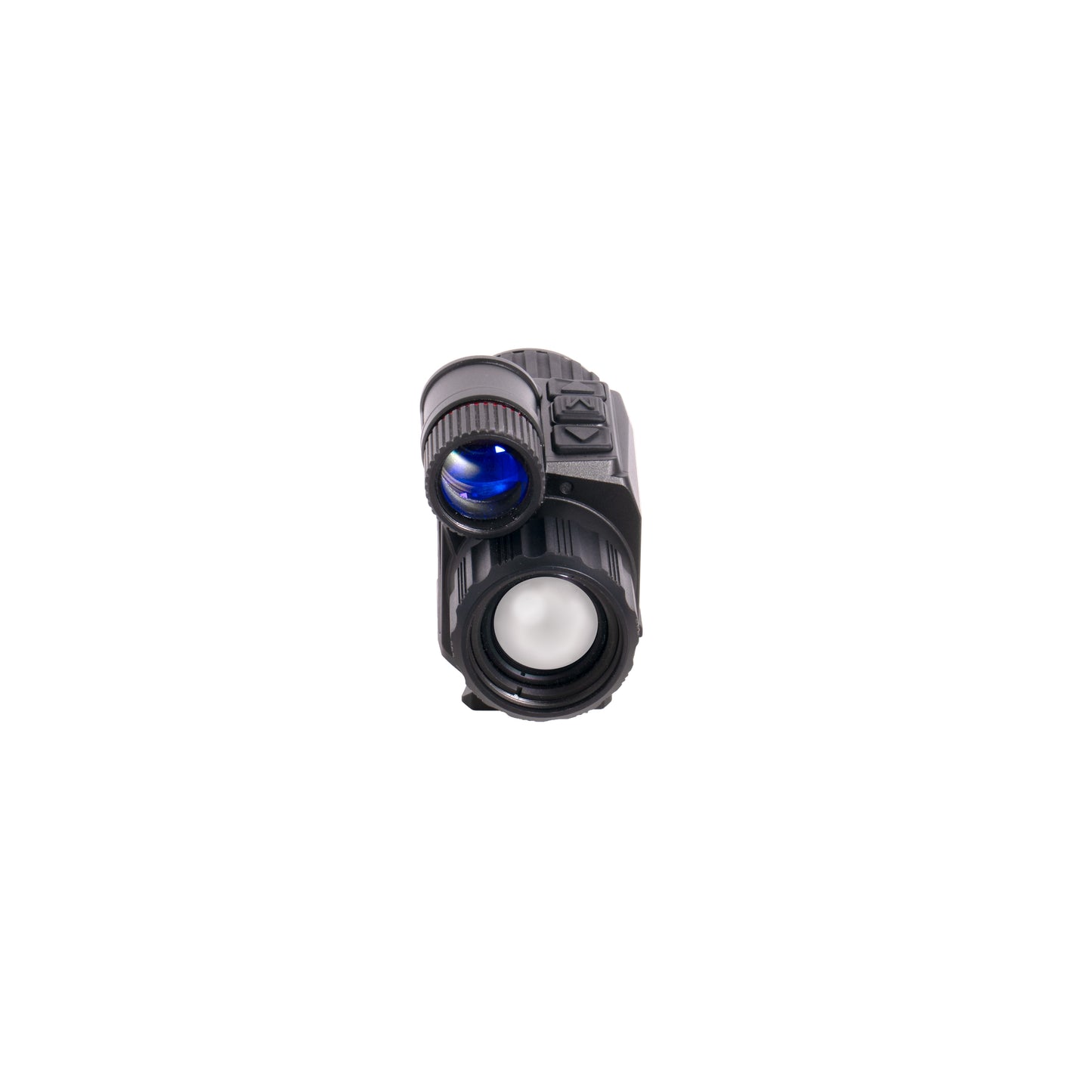

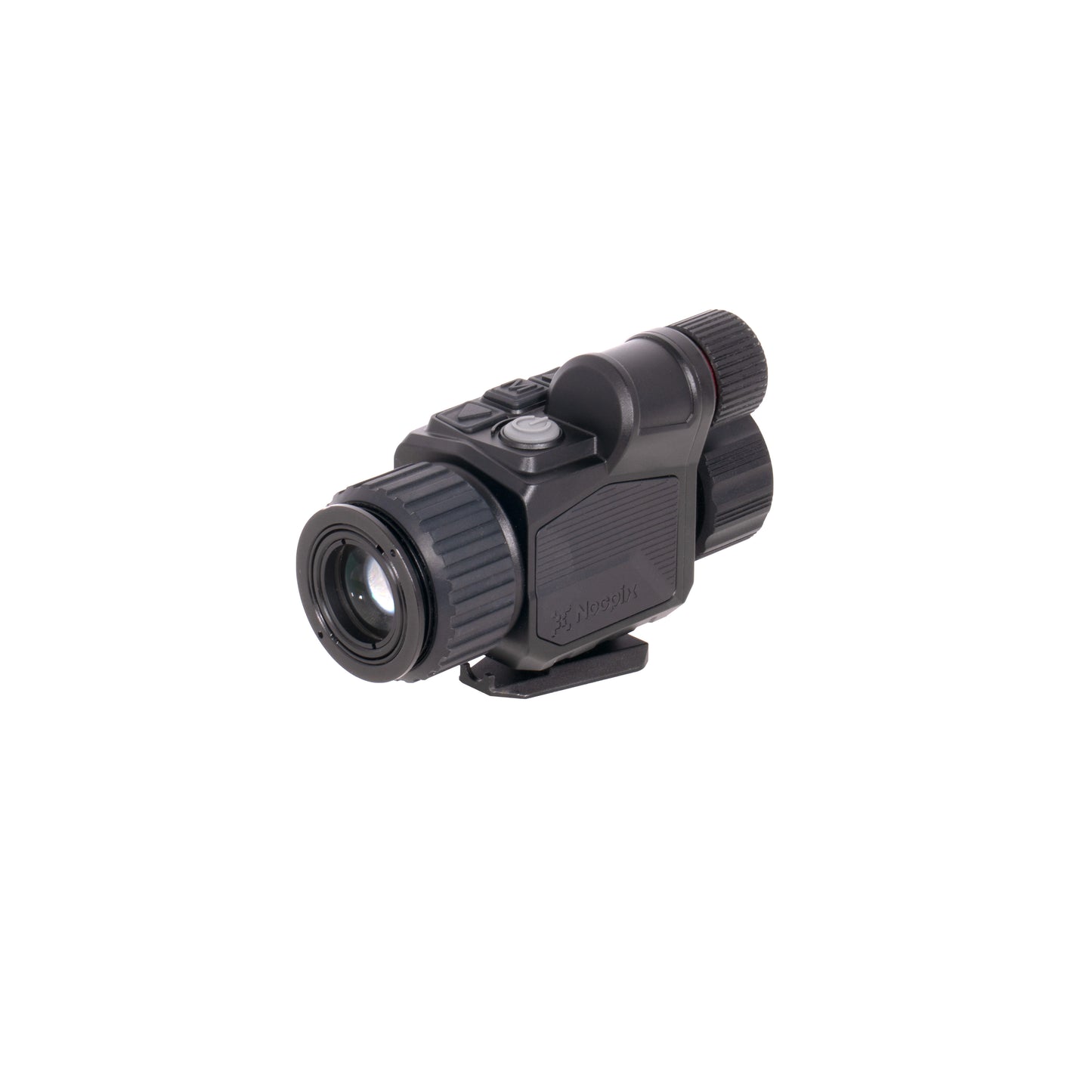

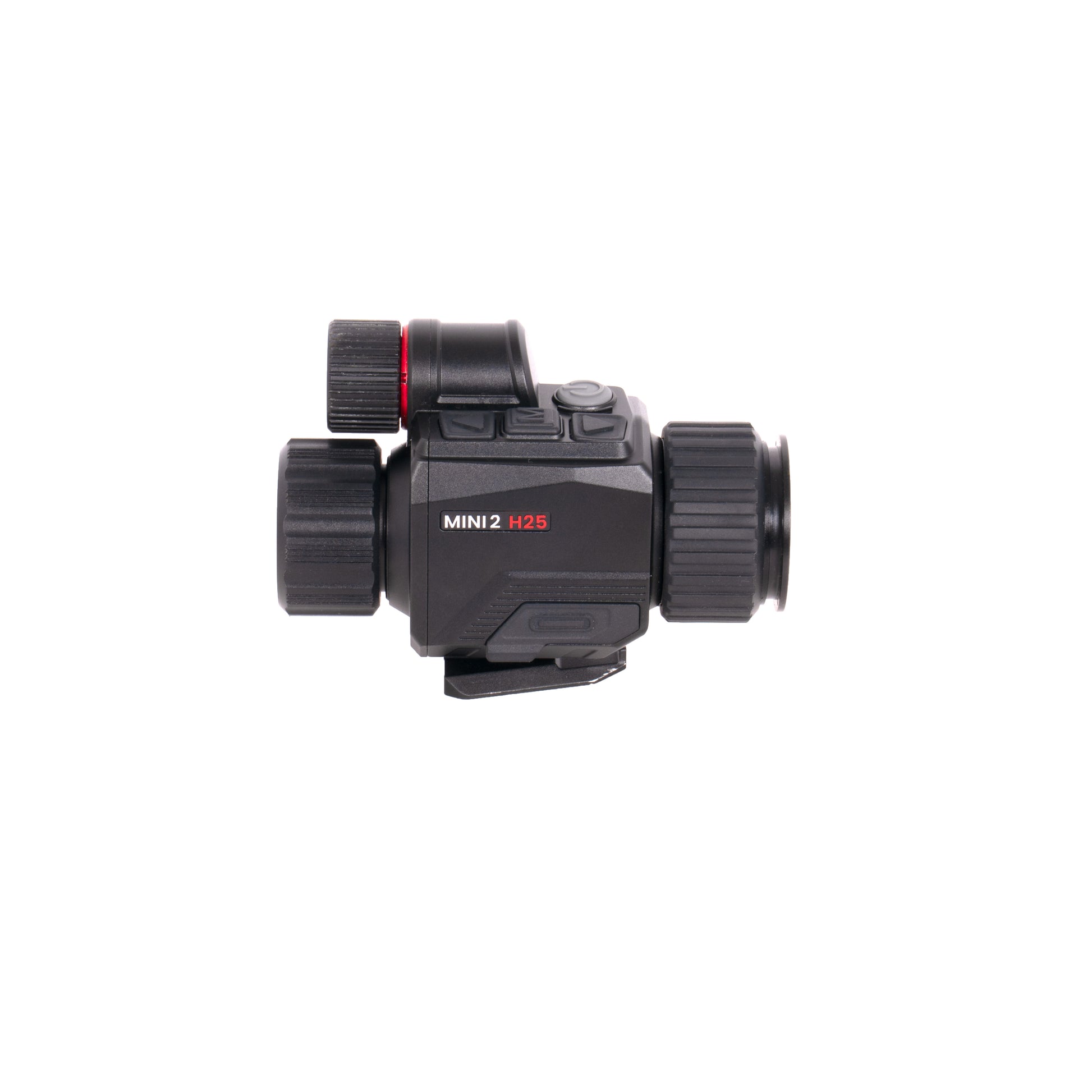

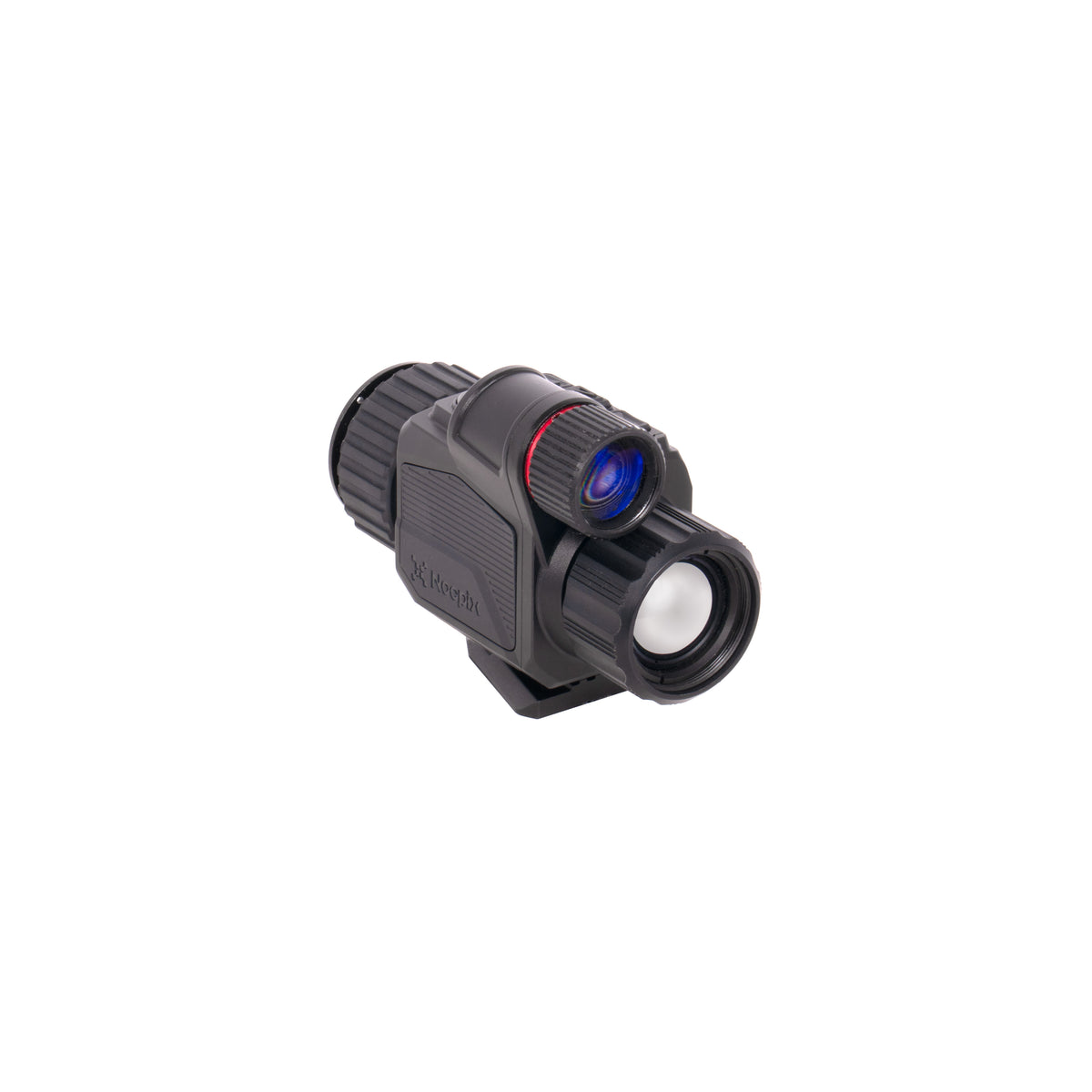

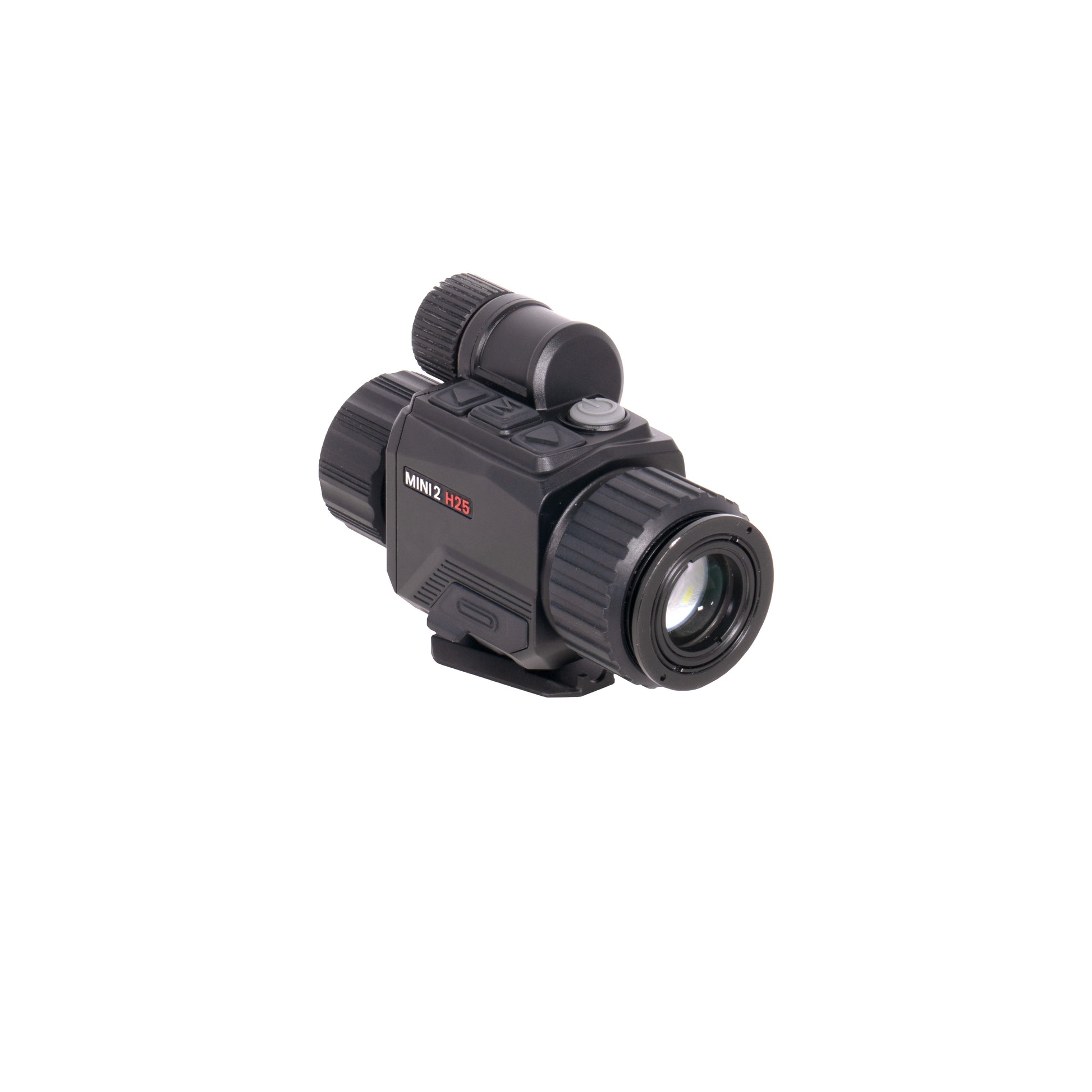

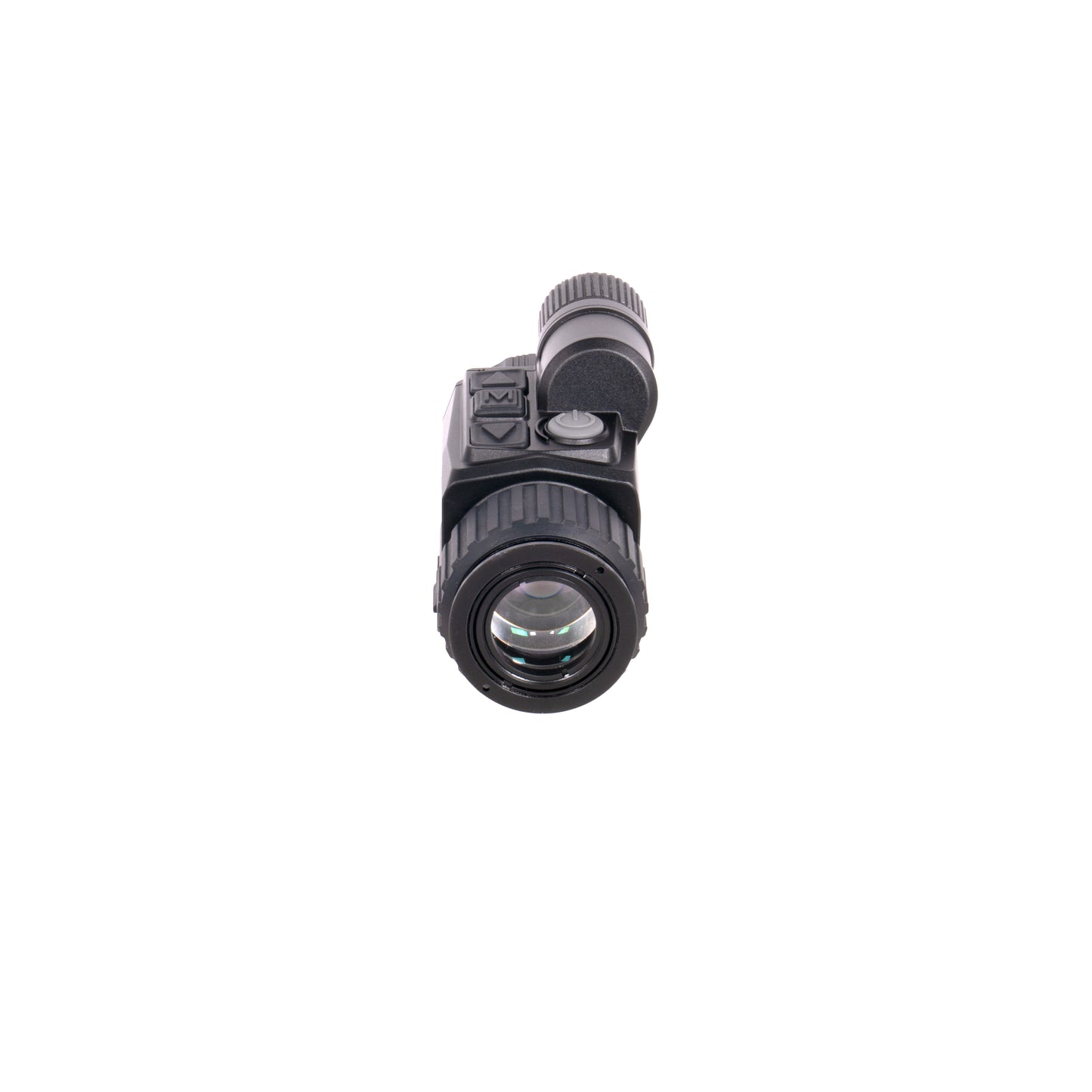

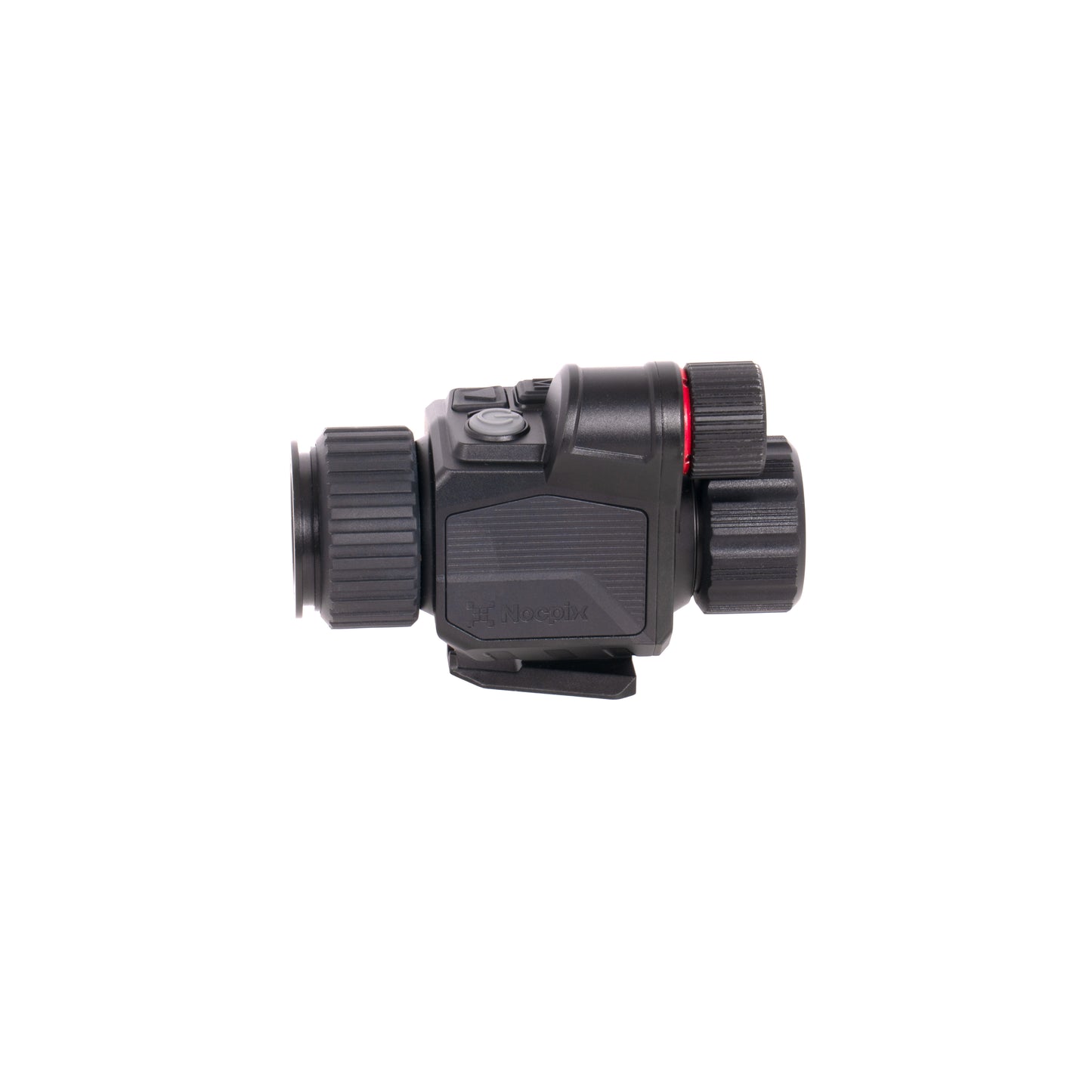

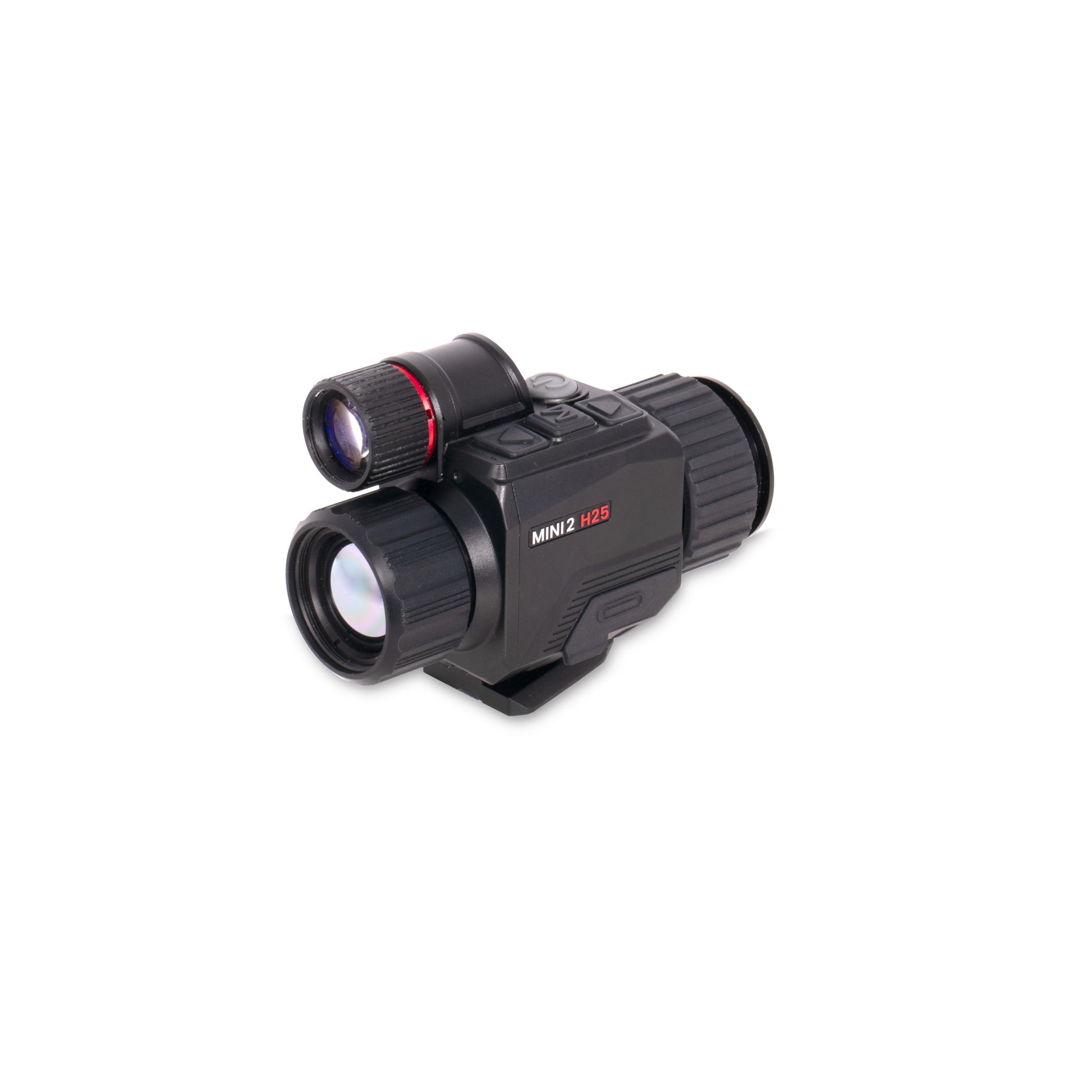

Nocpix Mini2 H25 640 Thermal, Digital Night Vision & Fusion Helmet Monocular

Quick answer

The Nocpix MINI2 H25 is a compact, true 1x monocular that combines a 640x512 thermal sensor, 960x540 digital night vision and a thermal fusion overlay in one helmet-ready device. Its integrated dovetail, 8.47-ounce body and included external helmet battery pack make it especially attractive for users who want hands-free heat detection without giving up a more recognizable view of terrain, roads, fences and structures.

Best for: Experienced hunters, ranchers, landowners, search teams and professional users who genuinely benefit from switching among thermal, digital night vision and fusion while moving or observing hands-free.

Not ideal for: Buyers who only need simple heat detection, want the lowest-cost helmet thermal or need a recoil-rated weapon sight or clip-on. The MINI2 is an observation monocular, not a riflescope or thermal clip-on.

Why choose the Nocpix MINI2 H25?

Thermal imaging and digital night vision solve different problems. Thermal makes warm animals and people stand out quickly, including in darkness and visually complicated backgrounds. Digital night vision provides a more familiar view of the surrounding scene. Fusion overlays thermal information on the digital image so the user can locate heat while retaining more environmental context.

The MINI2 H25 is most compelling when those three views solve a real problem for the user. If your only goal is lightweight helmet-mounted heat detection, a dedicated thermal such as the RIX Stride ST6 Lite is simpler and less expensive. If you want one optic that can also serve in weapon-mounted or clip-on roles, compare the iRayUSA RICO MICRO RH25 V2 instead.

Nocpix MINI2 H25 key features

• Three viewing options: Switch among 640x512 thermal, 960x540 digital night vision and thermal fusion overlay.
• High-sensitivity thermal channel: A 12-micron sensor, under-15 mK NETD rating and Reality+ image processing help preserve detail when temperature differences are small.
• Smooth helmet viewing: The 60 Hz refresh rate provides fluid motion while scanning or moving.
• True 1x base magnification: The wide 17.6 by 14.1-degree field of view is better suited to helmet use and situational awareness than a magnified thermal.
• 1280x1024 AMOLED display: A high-resolution internal display presents thermal, digital and fused images.
• Integrated dovetail: The built-in dovetail shoe simplifies connection to a compatible helmet mounting system.
• Included external battery pack: The internal battery and included helmet-mountable external pack provide more than four hours of published operating time.
• Onboard recording: Capture photos plus video with audio using 32 GB of internal storage.
• Compact aluminum housing: The monocular weighs approximately 8.47 ounces and carries an IP67 environmental rating.

Confirmed specifications

Helmet and mounting compatibility

The integrated dovetail is only one part of a complete helmet setup. You still need compatible headgear or a helmet, shroud, helmet mount and any required arm or bridge. Eye position, balance and counterweight also affect comfort and usability. Browse helmet mounts and accessories, or contact Thermal Bros before ordering if you want us to confirm the full mounting chain.

Who should buy the MINI2 H25?

• Users who want hands-free thermal detection and a digital view of the surrounding scene in one optic.
• Hunters who scan and move through mixed terrain and understand the limitations of digital night vision.
• Ranchers and landowners checking livestock, roads, gates, equipment and property after dark.
• Search and professional users who benefit from thermal, digital and fused viewing modes.

Who should probably skip it?

Skip the MINI2 H25 if you only need the lightest or least expensive way to detect heat from a helmet. A dedicated thermal can do that job with less cost and complexity. Also skip it if you need a thermal weapon sight or clip-on. The MINI2 is designed for handheld and helmet-mounted observation.

Frequently asked questions

Is the Nocpix MINI2 H25 thermal or night vision?

It is both. The device combines a 640x512 thermal channel with 960x540 digital night vision. It also provides a thermal fusion overlay.

What does fusion mode do?

Fusion mode overlays thermal information on the digital night-vision image. This helps warm subjects stand out while preserving more recognizable details from the surrounding scene.

Is the MINI2 H25 true 1x?

Yes. Its published optical magnification is 1x, which supports a wide field of view and makes it better suited to helmet-mounted observation and movement than a magnified thermal.

Does the MINI2 H25 include a helmet mount?

It has an integrated dovetail shoe and includes an external helmet-mountable battery pack, but a complete helmet mounting system requires additional compatible components. Confirm your helmet, shroud, mount, arm or bridge and balance setup before ordering.

Can the MINI2 H25 be used as a thermal riflescope or clip-on?

No. Treat it as a handheld and helmet-mounted observation monocular. Do not carry over the unrelated LRF, reticle, one-shot-zero, Picatinny mount or recoil fields currently shown in the lower portion of iRayUSA's page.

Does digital night vision replace an analog image-intensifier tube?

Not automatically. Digital night vision can add useful scene detail, but users who prioritize the natural movement, very low latency, depth cues and low-light performance of traditional analog night vision should compare the systems before buying.

Thermal Bros recommendation

The MINI2 H25 is a strong option for the specific user who wants thermal detection, digital scene detail and fusion in one lightweight helmet monocular. For most people who only need hands-free heat detection, a dedicated helmet thermal remains the simpler value. Choose the MINI2 because all three viewing modes improve the work you actually do, not simply because it has more technology.

Compare more helmet-mounted thermal monoculars, browse helmet mounts and accessories, or contact Thermal Bros for help building a compatible system.
