Vehicle-Mounted Thermal Cameras

Vehicle-Mounted Thermal Cameras for Trucks, UTVs & ATVs

Vehicle-mounted thermal cameras give hunters, ranchers and landowners a hands-free way to scan fields, roads, fence lines and large properties from a truck, UTV or ATV. Instead of holding a thermal scanner outside the window, the camera mounts externally and sends a live thermal image to a monitor, phone or tablet inside the vehicle.

For most buyers, the right system is not automatically the most expensive camera or the model with the longest advertised detection range. Start with your terrain, typical scanning distance, vehicle, mounting method and preferred display. A 384-resolution system can handle closer ranch work and occasional scanning, while a 640-resolution thermal camera is usually the better long-term choice for larger properties, open fields and buyers who use digital zoom regularly.

PTZ means pan, tilt and zoom. It describes how the camera can move and change the view, but it does not tell you whether the system includes the mount, controller, display, wiring or other equipment needed for your vehicle. Compare the entire installed system before ordering—not just the camera specifications.

What Is a Vehicle-Mounted Thermal Camera?

A vehicle-mounted thermal camera is an externally mounted thermal imaging system designed for scanning while traveling or parked in a truck, UTV, ATV or other vehicle. Depending on the model, the camera may rotate continuously, tilt vertically, zoom digitally, record video, stream wirelessly or display the image on a dedicated monitor.

These systems are especially useful for predator and hog control, livestock checks, ranch patrol, wildlife recovery, property monitoring and other situations where you repeatedly cover ground after dark.

Vehicle-mounted thermal cameras are observation and detection tools. They are not thermal rifle scopes, and they are not replacements for headlights, safe vehicle operation or positive target identification.

Why does the thermal camera mount outside the vehicle?

Standard vehicle glass blocks or reflects much of the long-wave infrared energy used by common hunting thermals. That means a handheld thermal scanner generally cannot produce a useful image through a closed windshield. Mounting the thermal camera outside the vehicle puts the sensor beyond the glass while allowing the operator to view the image from inside the cab.

Vehicle-Mounted Thermal Camera vs. Handheld Thermal Scanner

Choose a vehicle-mounted thermal camera when:

• You regularly scan large fields, pastures, roads or ranch property from a vehicle.
• You want hands-free scanning instead of holding a monocular outside the window.
• You need powered pan-and-tilt control or a wide view around the vehicle.
• You want the thermal image displayed on a larger screen, phone or tablet.
• You need a dedicated system for predator control, livestock checks, recovery work or property patrol.

Choose a handheld thermal instead when:

• You mostly scan on foot, from a blind or from several different vehicles.
• You want the lightest and simplest setup possible.
• You only use thermal occasionally.
• You want one scanner that can easily move between hunting, ranch work and travel.
• Your budget is better spent on the thermal sensor rather than mounts, displays and controls.

If portability matters more than continuous vehicle coverage, compare our Thermal Handhelds before committing to a dedicated vehicle-mounted system.

384 vs. 640 Vehicle-Mounted Thermal Cameras

384 thermal cameras: practical for closer work

A 384-resolution thermal camera can be a sensible choice for livestock checks, tighter properties, wooded roads, shorter fields and occasional vehicle-mounted scanning. It keeps the cost lower while still giving the operator a useful thermal image at practical distances.

The tradeoff is image detail. A 384 image loses detail faster when digital zoom is used and gives you less information on smaller or more distant heat signatures. Do not choose a camera based only on advertised detection range. Detecting a heat source is not the same as having enough image detail to confidently understand what produced it.

640 thermal cameras: better for larger properties and frequent use

A 640-resolution system is generally the better choice for buyers scanning larger fields, covering more acreage, watching smaller predators or using their thermal camera frequently. The additional sensor resolution provides a cleaner image and preserves more useful detail when digital zoom is applied.

That does not mean every buyer needs 640. If most of your scanning happens at relatively short distances and the system will only be used occasionally, a properly matched 384 camera may solve the problem for substantially less money.

How Lens Size Changes the View

Sensor resolution affects image detail, while the objective lens has a major effect on field of view and practical reach. A larger lens is not automatically better.

13mm lenses: wide field of view for closer terrain

A 13mm lens provides a wider view that works well around livestock areas, wooded roads, smaller properties and closer scanning distances. The wider image makes it easier to understand the scene around the vehicle, but it provides less target detail at longer range.

19mm lenses: the balanced choice for mixed terrain

A 19mm lens offers a useful middle ground between field of view and distance. It is a strong starting point for buyers who scan ranch roads, medium-sized fields, property edges and mixed terrain during the same outing.

25mm to 35mm lenses: better for open country

Longer lenses provide a narrower field of view while putting more sensor resolution on distant targets. They make more sense for open pasture, crop fields, long roads and properties where most scanning happens farther from the vehicle.

The tradeoff is the narrower view. A longer lens can feel restrictive in tighter terrain or when animals appear close to the vehicle.

Vehicle-Mounted Thermal Cameras to Compare

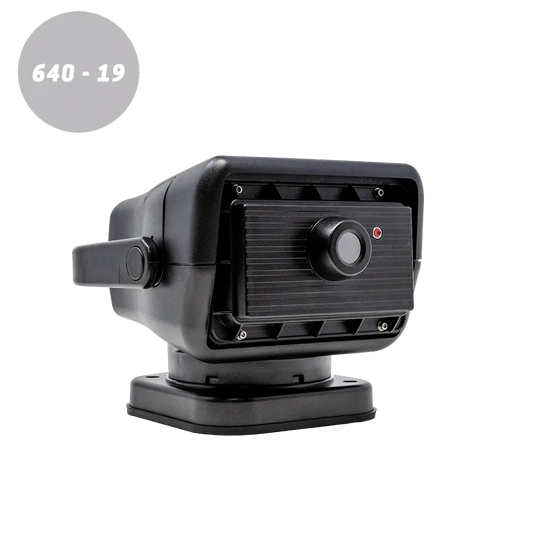

Best for most buyers: NightRide 360 Plus 640 19mm

The NightRide 360 Plus Thermal Camera 640 19mm is the most balanced option for buyers who want 640-resolution detail without moving to a long, narrow lens. The 19mm configuration makes sense for mixed terrain, ranch roads, predator control and general scanning from a truck or UTV.

Do not choose it if your normal work happens close enough that a 384 system would comfortably cover the job, or if nearly all of your scanning happens across large open fields where a longer lens makes more sense.

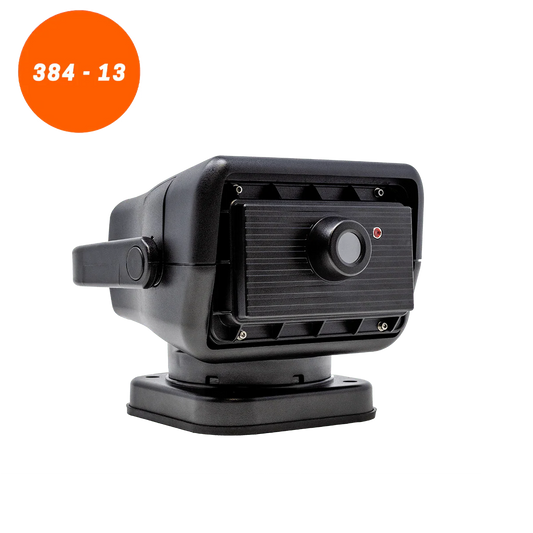

Best value for closer scanning: NightRide 360 Classic 384 13mm

The NightRide 360 Classic Thermal Camera 384 13mm is the value-focused choice for buyers who want a wide view, shorter-distance capability and a lower entry cost. It can be a practical fit for livestock checks, wooded roads, smaller properties and occasional vehicle-mounted use.

It is not the right choice if you expect 640-level detail, frequent digital zoom or consistent long-range observation across open country.

Best for long, open fields: NightRide 360 Plus HighRes 640 35mm

The NightRide 360 Plus HighRes Thermal Camera 640 35mm combines a 640 sensor with a longer lens for buyers who prioritize more distant scanning. It makes the most sense on open ranches, crop fields and long scanning lanes where reach matters more than maximum field of view.

A 35mm configuration can be overkill—and less comfortable to scan with—when most animals or property features are relatively close to the vehicle.

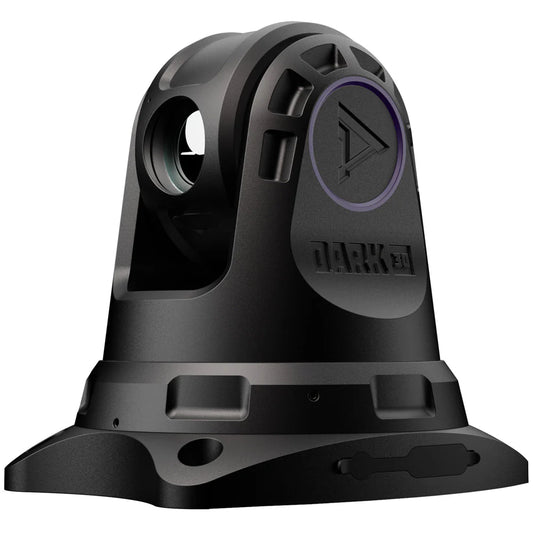

Dark 30 PTZ: dedicated 384 and 640 options

Compare the Dark 30 PTZ 384 Thermal Camera when you want a lower-cost dedicated vehicle system, or the Dark 30 PTZ 640 Thermal Camera when improved image detail and digital-zoom performance justify the additional cost.

Before ordering, confirm exactly which monitor, controller, mounting hardware, cables and power equipment are included with the configuration you select.

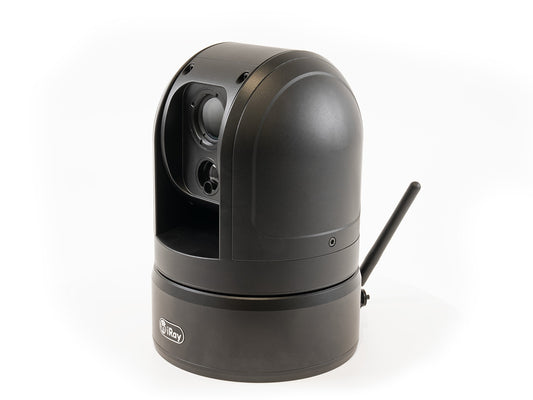

Advanced option: InfiRay M6T PTZ 640

The InfiRay M6T PTZ 640 Thermal Camera is the advanced option for serious vehicle-based scanning. Its 640 sensor, 25mm lens, laser rangefinder, recording capability and stabilization features make more sense for buyers who need a more complete observation system for large properties, predator control or frequent field use.

The M6T is more system than most occasional users need. If you do not need onboard ranging, stabilization or frequent vehicle-mounted scanning, a simpler NightRide, Dark 30 or handheld thermal may be the smarter purchase.

Buyers focused on the NightRide lineup can also browse our NightRide Thermal Cameras.

What Matters Before You Buy

Mounting method

Confirm whether the camera uses a magnetic mount, suction system, roof rack hardware or another installation method. Vehicle roof material matters. A magnetic mount will not attach directly to aluminum, composite or other non-ferrous surfaces without a compatible mounting solution.

Display and controls

Some systems use a dedicated monitor and wired controller. Others display video on a phone or tablet and may use wireless or app-based controls. Decide where the display will sit, who will operate the camera and whether a dedicated monitor or personal device is more practical for your use.

Power and cable routing

Vehicle-mounted thermal cameras need a reliable power source and safe cable management. Confirm voltage requirements, connectors, cable length and how the wiring will route around or into the cab before ordering.

Pan, tilt and camera movement

Look at how far the camera pans and tilts, whether it can rotate continuously, how quickly it responds and whether it has a home or parked position. Smooth, predictable control is more useful in the field than a long feature list that is difficult to operate.

What is actually included?

Before comparing prices, verify whether the package includes the camera, mount, controller, monitor, cables, power equipment and any vehicle-specific hardware. A lower camera price can become the more expensive system once missing components are added.

Who Vehicle-Mounted Thermal Cameras Are Best For

• Hog and predator hunters who regularly scan large areas from a vehicle.
• Ranchers checking livestock, fence lines, calving areas and predators after dark.
• Landowners patrolling roads, gates, pastures and remote property.
• Wildlife and recovery teams that need to cover ground efficiently at night.
• Buyers who want a shared thermal image visible to a passenger or team.
• Users who have outgrown holding a handheld thermal outside a vehicle window.

Who Should Not Buy One

• Buyers who mainly scan on foot or from a fixed hunting position.
• Anyone looking for a thermal rifle scope or aiming device.
• Occasional users who would be better served by a portable handheld thermal.
• Buyers who cannot safely mount, power and control the system on their vehicle.
• Anyone expecting a camera to automatically identify every distant heat signature.
• Drivers looking for a replacement for headlights or normal road awareness.

Common Vehicle-Mounted Thermal Mistakes

• Shopping by advertised detection range instead of image detail and field of view.
• Choosing a long lens for tight terrain and ending up with an uncomfortably narrow view.
• Buying a 384 system while expecting the image quality and zoom performance of a 640 sensor.
• Assuming every package includes the monitor, controller, mount and required cables.
• Failing to confirm that the mounting method works with the vehicle roof.
• Ignoring power requirements and cable routing until installation day.
• Trying to use a handheld thermal through closed vehicle glass.
• Allowing the thermal display or camera controls to distract the driver.
• Buying the most advanced system when a simpler thermal would solve the actual problem.

Why Buy a Vehicle-Mounted Thermal Camera from Thermal Bros?

Thermal Bros helps buyers compare the entire installed system—not just the sensor specification. We look at resolution, lens, field of view, vehicle, mounting method, controller, display, power requirements, terrain and budget together.

If a handheld scanner, 384 camera or shorter lens will do the job, we will tell you before you spend more than necessary. The goal is to match the equipment to how you actually use thermal, not sell you the most expensive setup.

Review the vehicle-mounted thermal cameras above, visit the Thermal Bros FAQ, or contact us for one-to-one help choosing the right system.
