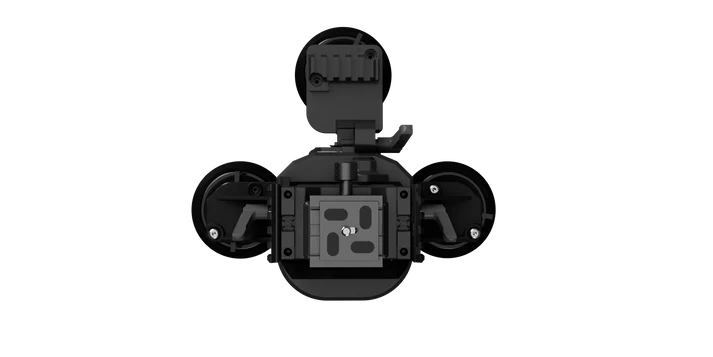

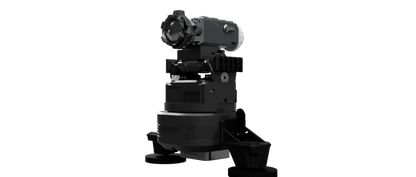

XSPECTER T-CROW Magnetic USB-C Pan-Tilt Thermal Mount

Who the T-CROW Magnetic USB-C Is Best For

• Hunters who already own a compatible thermal handheld and want to turn it into a remotely controlled scanning system instead of buying another thermal sensor.
• Hog and predator hunters scanning from a stationary truck or UTV who want to cover fields, fence lines, senderos and open ground without continuously holding a handheld.
• Ranchers, landowners and recovery teams who need controlled remote observation from a vehicle or fixed location.
• Buyers who want the best-balanced T-CROW configuration with magnetic vehicle mounting, USB-C camera power and a stabilizing third foot.
• Users who want to keep using a handheld they already trust instead of moving immediately to a completely integrated vehicle-mounted thermal system.

When It Is Probably Not the Right Buy

• You expect a thermal camera, night vision device, phone or display to be included.
• You need suction mounting, blind-mount hardware or several different mounting methods in one package.
• Your vehicle does not have a suitable ferrous steel mounting surface.
• You cannot confirm the mounting interface, weight, clearance or power compatibility of your optic.
• You primarily scan on foot and a regular thermal handheld already handles the job.
• You want the camera, controls, power and viewing system designed together as one complete package. In that case, compare our vehicle-mounted thermal camera systems.

What the T-CROW Magnetic USB-C Is—and What It Is Not

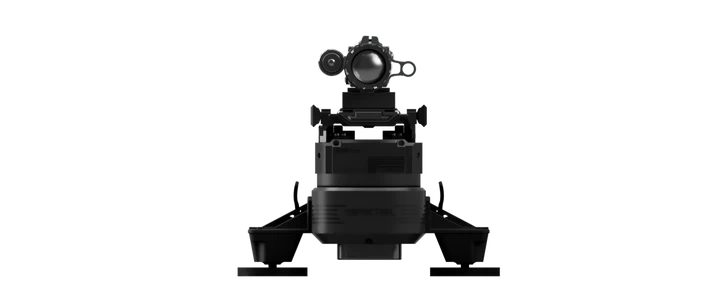

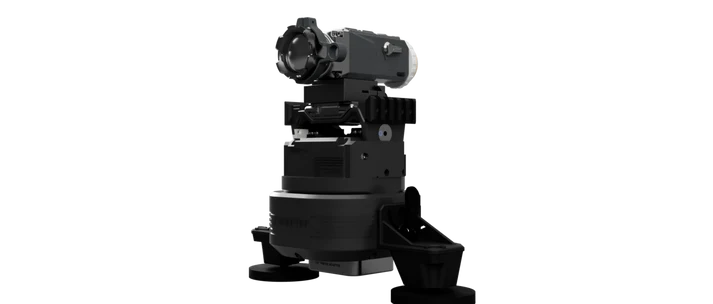

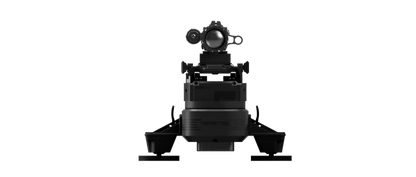

The XSPECTER T-CROW is a motorized two-axis carrier for compatible thermal imaging cameras, night vision devices and other suitable handheld optics. The current system provides a 360-degree pan range and approximately 55 degrees of tilt, allowing the attached optic to scan an area while you control its direction remotely.

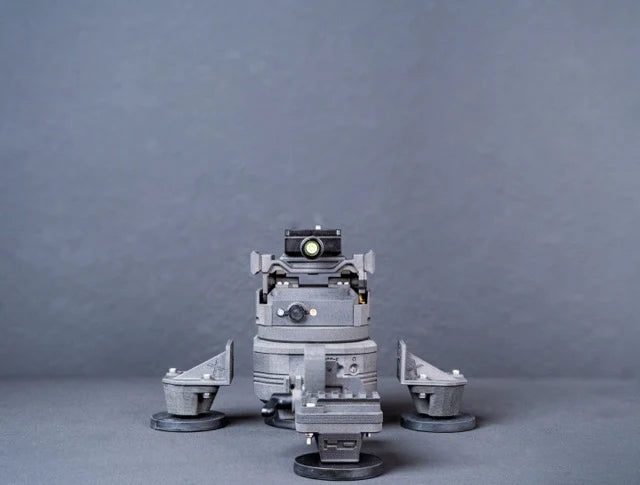

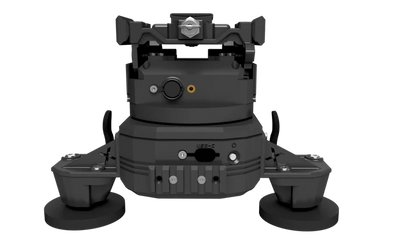

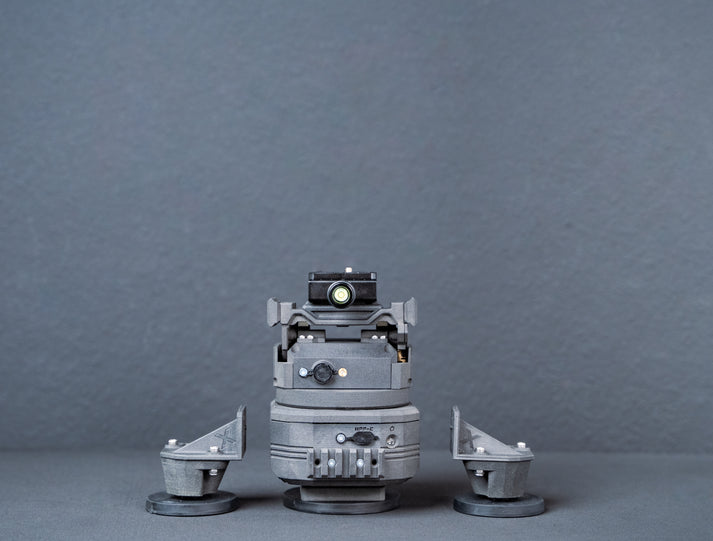

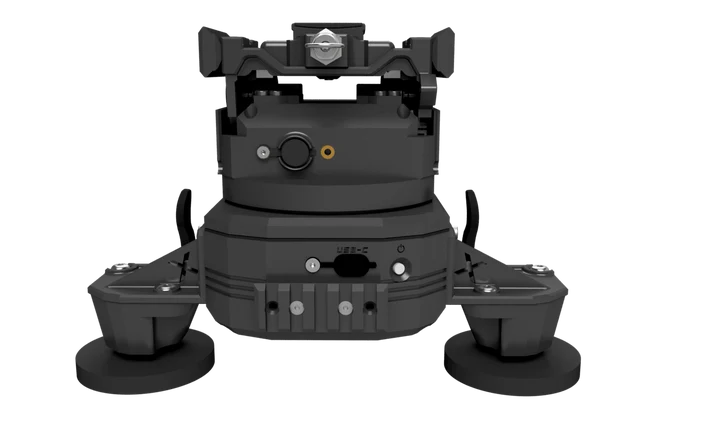

The Magnetic USB-C configuration sold by Thermal Bros combines an angle-adjustable magnetic base, USB-C output for a compatible handheld, third stabilizing foot and the current metal-gear T-CROW platform.

It is not a thermal camera. The T-CROW does not contain a thermal sensor and does not improve the sensor resolution, detection range or image quality of the optic mounted to it.

It does not automatically control every function of your optic. The T-CROW controls where the optic points. Zoom, focus, color palettes, recording and other camera functions depend on the attached device and its own controls or supported app.

It does not automatically create a live video feed. If you want to watch the thermal image on a phone or tablet, the attached optic must provide a compatible streaming method.

How the System Works

1. Place the T-CROW on a clean, suitable ferrous steel mounting surface while the vehicle is stationary.
2. Adjust and secure the magnetic mounting system and stabilizing third foot.
3. Attach a compatible thermal or night vision handheld to the camera adapter.
4. Check the balance and make sure the optic, lens, eyecup, focus ring and cables have enough clearance for movement.
5. Connect the T-CROW to the Remote Control 2.0 or supported XSPECTER app.
6. If desired, connect the USB-C output to a compatible handheld after verifying the optic's power requirements.
7. Use the system from a stationary observation position to pan and tilt the attached optic remotely.

If you want help confirming a specific optic before ordering, contact Thermal Bros with the exact brand and model.

T-CROW Magnetic USB-C vs. Elite vs. PRO 2

Thermal Bros recommendation: Start with the T-CROW Magnetic USB-C unless you can identify a specific Elite or PRO 2 feature that your setup actually requires.

Compare all XSPECTER T-CROW systems available from Thermal Bros.

Compatibility: Check These Six Things Before Ordering

The T-CROW is designed to work with a wide range of thermal imaging and night vision handhelds, but that does not mean every device will work correctly in every configuration. Verify the complete setup before buying.

1. Camera attachment: confirm that your exact optic can attach securely to the supplied camera adapter. Do not assume that every handheld with a tripod thread will balance correctly on the carrier.
2. Total installed weight: the current metal-gear T-CROW is listed for a maximum payload of approximately 7.7 lb (3.5 kg). Count the optic, adapter, USB-C cable and any other attached accessories in the total.
3. Movement clearance: make sure the objective lens, eyecup, focus ring, buttons and cables will not strike the carrier or mounting surface during movement.
4. USB-C compatibility: having a USB-C connector does not automatically mean the optic and T-CROW are electrically compatible. Confirm voltage, current, charging behavior, cable requirements and whether the optic can operate normally while receiving external power.
5. Live-video support: if you want to view the image on a phone or tablet, confirm that your optic supports a compatible video stream. The T-CROW moves the camera; it does not add video streaming to an optic that lacks it.
6. Vehicle roof material: the Magnetic USB-C configuration requires a suitable ferrous steel surface. The magnets will not attach to aluminum, fiberglass, carbon fiber, plastic or other non-magnetic body panels.

Choosing a Thermal or Night Vision Device

If you do not already own the imaging device, browse our thermal handhelds or night vision optics.

Before buying both a new handheld and a T-CROW, compare the total system cost with a complete vehicle-mounted thermal camera system. A T-CROW makes the most sense when reusing a compatible handheld provides a real advantage.

Magnetic Mounting, USB-C Power and Controls

Angle-Adjustable Magnetic Mount

The Magnetic USB-C configuration uses an angle-adjustable magnetic base designed for suitable ferrous steel surfaces. The adjustable mounting system helps the carrier sit correctly on suitable vehicle surfaces that are not perfectly horizontal.

The included third stabilizing foot provides additional support for the configured system.

Do not assume every vehicle roof is magnetic. Many modern vehicles use aluminum, composite, fiberglass or other non-ferrous panels. Test and verify the intended mounting surface before relying on a magnetic installation.

Prepare the Mounting Surface

Before installation, make sure the mounting surface and magnetic feet are clean and free of dirt, grit, moisture and other contamination. Foreign material between the magnet and vehicle can reduce holding performance and can damage the vehicle finish.

After positioning the system, verify the attachment before operation. Recheck the mounting system whenever the T-CROW is removed and reinstalled.

USB-C Camera Power

This Thermal Bros configuration includes USB-C output for a compatible attached handheld. That can reduce dependence on the optic's internal battery during longer observation sessions.

USB-C connector shape alone does not guarantee electrical compatibility. Verify the exact camera's voltage, current, charging protocol and operation-while-powered behavior before relying on the T-CROW as an external power source.

Remote and App Control

The system includes XSPECTER Remote Control 2.0 and can also work with supported XSPECTER app functions. The carrier provides pan-and-tilt control while supported camera streaming depends on the attached optic.

Important Operating and Safety Considerations

Follow the current XSPECTER instructions supplied with the system. The manufacturer specifically calls for stationary observation and proper mounting inspection.

• Mount the T-CROW while the vehicle is stationary.
• Use the system for stationary observation.
• Do not use the T-CROW on public roads.
• Clean and dry the mounting surface before installation.
• Inspect the mounting hardware and camera attachment before every use.
• Keep hands, clothing and foreign objects away from moving components.
• Do not operate the system underwater.
• Dry and clean the T-CROW after exposure to rain, snow or other poor weather conditions.
• Use the supplied charging cable and appropriate approved power equipment.

Vehicle-equipment, hunting and road-use regulations vary by location. Make sure your installation and use comply with applicable laws and regulations.

XSPECTER T-CROW Magnetic USB-C Specifications

Manufacturer specifications and package contents can change. Confirm the current Thermal Bros product configuration and manufacturer documentation before purchase.

What Is Included

• XSPECTER T-CROW current metal-gear platform
• Angle-adjustable magnetic mounting configuration
• Third stabilizing foot
• USB-C camera power output configuration
• Universal camera adapter
• XSPECTER Remote Control 2.0
• Charging cable

Not included: thermal camera, night vision device, phone, tablet or vehicle display.

Verify the final Thermal Bros package contents before ordering because manufacturer configurations and included accessories can change.

Common Buying and Setup Mistakes

• Assuming the thermal camera is included: the T-CROW is the motorized carrier. You supply the compatible thermal or night vision device.
• Assuming every vehicle roof is magnetic: aluminum, fiberglass, carbon fiber, plastic and other non-ferrous panels will not hold a magnetic base.
• Checking payload but ignoring balance: an optic can be under the weight limit and still perform poorly if it is mounted incorrectly or badly balanced.
• Ignoring physical clearance: the lens, focus control, eyecup or USB-C cable can collide with the carrier even when the optic is under the payload limit.
• Assuming USB-C means automatic compatibility: confirm voltage, current, cable requirements and whether the camera can operate while externally powered.
• Assuming the T-CROW creates a video feed: the attached optic must support the live-view or streaming method you intend to use.
• Buying more system than you need: the Elite and PRO 2 have real advantages for specific users, but the Magnetic USB-C is the better starting point for most buyers.
