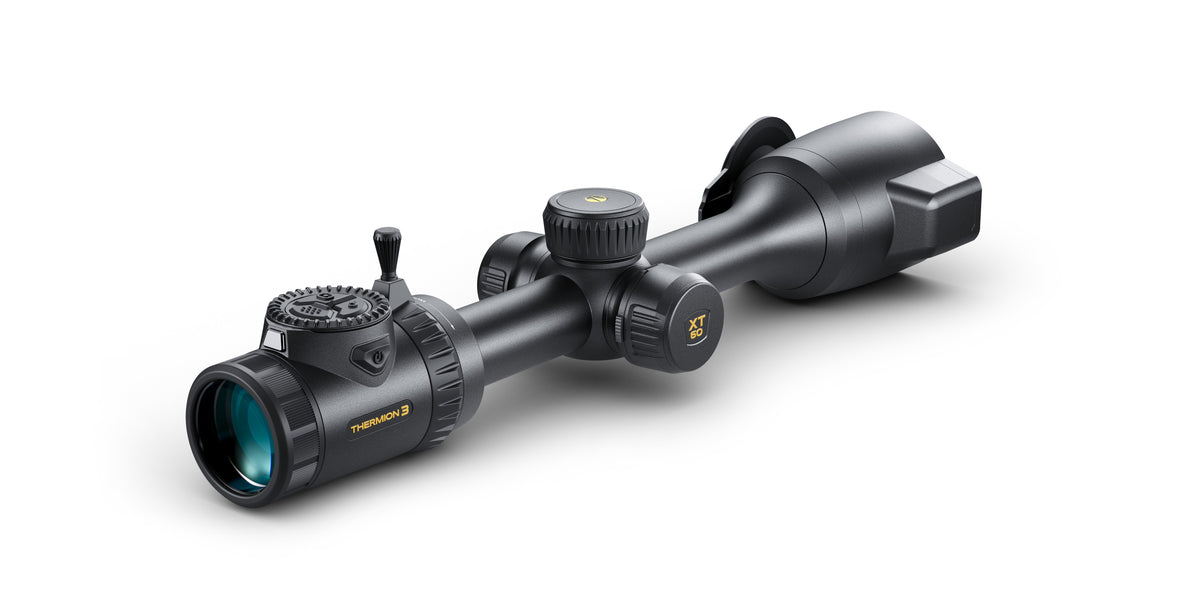

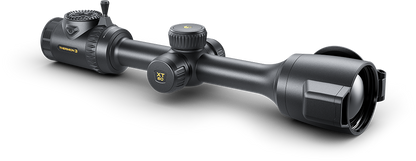

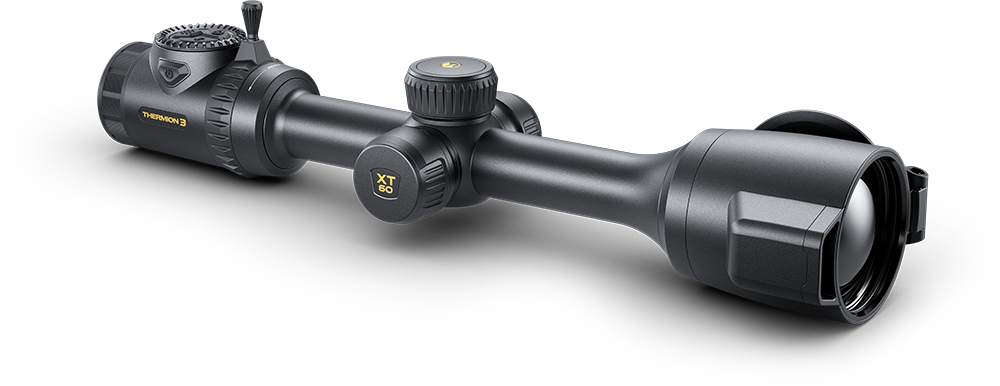

Pulsar Thermion 3 LRF XT60: A Wider View With a 1280 Sensor

The Pulsar Thermion 3 LRF XT60 pairs a 1280x1024, 12 µm sensor with 2–24x magnification, a 60mm f/1.0 lens, and a 14.6° horizontal field of view. It is the wider-view option in the Thermion 3 launch pair, with integrated laser ranging up to approximately 1,312 yards.

The strongest reason to choose XT60 is its combination of a lower starting magnification and broader scene coverage. Its horizontal view is twice the XR60’s published angle. That is useful to compare when you want more surrounding terrain in the image, but it does not establish a particular identification distance or a measured image-quality advantage.

Who Is the Thermion 3 XT60 Best For?

• Buyers who deliberately want a 2x starting view and broader scene coverage.
• Experienced hunters comparing a 1280-class sensor in a traditional riflescope format.
• Users who value integrated ranging and ballistic profiles across varied observation distances.
• Buyers who have established a practical reason to move beyond a less expensive thermal.

When Another Scope May Fit Better

The Thermion 3 LRF XR60 costs less at the supplied launch pricing and has longer rated runtime, with a tighter 4x starting view.

A less expensive scope may also meet your needs if you will not use the XT60’s viewing format. Compare the full Pulsar collection before buying solely for the larger sensor.

Integrated Laser Rangefinding and Ballistic Support

The built-in laser rangefinder measures up to approximately 1,312 yards and supports single measurement, scanning, and True Horizontal Distance modes.

The ballistic calculator uses the selected profile and measured range to display corrections and a Suggested Point of Aiming. Correct profile inputs and verification still matter. A range reading does not establish target identification or a suitable shooting distance.

Recording and the Pulsar App Ecosystem

Stream Vision 2 supports connected media and device functions, while Stream Vision Ballistics supports individual ballistic profiles and transfer to the scope.

The recorder provides 128 GB of internal memory, video with sound, photos, Shadow Recording, and recoil recording. Pulsar’s creator brief lists 1280x960 media output, which is separate from the XT60’s 1280x1024 thermal sensor and 2560x2560 display.

Controls and Power for the Complete Setup

Thermion 3 uses top-turret focusing accessible from either side, a riflescope-style zoom encoder, horizontal menu navigation, and a 30mm mounting tube.

Confirm suitable rings, clearance, eye relief, and the complete mounting configuration before ordering. A matching tube diameter alone does not establish that an existing mount is the correct fit.

The internal battery is user-replaceable, alongside a replaceable battery. Follow the current manual for replacement and charging. The published operating-time rating is up to 8.5 hours; actual runtime varies with conditions and enabled functions.

Pulsar Thermion 3 LRF XT60 Specifications

Thermion 3 XT60 Frequently Asked Questions

Is the XT60 thermal sensor 1280x1024 or 1280x960?

The thermal sensor is 1280x1024. The creator brief separately lists 1280x960 media recording output. Sensor, display, and recording resolutions describe different parts of the system.

How does the XT60 view compare with XR60?

XT60 starts at 2x with a 14.6° horizontal view. XR60 starts at 4x with a 7.3° view. Compare the scene coverage you need before choosing by maximum zoom.

Does the rangefinder work with ballistics?

Yes. The integrated calculator uses the selected profile and measured range to display corrections and a Suggested Point of Aiming. Inputs and the completed setup need verification.

How long is the published battery life?

The supplied operating-time rating is up to 8.5 hours. It is a scope rating, not a stated figure for each separate battery. Actual runtime varies with conditions and feature use.

Is this a thermal clip-on?

No. It is a dedicated thermal riflescope with a 30mm mounting tube.

Is it automatically the best choice for every hunter?

No. Compare your preferred starting magnification, scene coverage, complete setup weight, budget, and whether the extra capability will be useful.

Get Help Choosing the Right Thermion

Use the XR60 vs XT60 comparison and Thermion 3 upgrade guide. For the connected functions, read Thermion 3 rangefinding, ballistics and recording explained.
