Pulsar Thermion 3 LRF XR60: A Tighter View With Integrated Ranging

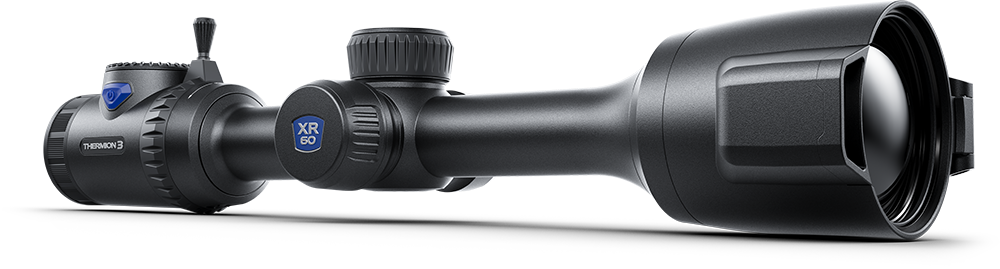

The Pulsar Thermion 3 LRF XR60 is a premium thermal riflescope with a 640x480, 12 µm sensor, 4–40x magnification, and a 60mm f/1.0 lens. Its 7.3° horizontal field of view gives it a more magnified starting view than the XT60. The built-in laser rangefinder measures distances up to approximately 1,312 yards.

Choose the XR60 because its starting magnification and viewing format fit your use. It is an option for hunters who prefer a tighter view in open terrain, with onboard ranging and ballistic support. The 40x maximum is a zoom specification, not a promise of identification detail or an appropriate shooting distance.

Who Is the Thermion 3 XR60 Best For?

• Buyers who specifically prefer a 4x starting view.
• Hunters comparing integrated rangefinding and ballistic-profile support.
• Users who value the longer published runtime of the two Thermion 3 launch models.
• Buyers who want a traditional 30mm riflescope format with modern thermal functions.

When Another Scope May Fit Better

If broad scene coverage or close-cover framing is your priority, compare the Thermion 3 LRF XT60 with its 2x starting magnification and wider view.

If you do not need a premium rifle-mounted thermal, compare the broader thermal riflescope collection before committing to this price tier.

Integrated Laser Rangefinding and Ballistic Support

The built-in laser rangefinder measures up to approximately 1,312 yards and supports single measurement, scanning, and True Horizontal Distance modes.

The ballistic calculator uses the selected profile and measured range to display corrections and a Suggested Point of Aiming. Correct profile inputs and verification still matter. A range reading does not establish target identification or a suitable shooting distance.

Recording and the Pulsar App Ecosystem

Stream Vision 2 supports connected media and device functions, while Stream Vision Ballistics supports individual ballistic profiles and transfer to the scope.

The recorder provides 128 GB of internal memory, video with sound, photos, Shadow Recording, and recoil recording. Pulsar’s creator brief lists 1280x960 media output, which is separate from the thermal sensor and display resolutions.

Controls and Power for the Complete Setup

Thermion 3 uses top-turret focusing accessible from either side, a riflescope-style zoom encoder, horizontal menu navigation, and a 30mm mounting tube.

Confirm suitable rings, clearance, eye relief, and the complete mounting configuration before ordering. A matching tube diameter alone does not establish that an existing mount is the correct fit.

The internal battery is user-replaceable, alongside a replaceable battery. Follow the current manual for replacement and charging. The published operating-time rating is up to 14 hours; actual runtime varies with conditions and enabled functions.

Pulsar Thermion 3 LRF XR60 Specifications

Thermion 3 XR60 Frequently Asked Questions

What is the difference between XR60 and XT60?

XR60 has a 640x480 sensor, 4–40x magnification, and a 7.3° horizontal view. XT60 has a 1280x1024 sensor, 2–24x magnification, and a 14.6° view. Choose by viewing needs and total cost rather than maximum zoom alone.

Is the NETD figure a sensor-only rating?

The supplied specification is system NETD below 18 mK. Keep it labeled as system NETD when comparing other products.

Does it mount in 30mm rings?

The dealer announcement specifies a 30mm mounting tube. Confirm ring height, clearance, eye relief, and package contents for the complete setup.

How long is the published battery life?

The supplied rating is up to 14 hours of scope operating time. It is not a stated runtime for each separate battery. Conditions and enabled functions affect actual use.

Does the detection rating mean I can identify an animal at that distance?

No. Detection and identification are different tasks. The approximately 3,390-yard detection figure is not an identification or shooting-distance guarantee.

Is launch-day delivery guaranteed?

No. Check current allocation and fulfillment timing with Thermal Bros before ordering, especially if you need the optic for a particular date.
