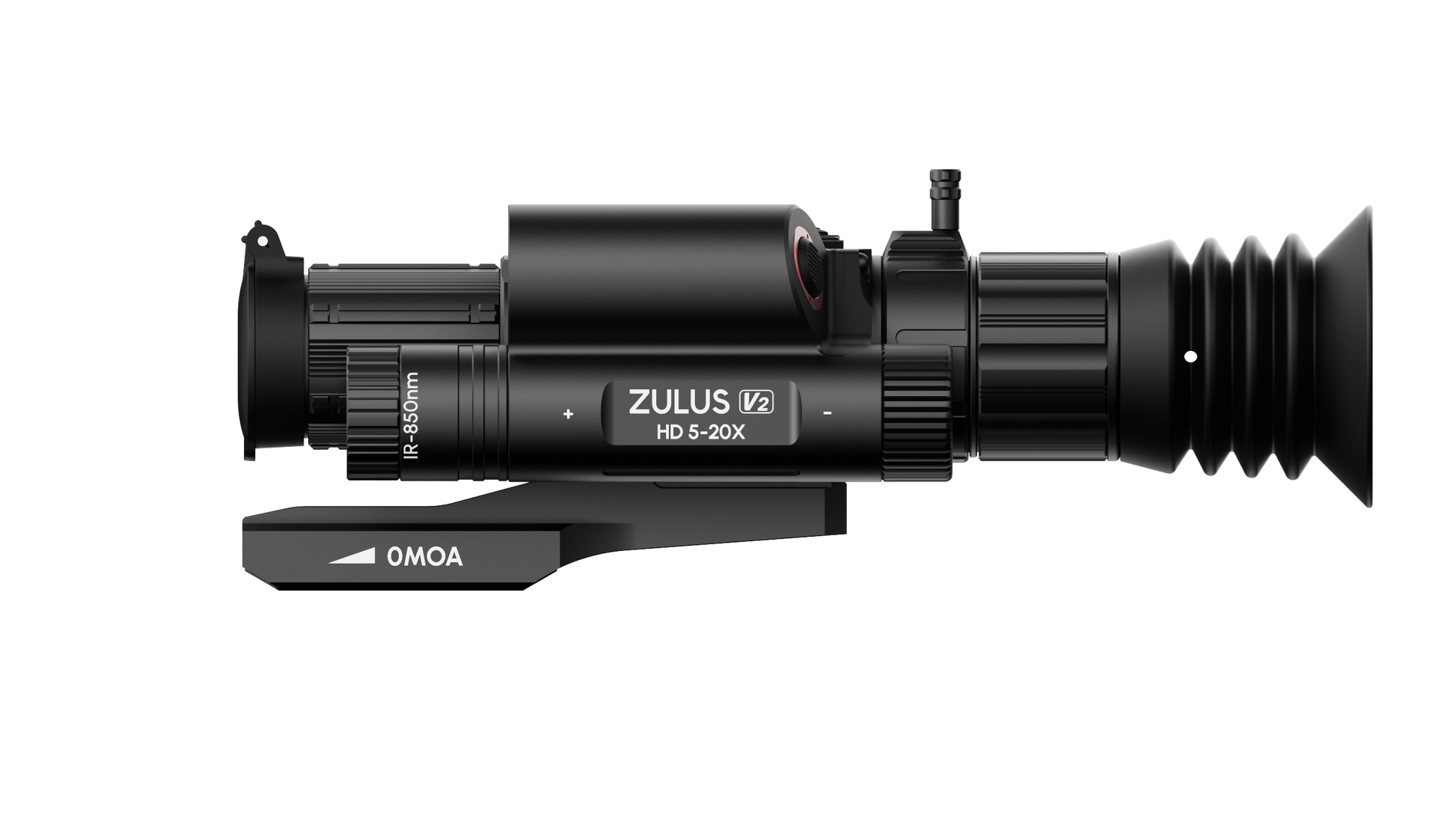

DNT Zulus ZHD520R-V2 Digital Night Vision Scope with Laser Rangefinder

The DNT ZULUS ZHD520R-V2 is the top configuration in DNT's digital day-and-night lineup: 5x to 20x magnification with a laser rangefinder and ballistic calculator built in. Distance readings reach 1,100 yards and holdover corrections appear in the same sight picture. A Sony STARVIS 2 sensor behind ED glass keeps the image working from midday through full dark on one zero.

Ranging to 1,100 yards pairs with 20x reach on the DNT ZULUS ZHD520R-V2

Two capabilities meet in the ZHD520R-V2 that the rest of the ZULUS lineup splits between models. Magnification runs 5x through 20x, the longest reach DNT offers in this series. A laser rangefinder measures out to 1,100 yards, and a ballistic calculator turns that measurement into a corrected hold. Reaching far enough to see a distant target and knowing exactly how distant it is are two different problems, and this is the only ZULUS V2 that solves both.

Distance readings on the ZHD520R-V2 come from a laser, not a guess

Estimating range is unreliable at any distance and gets worse as the target gets further away or the light gets thinner. The rangefinder in the ZHD520R-V2 measures from 5 to 1,100 yards and puts the number in the display without lowering the rifle. On a scope built for long sight lines, that measurement is the difference between a considered shot and an educated guess.

Holdover arrives with the range reading on the ZHD520R-V2

A measured distance still leaves the drop calculation unfinished. The built-in ballistic calculator takes the range from the ZHD520R-V2, applies the profile stored for the rifle and load in use, and returns the corrected hold on screen alongside the number. Profiles are configured on the device or fine-tuned in the DNT App, and separate profiles cover separate rifles.

The ZHD520R-V2 works in daylight as well as full dark

Dedicated night optics come off the rifle at sunrise. This one stays put. A Sony STARVIS 2 CMOS sensor and ED glass lenses produce a usable daylight image, carry through dawn and dusk, and hand off to digital night vision when the light goes. One zero holds across all of it, and the rangefinder works the entire time. That day-into-dark range is the practical difference between a digital scope and a thermal optic, which reads heat and looks the same at any hour.

Digital zoom to 20x asks the most of the ZHD520R-V2 sensor and display

Magnification on this scope is digital rather than optical, working against a 1920 by 1080 sensor and a matching Micro-OLED display running at 60 Hz. The top of the zoom range demands the most from both, which is why image quality is at its best lower in the range — true of any digital scope, and worth knowing before buying one for maximum magnification alone. Peak display brightness of 1,800 nits across five levels keeps range and holdover figures legible in direct sun.

Hands-free recording captures ZHD520R-V2 shots without a button press

Auto RAV saves ten seconds either side of every shot with nothing to press. Manual RAV does the same on a long press, adding ten seconds per tap up to two minutes. A short press starts loop recording in clips of up to five minutes. A noise-reducing microphone records sound, footage saves at 1800 by 1080, and 32 GB of built-in storage holds it all without a memory card.

Ten hours of runtime come from a 21700 cell in the ZHD520R-V2

DNT moved the V2 generation to a higher-capacity 21700 battery, reaching up to 10 hours of runtime. Two cells and a charger ship in the box, and a 5V USB-C port takes an external bank for stationary sits that run longer. Ranging, ballistics, recording, and the display all draw from that same cell, so the capacity increase matters more on this configuration than on a plain scope.

At 19.1 oz the ZHD520R-V2 is the heaviest scope in the ZULUS V2 lineup

Weight on the ZHD520R-V2 comes to 19.1 oz across 6.4 by 3.0 by 2.1 inches, roughly 2 oz more than the same scope without a rangefinder. Eye relief of 65 mm keeps the eyepiece safely back under recoil, and a diopter adjustment of plus or minus 3 dioptres brings the display into focus for the individual eye. Hunters counting ounces on a lightweight rifle should weigh the rangefinder against that cost.

Distance shooters who want ranging built in choose the ZHD520R-V2

Hunters working long lanes, open pasture, and field edges are the core fit for the ZHD520R-V2, where 20x reach and a measured range work together on the same shot. Coyote and hog hunting at the far end of a property suits this configuration better than any other in the series. Hunters who scan a lot of ground or follow moving targets should take the wider 3-12x ZHD312R-V2, and anyone who ranges separately or not at all saves money and 2 oz with the standard ZHD520-V2.

FAQ

How far does the DNT ZULUS ZHD520R-V2 rangefinder measure?

The ZHD520R-V2 rangefinder measures from 5 to 1,100 yards. Readings appear in the display without lowering the optic or reaching for a separate device.

What is the difference between the ZHD520R-V2 and the ZHD520-V2?

The ZHD520R-V2 adds a laser rangefinder and a ballistic calculator, and weighs 19.1 oz against 17.0 oz. Both models share the same 5x to 20x magnification, Sony STARVIS 2 sensor, display, battery, and recording system.

What is the difference between the ZHD520R-V2 and the ZHD312R-V2?

Magnification. The ZHD520R-V2 runs 5x to 20x for longer sight lines, while the ZHD312R-V2 runs 3x to 12x with a wider frame for scanning. Both carry the same rangefinder reaching 1,100 yards, the same ballistic calculator, and the same sensor and display.

Is the magnification on the ZHD520R-V2 optical or digital?

Digital. The ZHD520R-V2 magnifies from 5x to 20x digitally against a 1920 by 1080 sensor and display. Image quality is at its best lower in the zoom range, as on any digital scope.

Is the ZHD520R-V2 a thermal scope?

No. The ZHD520R-V2 is digital night vision, which amplifies available light. Thermal optics read heat instead and work in total darkness without illumination, but do not produce a daylight image the way this scope does.
