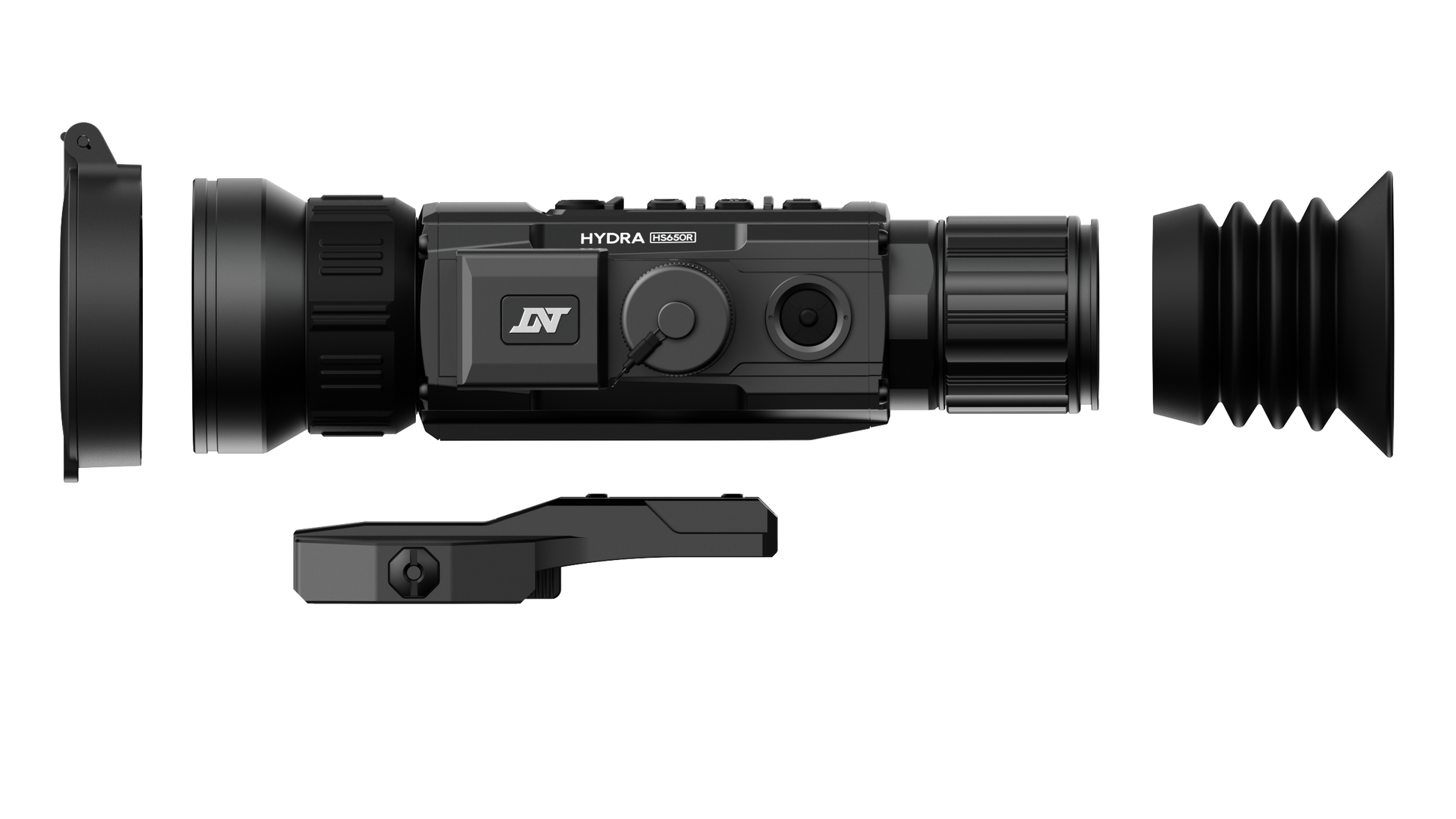

DNT Hydra-LRF HS650R Multi-Function 640 Thermal Scope

The DNT HYDRA-LRF HS650R is a multi-function thermal riflescope with a laser rangefinder and ballistic calculator built into the housing. A 50 mm objective lens and 640×512 sensor make it the longest-lens, highest-magnification model in the HYDRA line, framing 15.4 yards at 100 yards from a 2.5x starting magnification. Like every HYDRA, it also clips on ahead of a day scope and comes off the rifle as a handheld scanner.

The DNT HYDRA-LRF HS650R tops the line with a 50 mm lens and built-in ranging

Four separate purchases collapse into the HS650R: a thermal riflescope, a clip-on, a handheld scanner, and a laser rangefinder with ballistic math behind it. Standalone on a Picatinny rail, the unit aims through its own reticle. Ahead of a day optic, it feeds thermal into glass already zeroed on the rifle. Off the rifle, it scans by hand, though at 18.2 oz this is the heaviest handheld in the series. An included QDM150 quick detach mount moves it between all three positions without re-zeroing.

Fifty millimeters of glass narrows the HS650R frame to 15.4 yards for distance work

Framing 15.4 by 11.5 yards at 100 yards, the HS650R shows less ground at once than the 35 mm HS635R and puts more of the sensor on whatever sits at the center. A 2.5x base magnification starts closer than any other model in the line, and digital zoom carries to 10x. Tighter framing suits hunters whose shots come at the far end of their sight lines rather than those sweeping wide for movement.

Range readings arrive in the HS650R sight picture out to 1,200 yards

Depth cues flatten in a thermal image, and distance across open country is the hardest thing to judge at night. A press of the range button on the HS650R returns the measured number, anywhere from 5 to 1,200 yards, without lowering the rifle or reaching for a handheld unit. Long shots start with the real distance rather than an estimate.

Drop compensation follows every HS650R range reading

A measured distance still leaves the holdover unresolved on its own. The DNT Ballistic Engine takes the range from the HS650R, applies the saved profile for the rifle and load in use, and returns the corrected hold on screen beside the number. Profiles are built on the device or through the DNT App, with several stored for different rifles and loads.

A 640×512 array holds detail where the HS650R is pointed

A 640 sensor means a 640×512 pixel array, roughly three times the pixel count of a 384×288 array. Pixels are what keep detail intact at distance, which is where identifying an animal gets difficult. The HS650R runs that sensor at 50 fps behind a 1024×768 Micro-OLED display, pairing the highest sensor class in the line with its longest lens.

Digital zoom to 10x rides on ISR processing in the HS650R

DNT's Image Super Resolution (ISR) recovers detail that digital zoom normally softens, and the 10x ceiling on the HS650R is the highest in the line. Zoomed images hold edges and texture better than raw digital magnification alone. ISR is image processing rather than added sensor resolution — the HS650R is a 640×512-class optic and should be judged as one.

Runtime holds at four hours per cell in the HS650R

A single 18650 flat-top battery runs the HS650R for up to 4 hours, and two cells plus a charger ship in the box. Swapping to the spare covers a full night, and a 5V USB-C port accepts an external battery bank for long stationary sits. DNT specifies flat-top cells measuring 65 mm by 18 mm, and protected cells run longer and will not fit the compartment.

Profile edits sync from phone to HS650R over Wi-Fi

Pairing the HS650R with the DNT App brings live viewing, recording management, and ballistic profile editing onto a smartphone. Built-in 32 GB memory holds footage captured in the field with no card to buy. Changes made in the app carry back to the device, so load data stays current without menu work on the optic.

Distance-first hunters who want ranging built in land on the HS650R

Hunters whose shots come at the far end of open fields and ridgelines are the core fit for the HS650R, where the 50 mm lens and 2.5x starting magnification hold detail furthest out and ranging reaches as far as the optic sees. Coyote and hog work across long sight lines benefits most from that pairing. Hunters who scan wide and shoot closer should look at the 35 mm HS635R, and anyone with no use for a rangefinder saves real money with the standard HS650.

FAQ

What is the difference between the DNT HYDRA-LRF HS650R and the HS650?

The HS650R adds an integrated laser rangefinder and the DNT Ballistic Engine, at 1.3 oz more weight. Optically the two are identical: the same 640×512 sensor, 50 mm lens, 2.5x base magnification, and 15.4 by 11.5 yard field of view.

How far does the HS650R rangefinder measure?

The HS650R rangefinder measures from 5 to 1,200 yards. Readings appear in the sight picture without lowering the optic or reaching for a separate device.

What is the difference between the HS650R and the HS635R?

Both use the same 640×512 sensor and the same rangefinder. The HS650R has a 50 mm lens, 2.5x base magnification, and a 15.4 yard field of view for tighter framing at distance. The HS635R has a 35 mm lens, 1.5x base magnification, and a wider 21.9 yard frame for scanning.

How heavy is the HS650R?

The HS650R weighs 18.2 oz and measures 8.4 by 2.7 by 2.2 inches, making it the largest and heaviest model in the HYDRA line. The 50 mm objective lens and rangefinder module account for the added size.

Does the HS650R come with a mount?

Yes. A QDM150 quick detach mount is included, along with two 18650 batteries, a charger, an eye cup, a flip-up lens cover, two USB cables, a user manual, a quick start guide, and a lens cleaning cloth.
