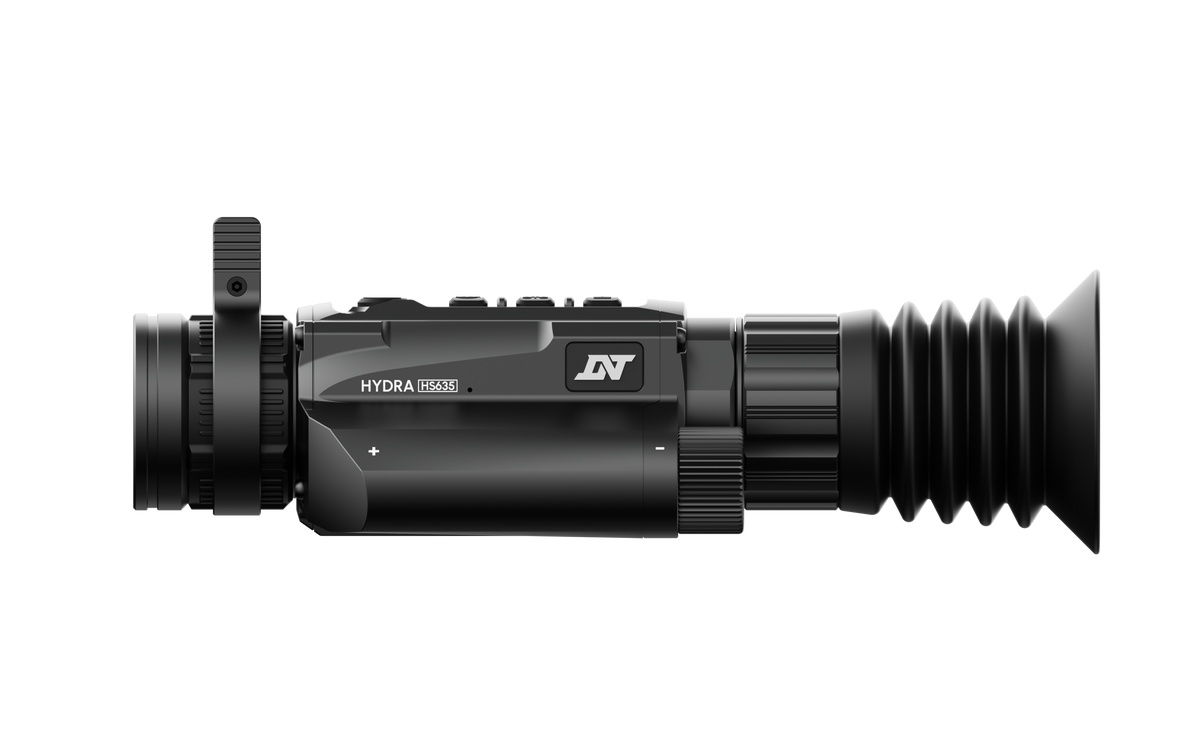

DNT HYDRA HS635 Multi-Function 640 Thermal Scope

The DNT HYDRA HS635 is a multi-function thermal riflescope that also works as a clip-on and as a handheld scanner. A 640×512 thermal sensor behind a 35 mm objective lens makes the HS635 the first 640-class model in the HYDRA line. A QDM150 quick detach mount comes in the box, so switching between handheld scanning and rifle-mounted shooting needs no additional purchase.

The DNT HYDRA HS635 puts a 640-class sensor in a riflescope, clip-on, and handheld scanner

One HYDRA HS635 replaces three separate thermal purchases: a dedicated riflescope, a clip-on, and a handheld scanner. Mounted alone on a Picatinny rail, the HS635 aims through its own reticle. Mounted ahead of a day optic, it feeds a thermal image into glass already zeroed on the rifle, and DNT recommends an LPVO or low-magnification prism optic kept in the lower half of its magnification range. Off the rifle, the unit becomes a hand-carried scanner for locating heat before shouldering the gun.

A 640×512 array gives the HS635 the highest sensor class in the HYDRA line

A 640 sensor means a 640×512 pixel array, roughly three times the pixel count of a 384×288 array. More pixels across the same scene hold detail together at distance, which is where identification gets hard. The HS635 pairs that sensor with a 12 μm pixel pitch and a 1024×768 Micro-OLED display, and 2.5 inches of eye relief keeps the sight picture forgiving under recoil.

Included quick detach mounting keeps the HS635 zeroed between modes

A QDM150 quick detach mount ships with the HS635 at no extra cost. Removing the unit for handheld scanning and remounting it on the rifle requires no re-zero, which is what makes fast mode switching practical in the field.

A 35 mm lens balances field of view and reach on the HS635

Within the 640-class HYDRA models, lens size is the deciding difference. The HS635 carries a 35 mm objective for a wider frame and lighter carry, while the HS650 pairs the same 640×512 sensor with a 50 mm objective for tighter framing at distance. Sensor class is identical between the two, so the choice is about how each hunter scans and shoots.

ISR processing keeps zoomed images on the HS635 from going soft

DNT's Image Super Resolution (ISR) recovers detail that digital zoom normally softens. Zoomed images on the HS635 hold edges and texture better than raw digital magnification alone. ISR is image processing rather than added sensor resolution — the HS635 is a 640×512-class optic and should be judged as one.

Two 18650 batteries and a charger come standard with the HS635

Two 18650 flat-top batteries and a charger ship with the HS635, so a field swap extends a hunt without buying accessories separately. One battery powers the HS635 for up to 4 hours, and a 5V USB-C port accepts external battery banks for long stationary sits. DNT specifies flat-top cells measuring 65 mm by 18 mm, and protected cells run longer and will not fit the compartment.

Footage from the HS635 lands on 32 GB of onboard memory

Built-in 32 GB memory holds footage captured through the HS635 in the field, with no card to buy or install. Wi-Fi pairing with the DNT App adds live viewing on a smartphone, plus file management and sharing after the hunt.

Open country and longer identification distances favor the HS635

Hunters glassing open fields and distant tree lines are the core fit for the HS635, where the 640-class sensor holds detail at distances that challenge smaller arrays. Coyote and hog work at longer sight lines benefits most from that headroom. Buyers hunting mostly closer cover can get what they need from a 384-class HYDRA at lower cost, and anyone who wants integrated ranging should look at the HS635R instead.

FAQ

What is the difference between the DNT HYDRA HS635 and the HS650?

Both use the same 640×512 thermal sensor. The HS635 has a 35 mm objective lens for a wider frame and lighter carry, while the HS650 has a 50 mm lens for tighter framing at distance. The difference is optical, not a difference in sensor class.

What is the difference between the HS635 and the HS635R?

The HS635R adds an integrated laser rangefinder and the DNT Ballistic Engine for drop compensation. Optically the two share the same 640×512 sensor and 35 mm lens.

Does the HS635 come with a mount?

Yes. A QDM150 quick detach mount is included, along with two 18650 batteries, a charger, an eye cup, a flip-up lens cover, two USB cables, a user manual, a quick start guide, and a lens cleaning cloth.

Can the HS635 be used as a clip-on with a day scope?

Yes. The HS635 mounts ahead of a day optic and feeds it a thermal image, using the day scope's reticle and zero. DNT recommends LPVOs or low-magnification prism optics, kept in the lower half of the LPVO's magnification range.

Is the HS635 worth it over a 384 model?

A 640-class sensor holds detail at longer distances than a 384-class sensor, which matters most for identification in open country. Hunters working closer cover often do well with a 384 model at lower cost. Lens size, terrain, and budget all factor into the choice.
