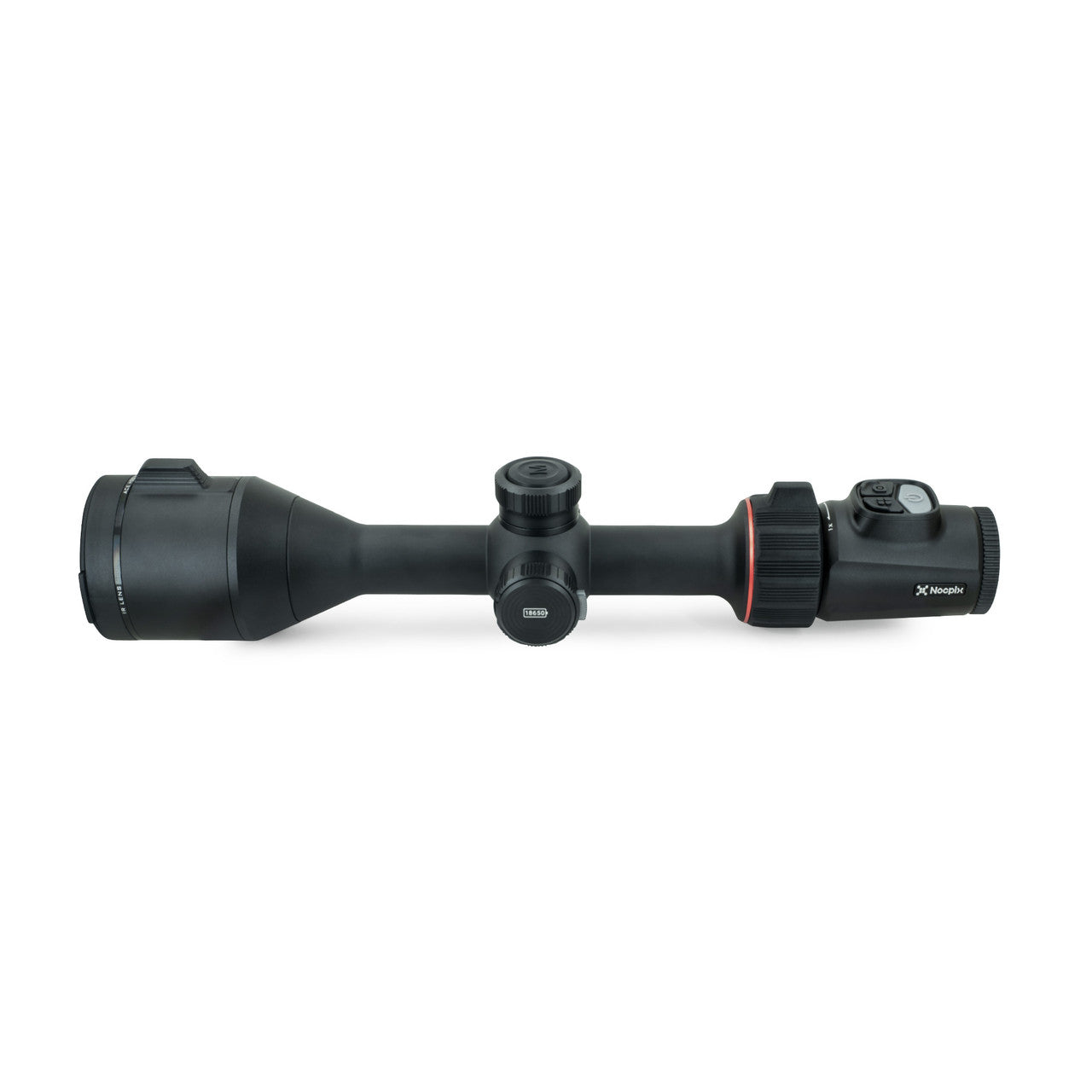

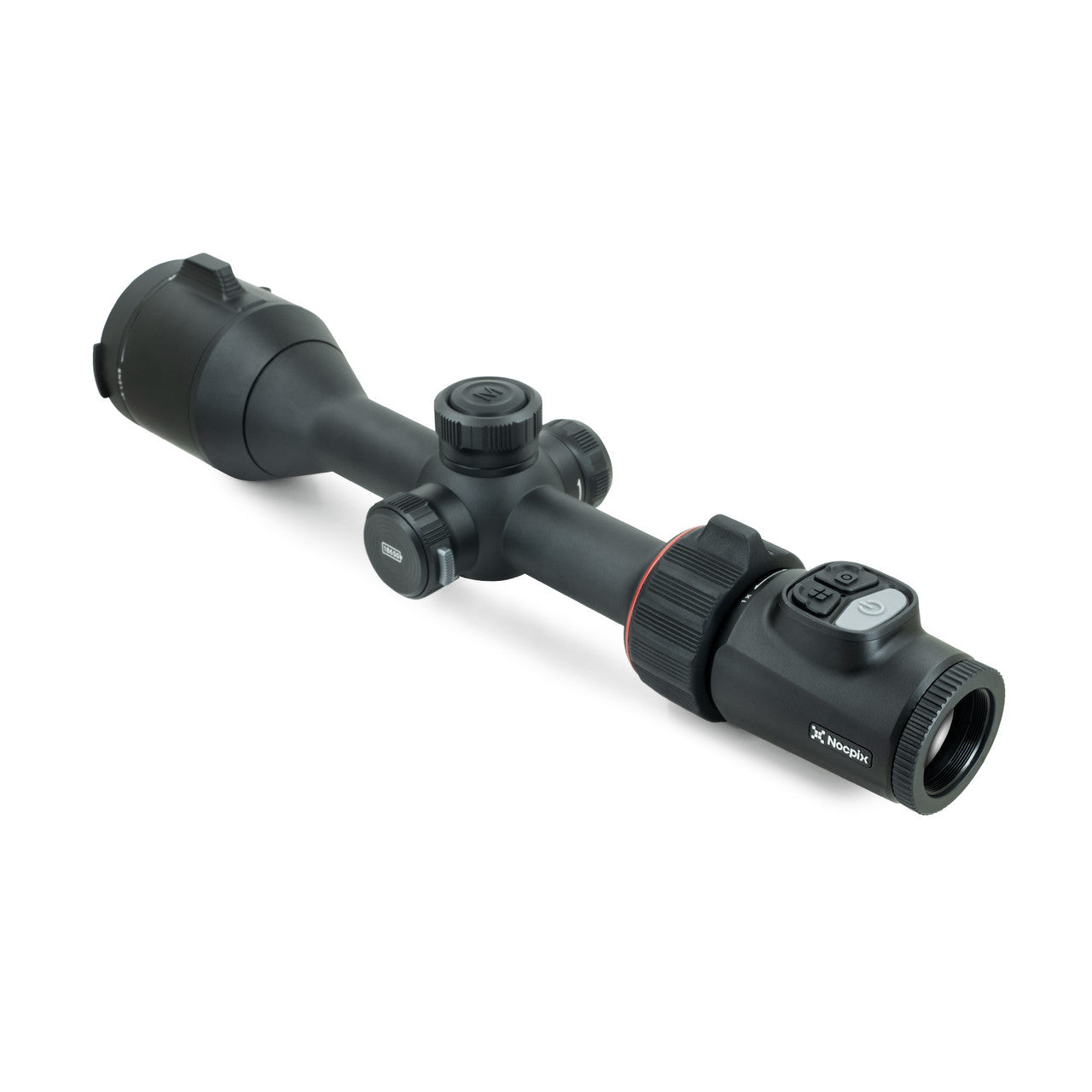

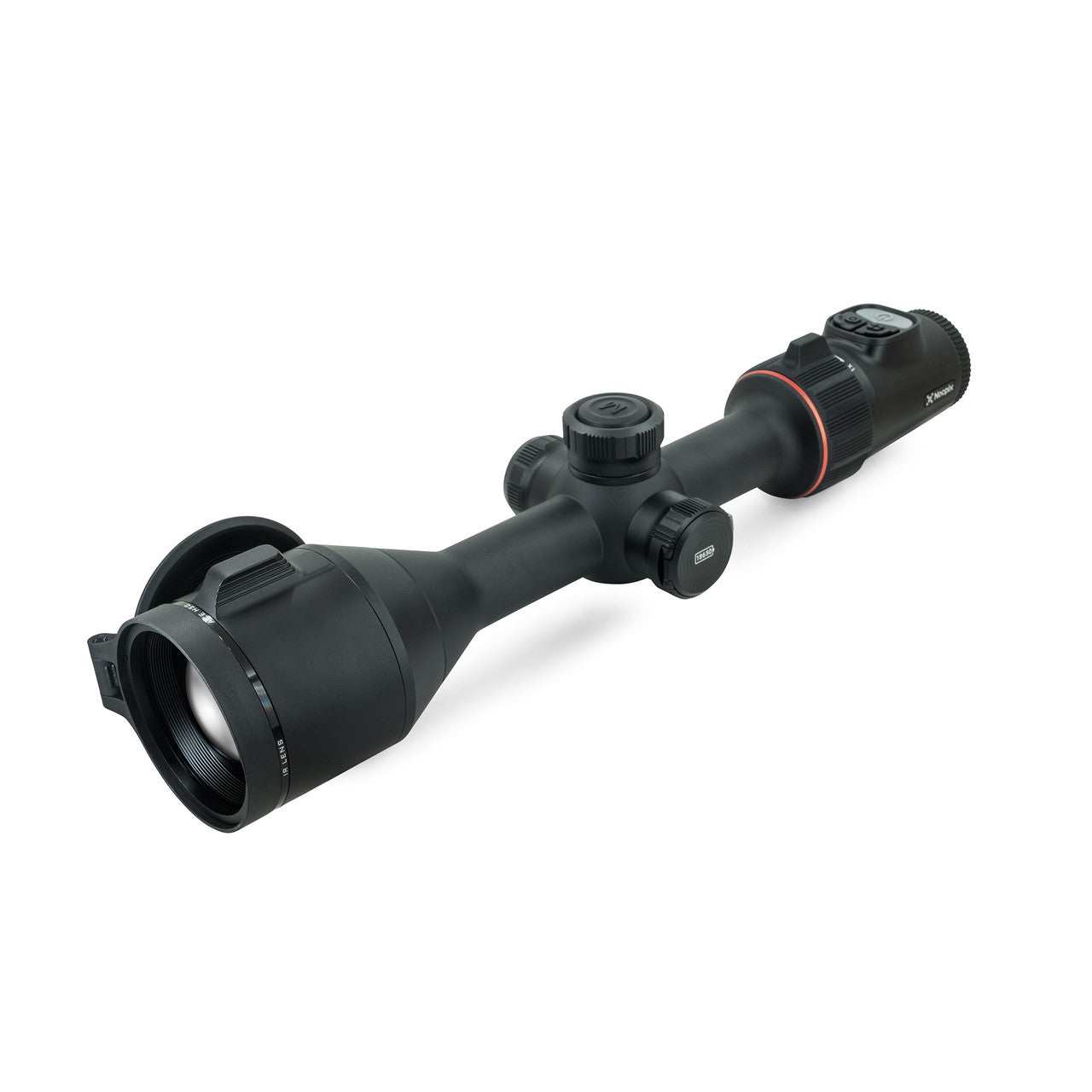

The ACE is built around the idea of combining leading user-requested features in a streamlined optic that balances advanced capability with ease-of-use in the field. Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run indefinitely. A 1-3x ocular magnifier provides optical magnification of the 2560??2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high-resolution display with a 15 mK NETD sensor for an incredibly detailed and precise image.?ÿ
?ÿ
- A 1-3x optical ocular magnifier provides additional magnification of the display without any reticle shift or digital zoom.
- High-contrast round 2560??2560 AMOLED display provides increased clarity and detail.
- Simplified controls offer improved ergonomics and a better user experience in the field.
- Uses common 18650 style rechargeable batteries.
- Charge through the unit with a unique lock-out USB-C port design.
Technical Specifications
-
Sensor Resolution (px)
640x512 -
Display Resolution (px)
2560x2560 -
NETD Rating
15 -
Detection Range
2850 -
Refresh Rate (Hz)
60 -
Field of View
8.8
-
Weight
2.4 lb -
Dimensions
14.3 in 3.5 in 2.7 in -
HZ - refresh rate
60 -
Category
Thermal Rifle Scopes -
Handhelds
No -
Thermal Sensor Resolution
640x512 -
Display Resolution
2560x2560 -
Pixel Pitch
12 -
NETD Rating
15 -
Detection Range
2850 -
Range Finder
No -
Full Color Daytime
No -
Clip-On
No -
Magnification Base
3 -
Magnification Max
8 -
Objective Lens
50 -
Field of View
8.8
Nocpix App
Wi-Fi integration with iOS and Android devices
