AGM Rattler V3 Thermal Scopes

Which AGM Rattler V3 Thermal Scope Should You Buy?

The AGM Rattler V3 lineup gives hunters four dedicated thermal rifle scope options built around two sensor classes, three objective lens sizes, and the choice between a straightforward thermal scope or an integrated laser rangefinder and ballistic calculator.

The lineup includes the compact AGM Rattler V3 25-384, the Rattler V3 LRF 35-384, the Rattler V3 LRF 35-640, and the long-range Rattler V3 LRF 50-640.

For most buyers, the decision is simpler than the model names make it look. Start with whether you need 384 or 640 resolution, decide how much base magnification and field of view fit your terrain, then decide whether integrated ranging is worth paying for.

The most expensive Rattler V3 is not automatically the best one for your hunt. A 384 can make more sense for normal hog and predator distances, while a 640 becomes easier to justify when identification distance, digital zoom, and open-country detail actually matter.

Want to see AGM options beyond the Rattler family? Browse all AGM thermal optics.

AGM Rattler V3 Comparison

AGM's Rattler V3 naming system is straightforward once you know what the numbers mean. The first number refers to the objective lens size, while the second identifies the thermal sensor resolution class. The LRF designation means the scope includes an integrated laser rangefinder.

Best AGM Rattler V3 for Most Hunters

Rattler V3 LRF 35-384: Best Balance of Features and Price

For hunters who want the full Rattler V3 LRF feature set without moving into 640 pricing, the AGM Rattler V3 LRF 35-384 is the first model we would compare.

It pairs a 384-class sensor with a 35mm objective, 3.5× base magnification, an integrated laser rangefinder, and an onboard ballistic calculator. That combination makes sense for hunters who want useful magnification and ranging without paying for resolution their normal distances may not require.

This is especially worth considering if you hunt mixed terrain, field edges, agricultural ground, or predators at moderate distances and want the convenience of ranging built into the optic.

If your normal hunting distances are already handled cleanly by 384 resolution, stepping into a 640 solely because the number is larger may not improve your results enough to justify the additional cost.

Best Value AGM Rattler V3

Rattler V3 25-384: Compact, Simple and No LRF

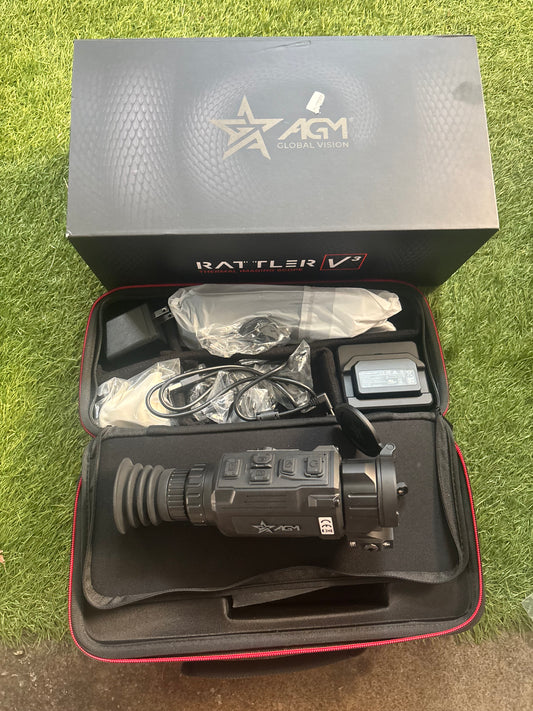

The AGM Rattler V3 25-384 is the simplest and most compact entry into the V3 lineup. It uses a 384×288 thermal sensor with a 25mm objective and 2.5× base magnification.

It is also the important exception in the Rattler V3 family: the 25-384 does not include the integrated laser rangefinder found on the other three models.

That is not automatically a disadvantage. If you hunt known distances, already carry a separate rangefinder, or simply do not need ranging built into the scope, the 25-384 lets you get into the current Rattler V3 platform without paying for hardware you will not use.

The smaller objective and lower base magnification also make it a logical option for hunters who value field of view and compact handling over maximum reach.

If budget is driving the decision, compare it with the rest of our thermal scopes under $3,000.

Best 640 AGM Rattler V3 for Most Hunters

Rattler V3 LRF 35-640: 640 Detail Without the 50mm Lens

The AGM Rattler V3 LRF 35-640 is the model to look at when you want 640-class image detail but do not automatically need the larger 50mm objective of the flagship.

It combines a 640×512 thermal sensor with a 35mm objective and 2.5× base magnification. That lower starting magnification gives it a broader view than the 50-640 while retaining the additional image detail of the 640 sensor.

This is a strong configuration for hunters who want to identify animals more confidently at distance, use more digital magnification, or simply spend enough time behind a thermal scope to appreciate the cleaner 640 image without giving up as much field of view.

The built-in laser rangefinder and ballistic calculator also make it useful when targets routinely appear at unknown distances.

Compare it with other 640 thermal rifle scopes if you are deciding between AGM and other 640-class platforms.

Best AGM Rattler V3 for Open-Country and Longer-Range Hunting

Rattler V3 LRF 50-640: Maximum Reach in the V3 Lineup

The AGM Rattler V3 LRF 50-640 is the long-range option in the family. It combines the 640×512 sensor with a larger 50mm objective and 3.5× base magnification.

That combination is better suited to hunters working large crop fields, pastures, plains, and other open terrain where animals are routinely detected and identified farther away.

The tradeoff is just as important as the advantage. More base magnification and a larger objective are not automatically better in tight cover. If most of your hog or predator hunting happens closer, the 35-640 may give you all the 640 image quality you want with a more versatile view.

Buy the 50-640 because your terrain requires the added reach, not simply because it sits at the top of the Rattler V3 lineup.

AGM Rattler V3 384 vs. 640: Which Resolution Do You Need?

The biggest buying decision inside the Rattler V3 family is whether to stay with a 384 sensor or move into 640 resolution.

Choose a 384 Rattler V3 If:

• Your typical shots happen at close to moderate distances.
• You want strong thermal performance without paying for 640 resolution.
• You hunt feeders, timber edges, mixed cover, crop ground, or normal predator distances.
• You would rather put budget toward useful features such as an integrated rangefinder.

The 25-384 and LRF 35-384 both live in this tier. The main decision between them is whether you want the larger 35mm objective, higher base magnification, integrated LRF, and ballistic calculator.

You can also compare the Rattlers against all of our 384 thermal rifle scopes.

Choose a 640 Rattler V3 If:

• You regularly identify animals farther away.
• You hunt open country where extra target detail matters.
• You use digital zoom enough that retaining image detail becomes important.
• You want a cleaner thermal image and are willing to pay for the sensor upgrade.

The LRF 35-640 and LRF 50-640 use the same resolution class. The practical decision is then between the more versatile 35mm package and the additional magnification and reach of the 50mm model.

If you want a deeper explanation of what sensor resolution changes in the field, read our 384 vs. 640 vs. 1280 thermal resolution guide .

AGM Rattler V3 25-384 vs. 35-384

Both models use a 384-class thermal sensor, so the real difference is how the optic is configured around that sensor.

Choose the Rattler V3 25-384 if you want the smallest, simpler V3 setup, prefer 2.5× base magnification, or do not need an integrated rangefinder.

Choose the Rattler V3 LRF 35-384 if you want more base magnification, a 35mm objective, integrated laser ranging, and the onboard ballistic calculator.

The 35-384 is not automatically the better purchase. If the LRF and additional magnification do not solve a real problem for you, the 25-384 may be the smarter buy.

AGM Rattler V3 35-384 vs. 35-640

This is one of the cleanest comparisons in the Rattler V3 lineup because both scopes use a 35mm objective and include integrated ranging. The primary difference is sensor resolution and the resulting base magnification and field of view.

The 35-384 is the value-focused choice when 384 resolution already covers your real hunting distances.

The 35-640 is worth the upgrade when you genuinely benefit from more image detail, cleaner digital zoom, and the broader view created by its 2.5× base magnification.

Do not buy the 640 simply because it has more pixels. Buy it when those additional pixels improve identification or usability at the distances you actually hunt.

AGM Rattler V3 35-640 vs. 50-640

Both scopes use a 640×512 thermal sensor and include the V3 LRF system. The deciding factor is primarily the objective lens and how that changes the way the scope feels in the field.

The Rattler V3 LRF 35-640 starts at 2.5× and is the more versatile choice when field of view and faster target acquisition matter.

The Rattler V3 LRF 50-640 starts at 3.5× and favors hunters who want more reach and tighter framing across open terrain.

For most hunters who want 640 resolution, the 35-640 deserves a serious look before automatically stepping to the 50-640. The larger lens is valuable when the terrain calls for it, but it can be more scope than necessary when most shots happen closer.

Do You Need an AGM Rattler V3 With a Laser Rangefinder?

Three of the four Rattler V3 models include an integrated laser rangefinder. The 25-384 is the exception.

Integrated ranging becomes increasingly useful when targets appear at unknown distances, especially across large fields and open country. The LRF models also pair ranging with an onboard ballistic calculator, keeping more of the shot process inside the optic.

On known-distance property, around feeders, or for hunters who already use a separate rangefinder, the lack of an integrated LRF may not matter enough to justify paying for it.

If LRF is a priority regardless of brand, compare the Rattler V3 models with our complete collection of thermal scopes with built-in rangefinders .

What Changed With the AGM Rattler V3?

The Rattler V3 generation builds on AGM's compact Rattler platform with upgraded thermal sensors, higher-resolution displays, shutterless non-uniformity correction, AGM Image Boost 2.0 processing, removable rechargeable batteries, recording features, and new LRF-equipped configurations.

Shutterless NUC is one of the more practical changes. Traditional thermal calibration can cause a momentary image interruption. The V3 platform is designed to perform that correction without the familiar mechanical shutter pause, helping keep the viewed image continuous while tracking an animal.

The LRF-equipped models also integrate ranging into the lens system and pair it with an onboard ballistic calculator. Those changes make V3 more than a simple cosmetic refresh of the previous Rattler.

Best AGM Rattler V3 for Hog Hunting

Hog hunters should be careful about buying too much magnification. Hogs frequently appear in groups, move quickly, and are often encountered at closer distances than open-country predators. Maintaining enough field of view to find and follow animals can matter more than maximum reach.

The Rattler V3 25-384 is worth considering when compact size, value, and a lower starting magnification matter and you do not need integrated ranging.

The Rattler V3 LRF 35-640 becomes especially attractive for hunters who want the additional detail of a 640 sensor while retaining a 2.5× starting magnification.

If hogs are your primary target, compare the Rattlers with our complete thermal scopes for hog hunting before deciding that AGM is automatically the best fit.

Best AGM Rattler V3 for Coyote Hunting

Coyote hunting often pushes a thermal scope harder than close-range hog hunting because predators can appear across larger fields and at less predictable distances.

The Rattler V3 LRF 35-384 can make sense when you want 3.5× base magnification and integrated ranging without jumping into 640 pricing.

Hunters who need more identification detail while maintaining a relatively wide view should compare the 35-640. When the property is genuinely wide open and additional reach is the priority, the 50-640 becomes easier to justify.

Our thermal scope for coyote hunting buyer's guide goes deeper into the resolution, field of view, magnification, and ranging decisions that matter for predator hunters.

Is the AGM Rattler V3 Good for a First Thermal Scope?

Yes, but a first-time thermal buyer should still match the model to the hunt instead of assuming a more expensive Rattler will be easier to use.

A current-generation 384 is enough thermal for a lot of first-time hunters. The 25-384 keeps the configuration relatively simple, while the 35-384 adds ranging and more features for a buyer who expects to use the scope heavily.

A 640 is easier to appreciate at distance, but it is not a requirement for learning thermal or successfully hunting at normal distances.

First-time buyers can also read our beginner thermal scope guide before deciding how much capability to buy on the first setup.

AGM Rattler V3 FAQ

How many AGM Rattler V3 models are there?

The current Rattler V3 family sold here consists of four models: the Rattler V3 25-384, Rattler V3 LRF 35-384, Rattler V3 LRF 35-640, and Rattler V3 LRF 50-640.

Which AGM Rattler V3 is best for most hunters?

For a buyer who wants integrated ranging without paying for a 640 sensor, the Rattler V3 LRF 35-384 is a strong place to start. Hunters who specifically need more image detail should move their comparison to the 35-640 before assuming they need the larger 50-640.

Which AGM Rattler V3 is the cheapest?

The Rattler V3 25-384 is the entry point into the V3 lineup. It uses a 384×288 sensor and 25mm objective and leaves out the integrated laser rangefinder found on the other V3 models.

Which AGM Rattler V3 has the best field of view?

Field of view is influenced by both sensor and lens configuration. Within the V3 lineup, lower base magnification configurations such as the 25-384 and 35-640 are especially worth comparing when a broader view and faster target acquisition matter more than maximum magnification.

Which AGM Rattler V3 is best for long range?

The Rattler V3 LRF 50-640 is the long-range model in the family. It combines the 640 sensor with the largest objective and higher starting magnification, making it best suited to open-country hunters who can actually use the additional reach.

Does every AGM Rattler V3 have a laser rangefinder?

No. The Rattler V3 25-384 does not have an integrated laser rangefinder. The LRF 35-384, LRF 35-640, and LRF 50-640 include integrated laser ranging.

Is the AGM Rattler V3 available in 384 and 640 resolution?

Yes. The 25-384 and 35-384 use 384×288 thermal sensors, while the 35-640 and 50-640 use 640×512 sensors.

Is 640 worth it over 384 in the Rattler V3?

It is worth considering when additional image detail, identification distance, or cleaner digital zoom materially improves your hunt. If most of your shooting happens at close to moderate distances, a properly matched 384 can still be the better value.

Should I buy the Rattler V3 35-640 or 50-640?

Choose the 35-640 when you want 640 image quality with a lower starting magnification and more versatile view. Choose the 50-640 when your terrain is genuinely open and additional magnification and reach matter more than field of view.

Does the AGM Rattler V3 have a ballistic calculator?

The LRF-equipped Rattler V3 models pair their integrated laser rangefinder with an onboard ballistic calculator. The non-LRF 25-384 is the simpler configuration.

Is the AGM Rattler V3 good for hogs and coyotes?

Yes. The important part is choosing the configuration that matches the hunt. Hog hunters often benefit from lower magnification and wider views, while open-country coyote hunters can justify additional resolution, magnification, and ranging capability sooner.

Why Buy an AGM Rattler V3 From Thermal Bros?

With four Rattler V3 models that look similar on a specification sheet, the expensive mistake is paying for the wrong combination of resolution, lens size, magnification, and ranging capability.

Thermal Bros helps you choose based on your actual terrain, normal shot distance, target species, rifle setup, and budget. That means we will tell you when stepping from 384 to 640 is worth the money, when a 50mm objective solves a real problem, and when a less-expensive Rattler will do the same job.

If you are not committed to the Rattler platform yet, compare the complete AGM thermal optics lineup or browse all thermal rifle scopes before making the decision.

You can also use our complete thermal scope buying guide to understand the fundamentals before comparing individual models.

Still not sure which Rattler fits your hunt? Contact Thermal Bros and tell us your terrain, typical shot distance, target species, and budget. We'll help narrow the lineup without automatically pushing you toward the most expensive model.
