Meet the RIX LPR L6R: Features, Specs, and Buyer Fit

Quick answer: The RIX LPR L6R is a 640×512 thermal rifle scope built around a 50mm F0.9 lens, <12 mK sensitivity, an adjustable 2,187-yard laser rangefinder, and environmental sensors for onboard ballistics. It is worth considering for open-field coyote and hog hunting when image detail and ranging controls matter.

Shopping for a thermal scope gets easier when you connect the specifications to your hunting. The new RIX LPR L6R gives experienced thermal buyers several reasons to look beyond the resolution number. Its main changes concern how you range a target, control magnification, and supply environmental information to the ballistic calculator.

If you are new to thermal, our complete thermal scope buying guide explains how to weigh sensor resolution, field of view, and magnification before comparing individual models.

What is the RIX LPR L6R?

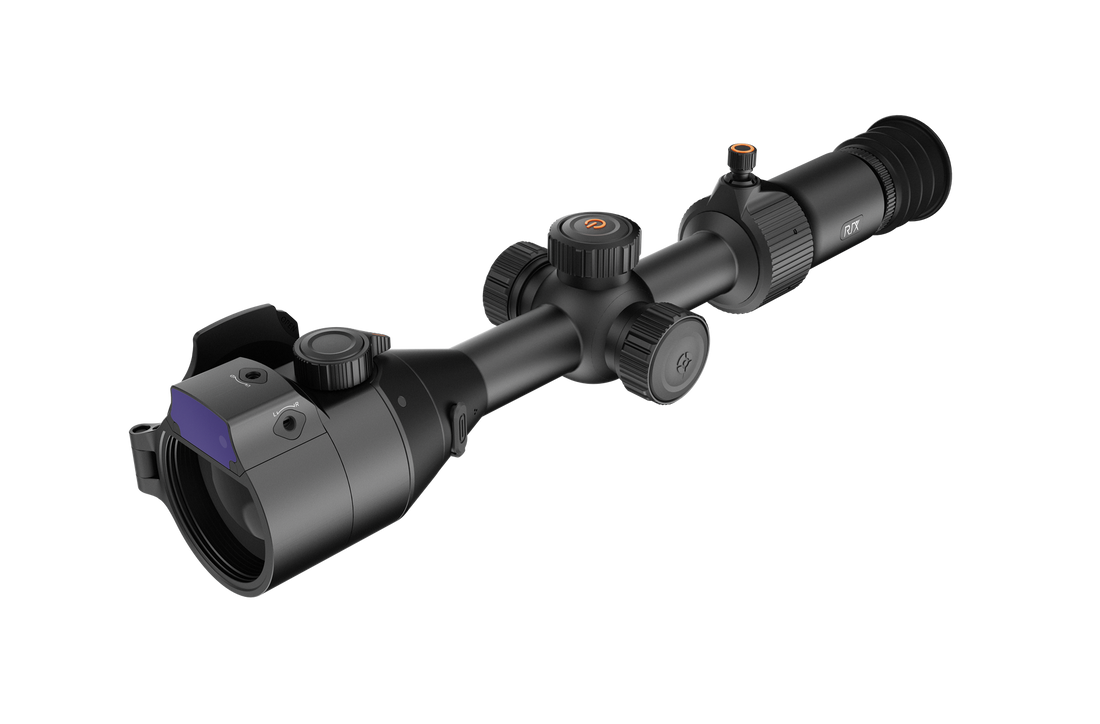

The LPR L6R is a dedicated rifle-mounted thermal optic with a 3× base magnification and a 640×512, 12-micron VOx detector. Its 50mm objective uses an F0.9 aperture, and the sensor operates at 50 Hz. The scope mounts through a 30mm tube, with a quick-detach Picatinny mount included.

That configuration makes it a sensible shortlist option for hunters working pastures and agricultural ground. For close encounters in heavy cover, compare the 3× starting image and 8.8° horizontal field of view with a lower-magnification alternative before choosing.

Four features that deserve attention

• Adjustable ranging point: Mechanical adjustments let you align the rangefinder with a reference zeroing profile. This can reduce switching between separate ranging and aiming points.
• FlexZoom controls: An optical lever and digital knob sit near the eyepiece, allowing independent adjustment in one control area.
• ClarityX imaging: RIX combines image processing, AI-assisted processing, and enhanced RET technology to improve displayed detail and target separation.
• Environmental ballistics: Temperature, humidity, and barometric-pressure sensors supply local measurements to the onboard calculator.

What does <12 mK NETD tell you?

NETD describes sensitivity to small temperature differences. The LPR L6R's below-12 mK rating is relevant when an animal and the surrounding ground have limited thermal contrast. Resolution, lens performance, focus, and processing still contribute to the image you see. Read our guide to NETD and thermal sensitivity for the wider context.

A low NETD number does not establish an identification distance. RIX rates detection at 2,843 yards, but detecting a heat source and determining exactly what animal it is are separate tasks.

Optical magnification, display, and recording

The LPR L6R provides 3–9× eyepiece optical magnification and a separate 1–4× digital zoom multiplier. The optical mechanism magnifies the displayed image through the eyepiece lens group. It does not add pixels to the detector or turn the objective into a variable-focal-length lens.

A 1.03-inch, 2560×2560 AMOLED display presents the image. Recording uses 1280×1280 MP4 files and 64GB of internal storage. Those numbers describe the screen and saved video; thermal sensor resolution remains 640×512.

For a closer explanation of what the controls change, see how the LPR L6R's adjustable LRF, FlexZoom, and ballistics work.

Power and the included package

The scope uses a replaceable 21700 battery and includes a sleeve for compatible 18650 batteries. RIX lists 5.5 hours of runtime under its test conditions. Two 21700 batteries, a charger, and the QD mount are supplied. USB-C external power is supported.

The magnesium-alloy body weighs approximately 2.01 lb without the battery. IP67 protection and a five-year manufacturer warranty, subject to RIX terms, complete the main ownership specifications.

Should the LPR L6R be on your shortlist?

Consider it if you want a 640 thermal scope with 3× base magnification and will use its adjustable ranging system or environmental ballistic inputs. If your current scope already handles your hunting well, compare the features you would actually use before deciding to upgrade.

Already own a LEAP? Our LPR L6R versus LEAP L6R comparison separates the upgrades from features your scope may already provide.

This introduction is based on RIX's supplied specifications and training materials. We have not treated those materials as a hands-on field test.

Frequently asked questions

Is the LPR L6R a handheld scanner?

No. It is a thermal rifle scope. Choose a handheld thermal optic if your primary need is scanning and observing before using a rifle.

How far does its rangefinder reach?

The manufacturer-rated maximum is 2,000 meters, or 2,187 yards. Actual ranging depends on the target and conditions.

Is the LPR L6R the same as the LEAP L6R?

No. The LPR L6R is a separate model with changes to sensitivity, display, ranging alignment, batteries, and environmental sensing.
