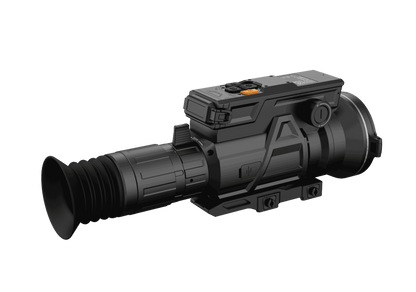

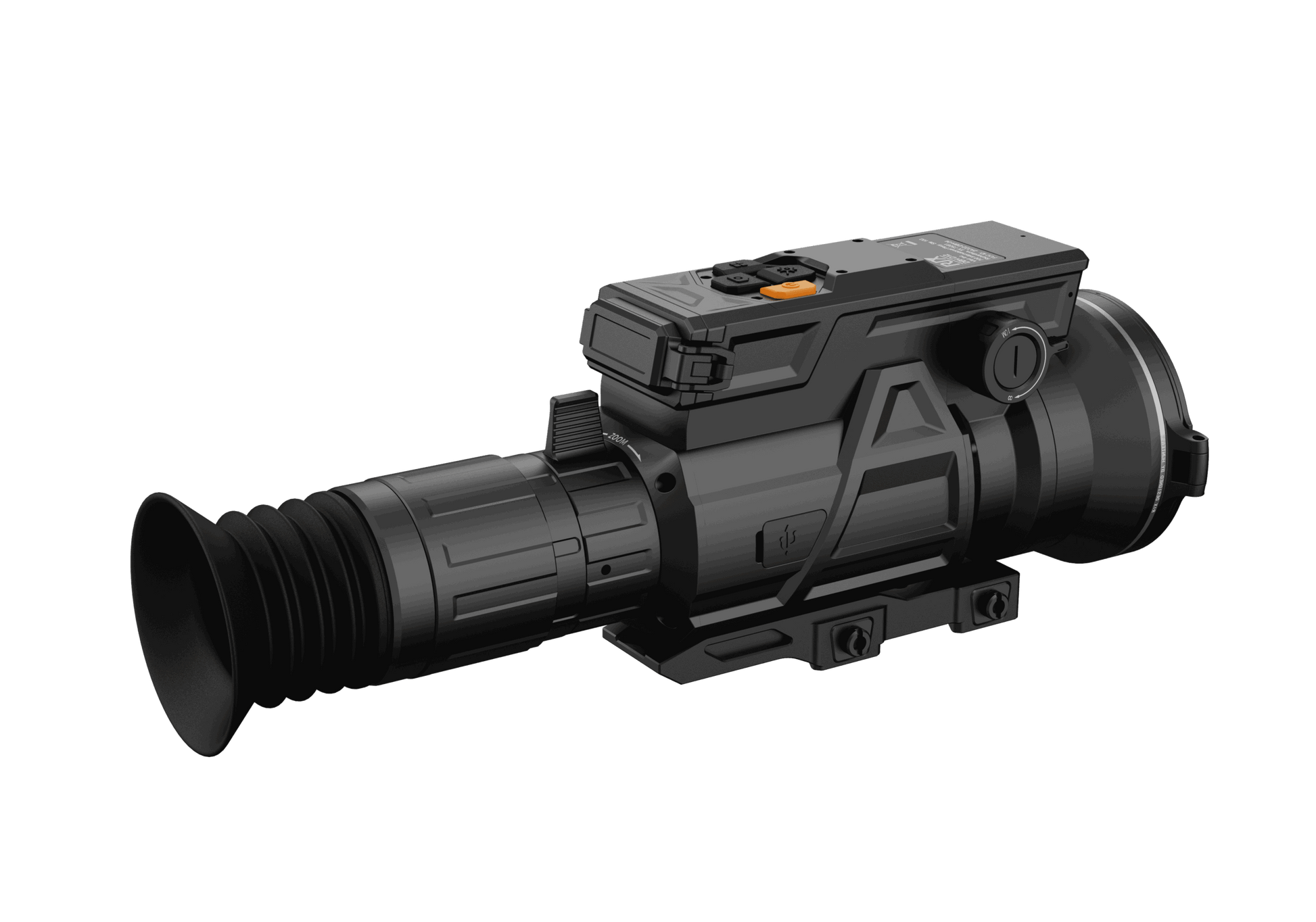

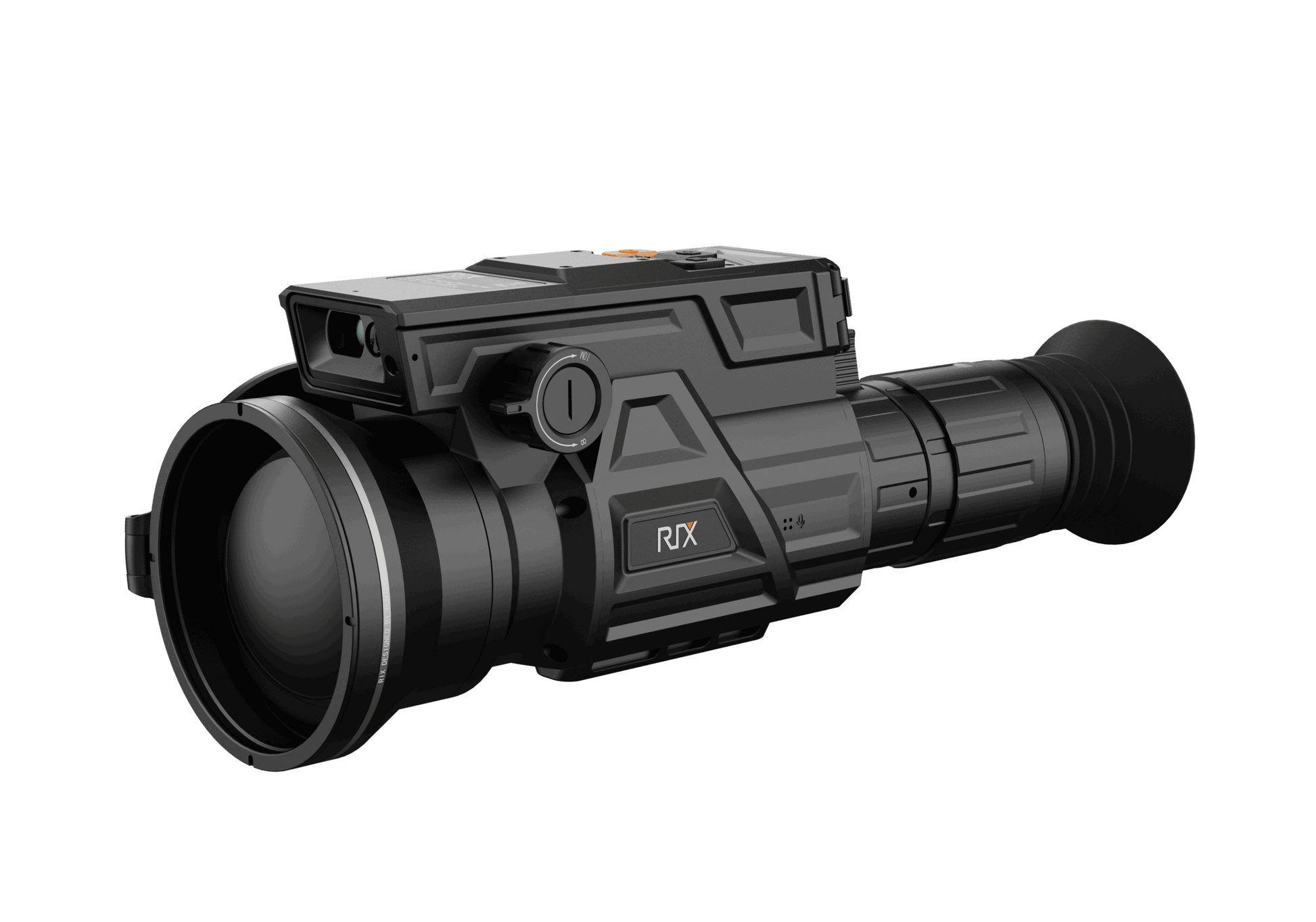

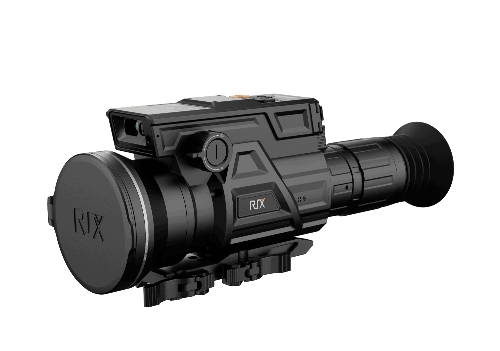

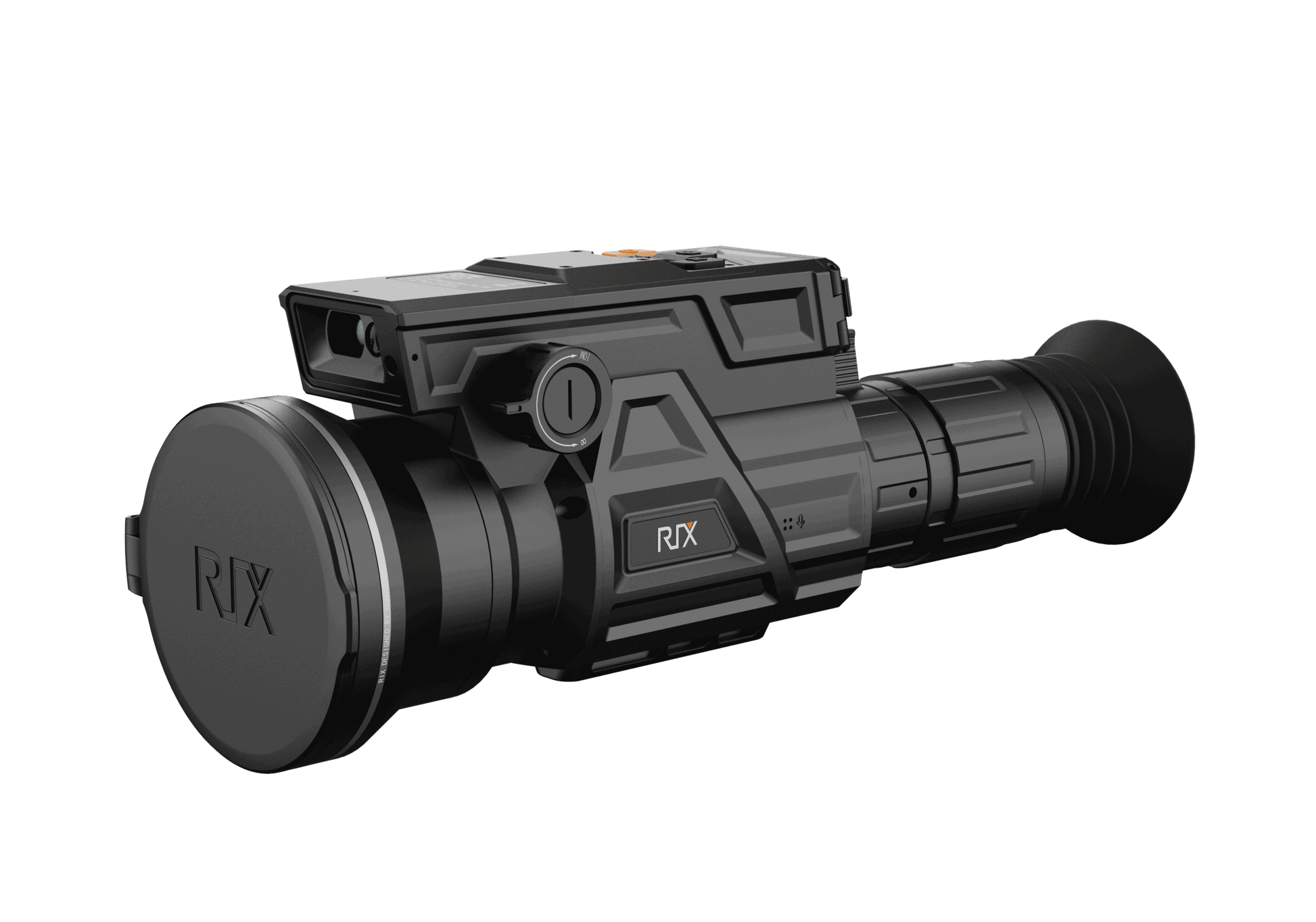

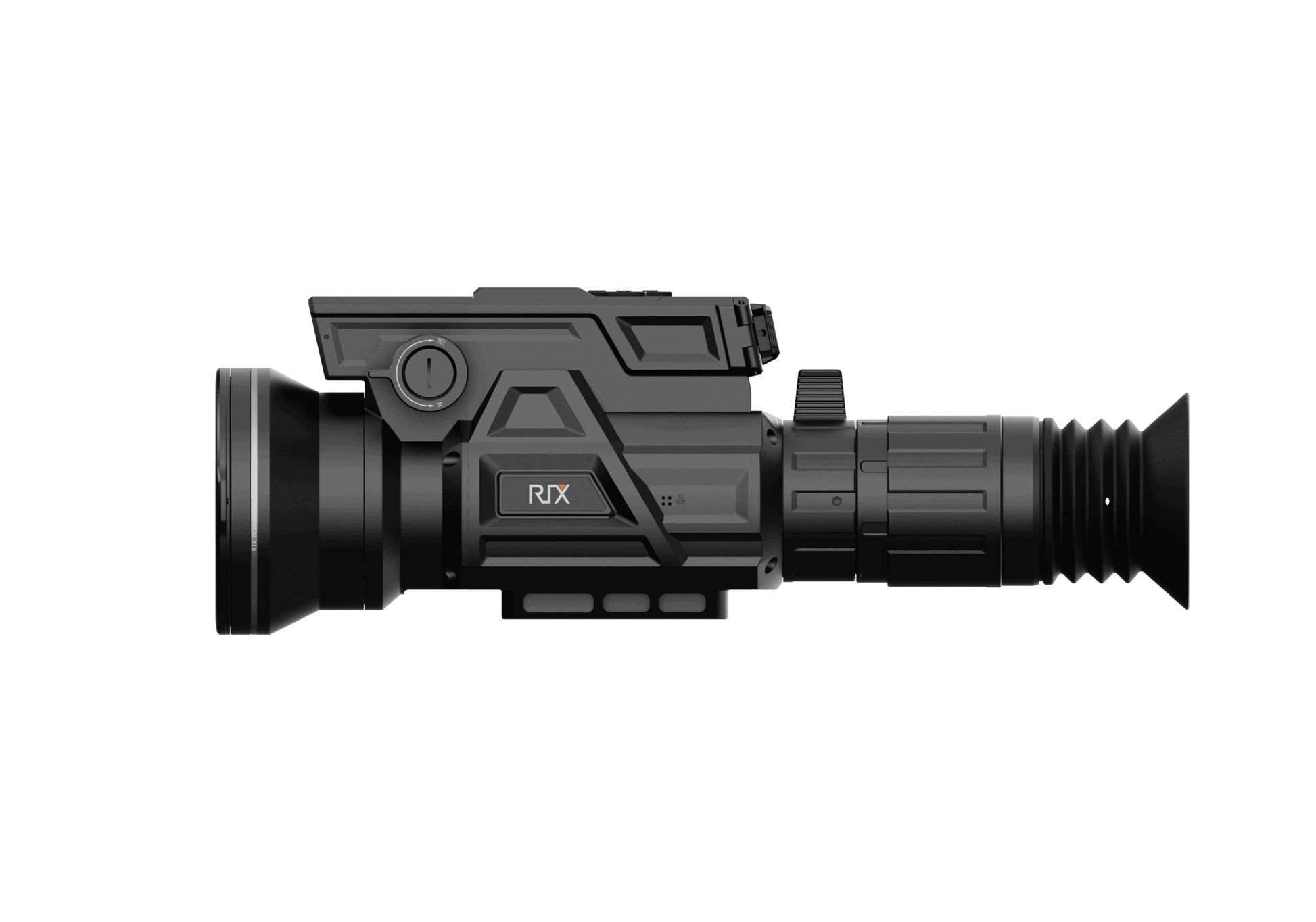

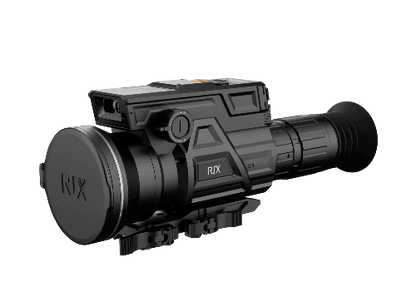

RIX DBH D12 1280 75mm LRF Thermal Rifle Scope
Quick answer
The RIX DBH D12 is a 1280×1024 thermal rifle scope with a 75mm objective lens, 3× base magnification, a 2560×2560 display and an integrated 1,312-yard laser rangefinder. It combines thermal imaging, distance measurement and onboard ballistic calculation for hunters comparing...

Who this is for
Best for
Open-country coyote and hog hunters prioritizing a 1280 sensor, a 75mm lens and integrated ranging.
Not ideal for
Buyers prioritizing a light rifle, hands-free observation or the lowest total system cost.
Why buy from Thermal Bros
Thermal Bros helps you compare the exact model, starting view, image detail and accessory fit for your intended use. Tell us your terrain, current equipment and budget so we can help you choose the right complete setup.
Full product description
The RIX DBH D12 is a 1280×1024 thermal rifle scope with a 75mm objective lens, 3× base magnification, a 2560×2560 display and an integrated 1,312-yard laser rangefinder. It combines thermal imaging, distance measurement and onboard ballistic calculation for hunters comparing premium rifle-mounted optics.
Why choose the D12 over a 640 thermal scope?
The D12 starts with 1,310,720 detector pixels. A 640×512 detector has 327,680. That four-to-one difference gives the D12 a larger thermal image data set, but it does not mean four times the identification distance. Lens size, field of view, atmosphere and the animal itself still determine what you can resolve.
Its 75mm objective distinguishes this DBH from the 60mm D6 and the 60mm LEAP L12R. Match that larger front end to your rifle balance and hunting position. A scope that is comfortable from a supported position may feel different during a night spent walking between stands.
Who this model is for
Open-country coyote and hog hunters prioritizing a 1280 sensor, a 75mm lens and integrated ranging.
Buyers prioritizing a light rifle, hands-free observation or the lowest total system cost. Compare the alternatives below before deciding.
Match the starting view to your hunting ground
For coyote calling, hog hunting and observation across agricultural ground, start with where animals usually appear. A lower starting magnification can make it easier to keep a moving subject inside the frame. A larger starting image can help when attention is focused farther across a field. Field of view and native detector resolution make that tradeoff clearer than the largest zoom number.
The right comparison includes your rifle balance, normal observation position and whether you already carry a separate scanner. A rifle-mounted thermal sight and a handheld thermal monocular serve different roles. Build around the job you need the optic to do before spending more on a specification that may not change your experience.
What digital zoom changes
Base magnification is the starting view. The digital zoom setting multiplies that view by electronically enlarging the captured image. A larger displayed subject can help with observation, but the detector still contains the same number of pixels. Maximum magnification is therefore a poor substitute for comparing native image detail.
The specifications below distinguish the thermal detector from the viewing display. A higher-resolution display can present the image differently, but it does not increase the detector’s native resolution. Check both specifications when comparing models or generations.
Laser ranging, ballistics and realistic image expectations
The integrated rangefinder measures distance to a suitable target. The onboard ballistic calculator uses range and the rifle profile you enter to provide a ballistic reference. Its usefulness depends on accurate inputs and calibration of the complete rifle and optic setup.
Maximum laser ranging distance, thermal detection distance and species identification describe different capabilities. A published maximum is not a guaranteed distance for identifying an animal. Weather, humidity, vegetation, target size and thermal contrast all affect the image. Use the image and conditions in front of you instead of treating an advertised range as a promise.
Power and setup before the first trip
Check the battery type, mount interface and manufacturer-rated runtime in the specification table. Battery ratings are measured under stated conditions and can change with temperature, recording, Wi-Fi use and other settings. Carrying the correct charged spare is usually more useful than planning around an ideal runtime number.
Set the eyepiece focus, confirm objective focus and review the controls before relying on the optic outside. Use the exact model’s manual for firmware, ranging and battery instructions. A shared series name does not establish that two generations use identical menus or accessories.
RIX DBH D12 specifications
| Specification | Details |
|---|---|
| Thermal sensor | 1280×1024 |
| Pixel pitch | 12μm |
| NETD | <15 mK |
| Refresh rate | 50 Hz |
| Objective lens | 75mm |
| Base magnification | 3× |
| Displayed magnification | 3~20× |
| Field of view at base setting | 11.7°×9.3° |
| Eye relief | 60mm |
| Display type | OLED |
| Display resolution | 2560×2560 |
| Maximum laser ranging distance | 1312yd |
| Ballistic calculation | Yes |
| Recording storage | 64GB |
| Weather protection | IP67 |
| Manufacturer-listed weight | 3.47 lb |
| Battery type | 18650 |
| Manufacturer-rated runtime at 72°F | 7 h |
Compare related models
RIX LEAP L12R: Compare the LEAP L12R for another 1280×1024 option with a 60mm objective and 2–6× optical eyepiece magnification.
RIX DBH D6: Compare the DBH D6 when a 640×512 sensor and 60mm objective meet your needs at a lower equipment cost.
Frequently asked questions
What is the RIX DBH D12?
The RIX DBH D12 is a 1280×1024 thermal rifle scope with a 75mm objective lens, 3× base magnification, a 2560×2560 display and an integrated 1,312-yard laser rangefinder. It combines thermal imaging, distance measurement and onboard ballistic calculation for hunters comparing premium rifle-mounted optics.
How does the DBH D12 compare with the LEAP L12R?
Compare the LEAP L12R for another 1280×1024 option with a 60mm objective and 2–6× optical eyepiece magnification.
Does the DBH D12 have a laser rangefinder?
Yes. RIX lists a maximum ranging distance of 1312 yards. Target reflectivity and conditions affect performance. This number describes laser ranging, not animal identification distance.
Does more zoom add thermal detail?
Digital zoom enlarges the image already captured by the detector. It does not add thermal pixels. Compare the starting view and detector resolution alongside maximum magnification.
Can the DBH D12 guarantee identification at its detection range?
No. Detecting a heat source and identifying an animal are different tasks. Weather, target size, contrast and viewing conditions determine the detail you can use.
Where can I get help choosing the right setup?
Contact Thermal Bros with your usual terrain, observation distances, current equipment and budget. We can help compare the models and identify the accessories needed for your intended use.
