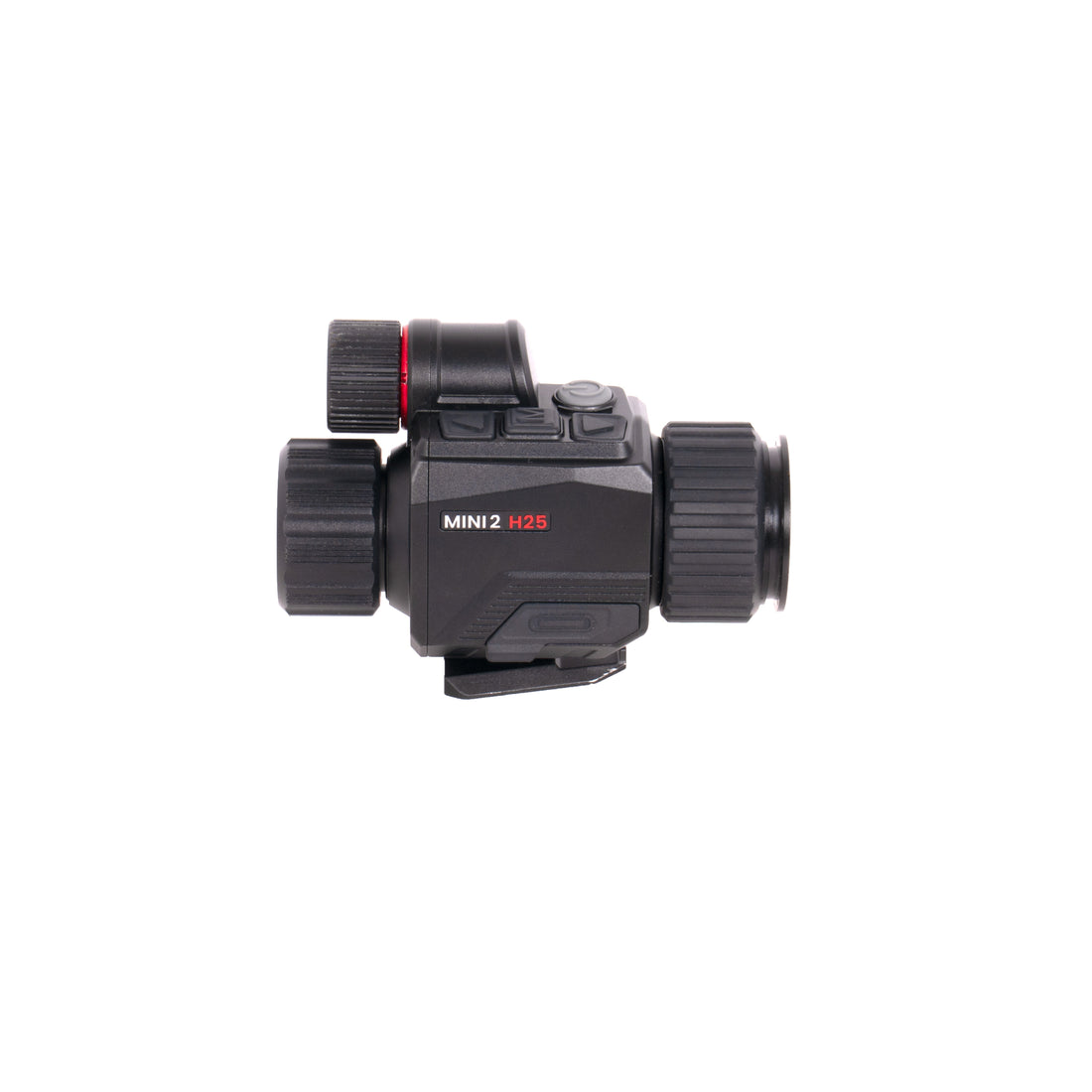

Nocpix MINI2 H25 Buyer’s Guide: Thermal, Night Vision and Fusion Explained
Share
The Nocpix MINI2 H25 is not simply another compact thermal monocular. It combines a 640x512 thermal sensor, 960x540 digital night vision and a thermal fusion overlay in one true-1x device designed primarily for helmet-mounted observation.
That combination sounds like an automatic upgrade over a thermal-only monocular, but it is not the best choice for everyone. Fusion adds scene context and flexibility, but it also adds cost, power requirements and another imaging system to understand. This guide explains what the MINI2 H25 does, what it does not do and who should actually spend the money on it.
Quick answer: The Nocpix MINI2 H25 is best for experienced users who want hands-free thermal detection and a digital view of the surrounding scene from the same compact monocular. It is a strong fit for scanning, walking private property, checking livestock and observing mixed terrain after dark. It is not the best value if you only need to find heat, and it is not a thermal riflescope or clip-on.
What is the Nocpix MINI2 H25?
The MINI2 H25 is a handheld and helmet-mountable multispectral monocular. Its thermal channel detects heat, its digital night-vision channel shows a more recognizable view of the scene and fusion mode layers thermal information over the digital image.
The goal is straightforward. Thermal helps you notice that something warm is present. Digital night vision can make roads, fences, gates, trees, structures and terrain easier to recognize. Fusion attempts to place those two types of information in the same view.
If you are still deciding which technology solves your problem, start with our thermal vs. night vision guide. Thermal is normally better for finding heat, while night vision is normally better for seeing familiar environmental detail. The MINI2 is for buyers who regularly need both jobs close together.
Nocpix MINI2 H25 specifications that matter
| Thermal sensor | 640x512, 12 microns |
|---|---|
| Thermal sensitivity | Under 15 mK |
| Refresh rate | 60 Hz |
| Thermal objective | 25 mm F/1.0 |
| Digital night vision | 960x540 CMOS channel |
| Magnification | 1x optical, up to 4x digital |
| Thermal field of view | 17.6 x 14.1 degrees |
| Display | 1280x1024 AMOLED |
| Detection range | Up to 1,420 yards, manufacturer rated |
| Weight | 8.47 ounces |
| Mounting interface | Integrated dovetail shoe |
| Recording | Photo, video and audio with 32 GB storage |
| Protection | IP67 aluminum housing |
| Warranty | 5 years |
The headline specification is not the 1,420-yard detection rating. Detection only means the unit may reveal that a heat source is present under favorable conditions. It does not mean you can reliably identify an animal, person or object at that distance. For helmet use, the more important numbers are the true 1x view, wide field of view, 60 Hz refresh rate, low weight and integrated dovetail.
How thermal, digital night vision and fusion differ
Thermal mode
Thermal mode reads temperature differences and makes warm subjects stand out in complete darkness. It is the fastest of the three modes for locating hogs, coyotes, livestock, wildlife and people across fields, brush lines and mixed terrain.
The limitation is context. A heat map may show a warm subject clearly while showing less familiar detail around a road, ditch, fence or structure. Thermal detects. It does not automatically identify.
Digital night-vision mode
Digital night vision uses a light-sensitive CMOS sensor. It can provide a more recognizable picture of the environment, but it is not the same as analog image-intensifier night vision. Performance depends on available light and may improve with a compatible supplemental IR illuminator.
Buyers who prioritize natural movement, depth cues, minimal latency and the strongest low-light navigation experience should still compare the MINI2 with dedicated helmet-mounted night vision. The MINI2 digital channel is useful, but it should not be presented as a direct replacement for every analog night-vision system.
Fusion mode
Fusion mode overlays thermal information onto the digital view. A warm subject can stand out while the digital channel provides more recognizable terrain and structural detail around it.
Fusion is an awareness tool, not automatic identification. The thermal and digital channels view the scene through separate lenses, so overlay alignment and usefulness can change with distance, focus, ambient light, IR illumination, weather and user setup. Positive identification and safe movement still depend on the user.
Why true 1x and 60 Hz matter on a helmet
Helmet-mounted optics move every time your head moves. A magnified image can make walking, scanning and understanding distance feel less natural. The MINI2 starts at true 1x, which preserves a wider view and reduces the tunnel-vision effect created by higher base magnification.
The 60 Hz thermal refresh rate is equally important. A faster refresh helps motion appear smoother when you turn your head or scan quickly. It does not eliminate every limitation of viewing the world through a digital display, but it makes more sense for a moving helmet optic than a slower thermal system.
If your only goal is thermal detection, browse all current helmet-mounted thermal monoculars before assuming the extra digital and fusion channels are necessary.
What comes with the MINI2 and what you still need
The MINI2 has an integrated dovetail shoe and includes an external battery pack. That does not mean a complete wearable helmet system is included.
A working setup may still require:
- A compatible helmet or headgear
- A compatible helmet mount
- An arm, bridge or adapter that places the optic correctly
- Cable management and proper counterbalance
- A supplemental IR illuminator when the digital channel needs more light
Start with helmets and headgear and helmet mounts and accessories. If you do not want to piece the system together, the Complete Helmet System is the better place to start. Confirm the full connection chain before ordering because a dovetail interface alone does not guarantee that every mount, bridge and helmet combination will position the device correctly.
MINI2 battery runtime: the honest answer
Current published U.S. information is inconsistent. One official Nocpix listing describes more than four hours of operation with the internal battery and included external pack, while iRayUSA specifications and several dealer listings state up to seven hours.
The responsible expectation is at least four published hours, with seven hours treated as a best-case maximum until real use confirms the result for your settings and conditions. Refresh rate, recording, Wi-Fi, screen brightness, temperature and battery condition can all affect runtime.
The important practical point is that the external pack is not a throwaway accessory. It is part of the intended helmet system and can also help balance the optic at the front of the helmet.
Nocpix MINI2 H25 vs. RIX Stride ST6 Lite vs. RH25 V2
The closest Thermal Bros alternatives do different jobs. The right choice depends on whether you want thermal detection, fusion or true multi-role weapon capability.
| Model | Imaging system | Primary role | Best reason to buy | Main reason to skip |
|---|---|---|---|---|
| Nocpix MINI2 H25 | 640 thermal, digital night vision and fusion | Helmet and handheld observation | You genuinely need heat detection and digital scene context in one compact device | You only need thermal detection or require weapon use |
| RIX Stride ST6 Lite | 640 thermal only | Simple helmet and handheld thermal scanning | You want a lighter, less expensive 640 thermal without fusion complexity | You specifically need a digital scene view or fusion overlay |
| iRayUSA RICO MICRO RH25 V2 | 640 thermal only | Helmet, handheld, weapon sight and clip-on use when properly configured | You need one thermal platform to cover several roles | You want integrated digital night vision or only need a simple helmet scanner |
Choose the MINI2 H25 if:
- You repeatedly need thermal detection and recognizable scene detail close together.
- You want a compact true-1x helmet monocular rather than a magnified handheld.
- You understand that digital night vision is different from analog night vision.
- You value fusion enough to accept the additional cost and power system.
Choose the RIX Stride ST6 Lite if:
- Your main job is simply finding heat from a helmet or handheld scanner.
- You want 640 thermal performance with less cost and complexity.
- You do not need digital night vision, fusion or weapon capability.
Choose the RH25 V2 if:
- You want one thermal to move among helmet, handheld, weapon-sight and clip-on roles.
- Weapon use matters more than adding a digital night-vision channel.
- You will actually use enough of its roles to justify the added setup requirements.
Who should buy the Nocpix MINI2 H25?
The MINI2 makes the most sense for experienced hunters, ranchers, landowners, search teams and professional users who move or observe after dark and benefit from changing among heat detection, digital scene detail and a fused view.
Strong use cases include:
- Scanning fields, tree lines and mixed terrain while keeping both hands available
- Checking livestock, gates, equipment and private property after dark
- Locating heat and then viewing the surrounding terrain without changing devices
- Building a compact fusion setup without stepping into a larger fusion binocular
Browse the broader Nocpix thermal optics collection if helmet use is only one of several jobs you are comparing.
Who should skip the MINI2?
Skip the MINI2 if any of these statements describe you:
- You only need a lightweight helmet thermal for finding heat.
- You expect digital night vision to look and move exactly like analog tubes.
- You need a recoil-rated thermal riflescope or clip-on.
- You do not want to manage an external battery, cable and complete helmet-mounting system.
- You are paying for fusion because it sounds advanced but cannot identify when you would use it.
There is nothing wrong with choosing the simpler optic. Extra modes only create value when they solve a recurring problem.
Nocpix MINI2 H25 frequently asked questions
Is the Nocpix MINI2 H25 thermal or night vision?
It is both. The MINI2 combines a 640x512 thermal channel with 960x540 digital night vision and a fusion mode that overlays thermal information on the digital image.
Is the MINI2 H25 true 1x?
Yes. The MINI2 starts at 1x optical magnification and offers digital zoom up to 4x. The true-1x starting view is one of its most important advantages for helmet-mounted scanning and movement.
Does the MINI2 H25 replace analog night vision?
Not for every user. Its digital night-vision channel provides useful scene detail, but analog night vision can still be better for natural movement, low latency, depth cues and demanding low-light navigation.
Does the MINI2 include a helmet mount?
The MINI2 includes an integrated dovetail shoe and external battery pack, but a complete helmet, shroud, helmet mount, arm or bridge and any needed accessories must still be confirmed separately.
Can the MINI2 H25 be used as a thermal riflescope or clip-on?
No. The MINI2 is a handheld and helmet-mounted observation monocular. Buyers who need genuine weapon-sight or clip-on capability should compare it with the RICO MICRO RH25 V2.
How long does the MINI2 battery last?
Published U.S. information currently ranges from more than four hours to as much as seven hours with the included external battery system. Actual runtime depends on settings, recording, wireless use, temperature and battery condition.
Is fusion worth paying for?
Fusion is worth paying for when you repeatedly need thermal detection and digital environmental detail from the same helmet-mounted device. If you only need heat detection, a thermal-only monocular such as the RIX Stride ST6 Lite is simpler and less expensive.
Is the MINI2 good for walking or navigating?
The true-1x view, 60 Hz thermal refresh rate and digital channel make it better suited to movement than a magnified thermal. However, it should not be treated as a substitute for normal visibility, safe movement practices or dedicated navigation equipment. Supplemental IR may be needed for the digital channel in very dark conditions.
Thermal Bros recommendation
The Nocpix MINI2 H25 is one of the more interesting helmet monoculars because its three viewing modes solve genuinely different problems. Thermal finds heat. Digital night vision provides a more recognizable scene. Fusion gives the user a way to view both types of information together.
That still does not make it the automatic best helmet thermal. For pure detection, the RIX Stride ST6 Lite is the cleaner value. For multi-role thermal use that includes a rifle or clip-on, the RH25 V2 is the more appropriate comparison. The MINI2 wins when digital scene context and fusion are important enough to justify the difference.
View the Nocpix MINI2 H25 product page, compare all helmet-mounted thermal options, or contact Thermal Bros with the helmet, mount and equipment you already own. We will help confirm the simplest compatible setup before you spend money on parts that do not work together.
