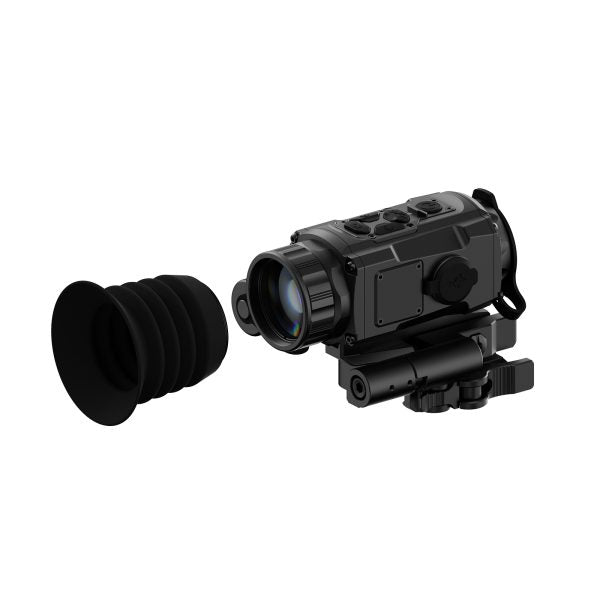

How to Use the DNT HS210M as a Helmet-Mounted Thermal or Clip-On

Quick answer: The DNT HYDRA-Mini HS210M can operate as either a helmet-mounted thermal or a front-mounted thermal clip-on, but each configuration requires the correct supporting equipment. Helmet use requires a compatible helmet or headgear, shroud, helmet mount, bridge and HS210M-specific interface. Clip-on use requires a properly aligned day optic and weapon mount at a compatible centerline height.

The DNT HYDRA-Mini HS210M is built around a compact 11.3-ounce body, 10mm lens and nominal 1× thermal view. Those characteristics make it better suited to helmet and low-power clip-on use than many higher-magnification thermal riflescopes.

This guide explains what each configuration requires, which Thermal Bros helmets and headgear are worth considering, and which helmet mounts and bridges may fit the intended setup.

Important: The QDF193 Is Not a Helmet Mount

The HS210M includes a DNT QDF193 dual quick-detach flip-to-side weapon mount. That mount attaches the thermal to a firearm's Picatinny rail and positions the optic at a 1.93-inch centerline.

The QDF193 does not replace the helmet mount, bridge or device-side interface required for head-mounted use. Anyone purchasing the HS210M primarily for helmet use should plan the complete mounting chain before ordering.

What Is Required to Helmet-Mount the DNT HS210M?

A complete helmet-mounted HS210M system will generally require:

• A properly fitted helmet or compatible headgear
• A front shroud or mounting plate
• A compatible dovetail helmet mount
• A single-device arm or binocular bridge
• The correct device-side adapter for the HS210M
• A retention lanyard or secondary retention system
• Appropriate balance or counterweight equipment when needed

DNT specifies a dovetail binocular bridge compatible with Wilcox or KVC/RQE-style formats. However, the bridge still needs the correct optic-side interface for the HS210M. A standard dovetail connection alone does not guarantee that the thermal will attach directly.

Thermal Bros Helmet and Headgear Options

CDI Bighorn High Cut Ballistic Helmet IIIA

The Combat Defense CDI Bighorn High Cut Ballistic Helmet IIIA is the strongest structured helmet option currently available from Thermal Bros. It includes a front shroud for compatible night-vision mounting systems, accessory rails and an adjustable retention system.

A structured helmet generally provides more stability than soft headgear, especially when adding a bridge, multiple devices, hearing protection, lights or a counterweight. The Bighorn makes the most sense when ballistic protection is genuinely needed or the user wants a more stable platform for a complete helmet system.

The helmet is available in multiple sizes, so head circumference should be measured before ordering. The helmet, mount, bridge and HS210M interface still need to be matched as a complete system.

AGM Soft Headgear With Mounting Plate

The AGM Soft Headgear with Mounting Plate is a lighter alternative for buyers who want hands-free observation without the weight and cost of a ballistic helmet.

Soft headgear may make sense for stationary scanning, shorter observation sessions and lighter single-device configurations. It is generally less stable than a structured helmet during extended movement or when supporting a heavier bridge and dual-device setup.

Compatibility warning: The AGM headgear includes a mounting plate, but its product page does not specifically confirm direct HS210M compatibility. The complete connection between the headgear, helmet mount, bridge and HS210M adapter must be verified before ordering.

Thermal Bros Mount and Bridge Options

Universal Dual Bridge Helmet Mount Kit: Best Value

The Universal Dual Bridge Night Vision & Thermal Helmet Mount Kit is the value-oriented option. It includes an adjustable helmet mount and dual-optic bridge designed around a standard dovetail-style mounting system.

This kit is worth considering for buyers who want:

• A helmet mount and bridge in one package
• A single thermal configuration that may expand later
• Dual compatible monoculars
• A mixed thermal and night-vision setup
• A lower-cost alternative to a premium mounting system

The universal system should not be treated as a guaranteed direct-fit HS210M mount until the required optic-side adapter is confirmed. Contact Thermal Bros with the exact intended configuration before ordering.

UNV Ultimate Helmet Mount: Premium Adjustable Option

The UNV Ultimate Helmet Mount Kit with Bridge & Bino Adapter is the premium option for users who want greater adjustment and expect to reconfigure or expand their helmet setup.

It provides independent positioning for each optic, including vertical, lateral, tilt and fore-and-aft adjustment. That flexibility becomes especially valuable when combining two different devices that do not share the same shape, eye relief or ideal mounting position.

The UNV Ultimate can support single-optic, dual-monocular, binocular and mixed thermal/night-vision configurations. It makes the most sense for serious helmet users who expect to change devices or add a second optic later.

As with the Universal Dual Bridge, confirm the required HS210M device-side adapter before ordering. The mount's broad adjustability does not automatically mean the HS210M connects directly without additional hardware.

Which Helmet Mount Should You Choose?

If you only intend to run one HS210M, the simplest compatible single-device solution may ultimately be lighter and less expensive than a dual bridge. At this time, Thermal Bros should confirm the exact DNT adapter and mounting chain before recommending either system as a direct-fit package.

Review our complete helmet setup guide for a deeper explanation of helmets, shrouds, mounts, bridges, balance and optic selection.

Why the HS210M Works as a Helmet-Mounted Thermal

Wide Field of View

The 10mm objective lens produces a published field of view of approximately 30.7 × 23 yards at 100 yards. That wide view helps the user maintain awareness of the surrounding area instead of seeing a tightly magnified portion of the scene.

Nominal 1× View

A helmet-mounted thermal should not begin with excessive magnification. The HS210M's nominal 1× view is better suited to head movement and close-range observation than a thermal riflescope starting at 2×, 3× or higher.

Compact Device Weight

The HS210M weighs approximately 11.3 ounces before the helmet interface and bridge are added. Keeping the thermal itself compact helps control total front-mounted weight, although the complete system still needs to be fitted and balanced properly.

How to Plan the HS210M Helmet Setup

1. Choose the Helmet or Headgear

Choose between the structured CDI Bighorn High Cut Ballistic Helmet and lighter AGM Soft Headgear based on protection requirements, stability, expected wearing time and total system weight.

A helmet that does not fit correctly will shift under the weight of the optic. Proper sizing and adjustment are more important than appearance or the number of accessories attached.

2. Confirm the Shroud and Helmet Mount

The helmet mount connects the helmet shroud to the bridge or mounting arm. Confirm that the helmet or headgear accepts the selected mount and that the mount provides sufficient height, tilt and fore-and-aft adjustment.

3. Select the Mount or Bridge

Compare the Universal Dual Bridge Kit for a value-oriented system or the UNV Ultimate Helmet Mount for greater independent adjustment.

Do not assume either system attaches directly to the HS210M. Confirm the required DNT-compatible optic adapter before purchasing.

4. Fit the Optic to the User

Adjust the mounting position so the display aligns comfortably with the intended eye. Confirm eye relief, vertical position, lateral position and the ability to move the optic out of the way when it is not being used.

5. Balance the Helmet

A properly sized rear counter
