Zentron C50R 640 Thermal Clip-On

Quick Answer

The Zentron C50R is the flagship of the C Series clip-on line — a 640-sensor thermal clip-on with a 50mm lens and a built-in laser rangefinder, the only model in the series that has one. It mounts in front of your existing day scope so you keep your rifle, your optic, and your zero, and simply add thermal capability when the sun goes down. If you want to hunt at night without buying and re-zeroing a dedicated thermal scope, this is the most capable way Zentron offers to do it.

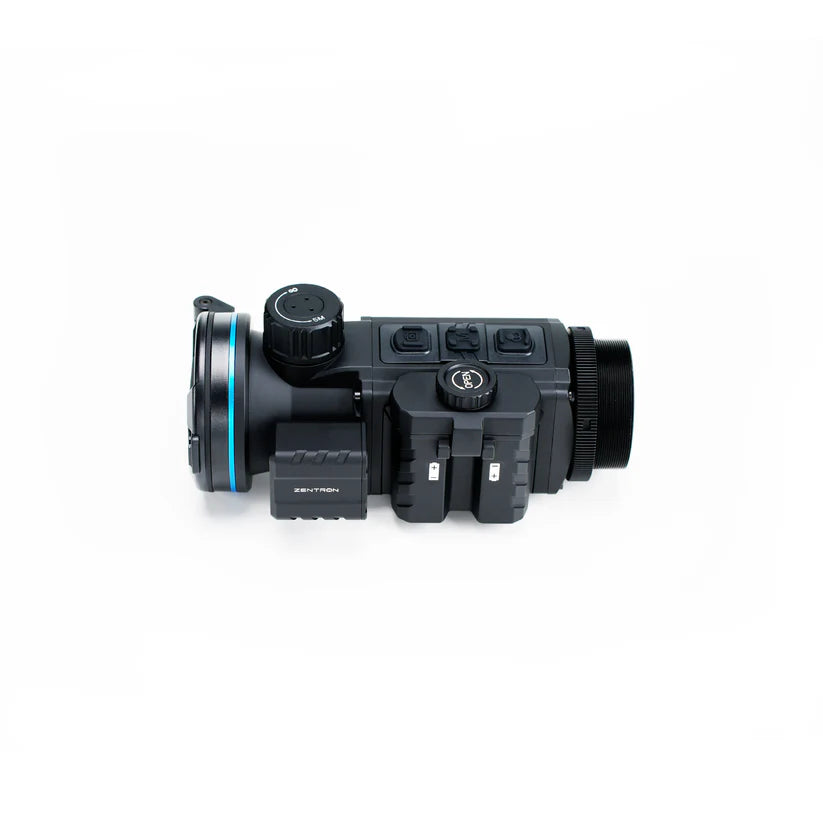

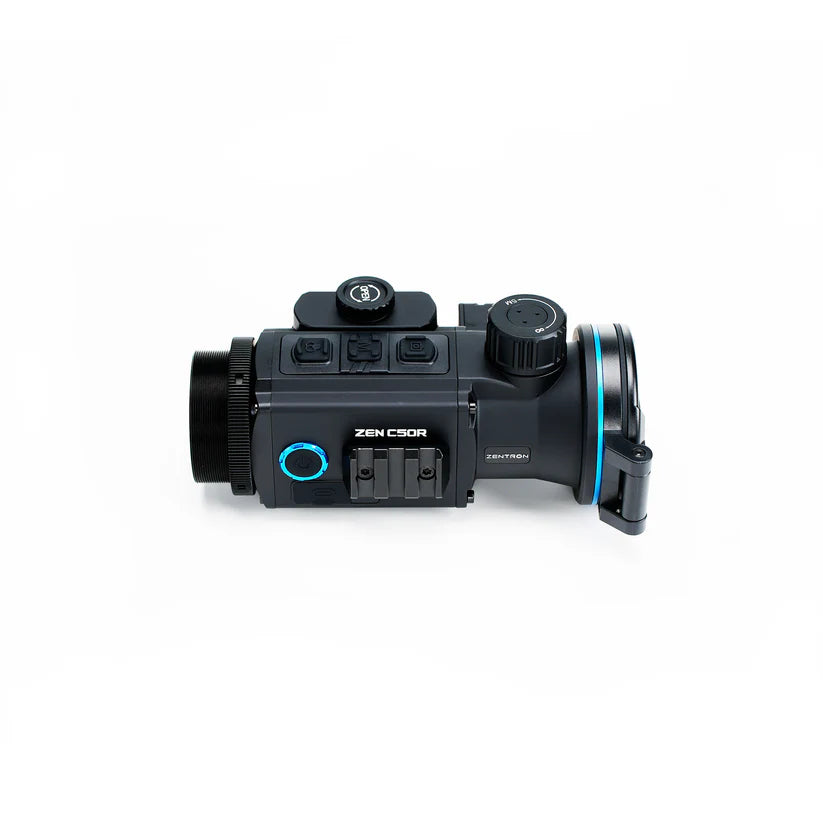

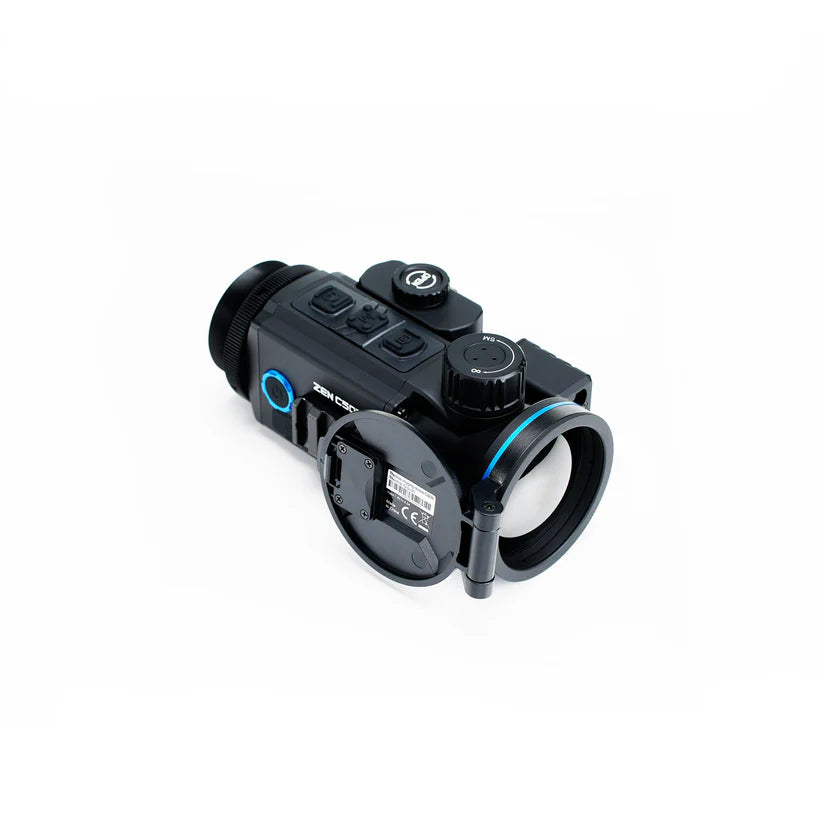

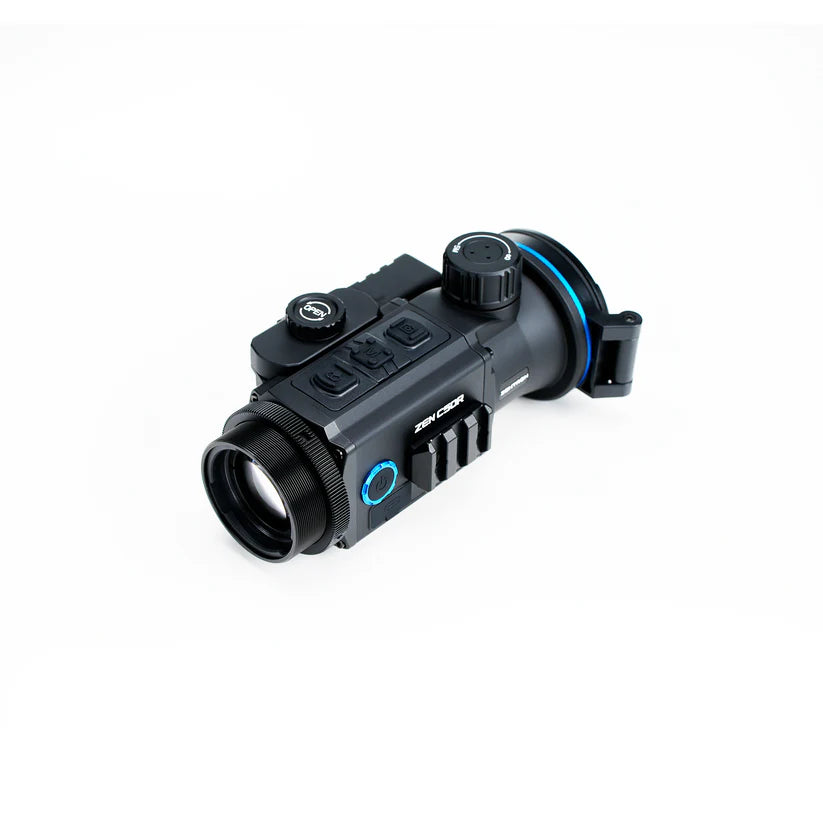

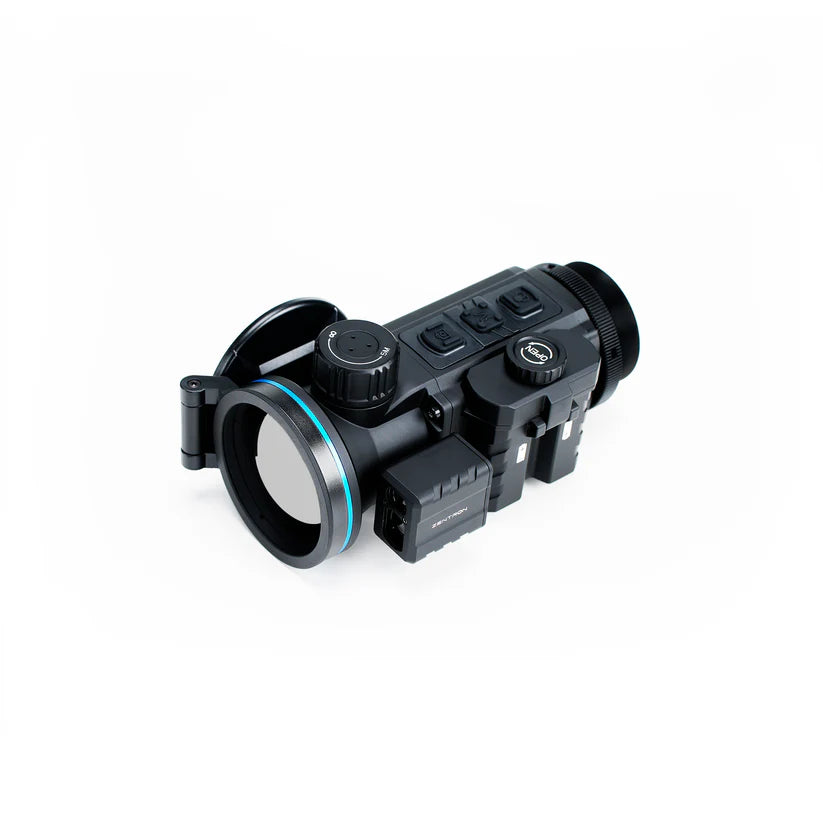

Zentron C50R thermal clip-on — 640 thermal clip-on with a 50mm lens and built-in laser rangefinder for coyote, hog, and predator hunting.

Full Description

What is a thermal clip-on and how is it different from a thermal scope?

A thermal clip-on is not a scope. It is a thermal device that mounts in front of the day scope you already own and shoot, projecting a thermal image through your existing optic. You look through your normal scope, using your normal reticle, at your normal magnification — the clip-on simply replaces what your eye sees with a thermal picture. A dedicated thermal scope, by contrast, replaces your day optic entirely: it has its own reticle, its own magnification, and it has to be zeroed on its own. That difference drives the whole buying decision. A clip-on means one rifle, one zero, and one optic you already trust, with thermal added on top when you need it. It also means you can move the clip-on between rifles far more easily than you could swap a full scope.

Who should buy a thermal clip-on instead of a dedicated thermal scope?

A clip-on makes the most sense if you already have a day scope you shoot well and don't want to give up, if you hunt in daylight as much as at night, or if you want thermal capability across more than one rifle without buying a thermal scope for each. It also appeals to hunters who don't want to learn and zero an entirely new optic. A dedicated thermal scope may be the better choice if you hunt almost exclusively at night, if you want the simplest possible setup with nothing stacked in front of your optic, or if you want thermal-native features like a purpose-built reticle. Neither one is better in the abstract — they solve different problems, and the right answer depends on how you actually hunt.

How does the Zentron C50R keep your zero?

The C50R runs at 1x magnification in clip-on mode, which is what allows it to sit in front of your day scope without changing your point of impact. Because it does not magnify the image itself, your day scope's magnification and your existing zero carry through. Zentron designed the C Series around a pre-zeroing process intended to hold a consistent point of impact when the unit is moved from one rifle to another. As with any clip-on, you should always confirm zero on your own rifle before hunting with it.

Will the Zentron C50R fit your day scope?

The C50R uses an M45 x 0.75 connection thread. Whether it mounts to your particular day scope depends on that scope's objective diameter and the adapter or ring you use to bridge the two — a clip-on does not thread directly onto most riflescopes without a matching adapter sized to your objective bell. Before ordering, check your day scope's objective diameter and confirm you have, or can get, an adapter that fits both your scope and the C50R's M45 x 0.75 thread. There is also physical clearance to consider: a clip-on adds length and weight forward of your optic, so your rail and mounting setup need room for it.

How good is the Zentron C50R's image quality?

The C50R uses a 640 x 512 thermal sensor, the highest resolution in the C Series. Resolution is how many pixels the device puts on your target: more pixels mean sharper edges, cleaner detail, and an animal that stays recognizable rather than dissolving into a soft shape. Paired with the 50mm f1.0 lens, that detail is concentrated at distance, giving the C50R the longest reach in the line. It also carries the most sensitive thermal detector in the C Series, which means it reads smaller temperature differences and holds separation between a warm animal and a cooler background in tough conditions like light fog, damp air, and fading contrast at dusk.

Why does the built-in laser rangefinder matter?

The C50R is the only model in the C Series with a built-in laser rangefinder — a Class 1 unit that reads distance out to 1200 meters with plus-or-minus one meter of accuracy. Distance is hard to judge through a thermal image, because you lose the familiar daylight cues your eye normally uses, and the farther out your target the more a small misjudgment of range shifts your point of impact. Having ranging built into the clip-on means you confirm distance without lowering the rifle or reaching for a separate handheld unit in the dark. This is the single feature that separates the C50R from the C50 below it.

How far can the Zentron C50R see?

The C50R has a detection range of up to 2600 meters, the longest in the C Series. Detection range is the distance at which the device can pick up a heat signature and tell you something warm is out there. Identifying that heat signature as a specific animal, and placing a confident shot, happens closer in and depends on target size, terrain, and weather. The 50mm lens and 640 sensor are what push the C50R's usable image to the far end of the line, making it the model for open country where game shows up at a distance.

Is the Zentron C50R built to hold up in the field?

Yes, and it is built for recoil in particular — a clip-on sits forward on the rifle and takes the full force of every shot. The C50R is rated to withstand recoil forces up to 1000g over 0.4ms, in a magnesium-aluminum body weighing 425 grams and rated IP67 against dust and water. Its soundless buttons keep operation quiet on a stalk. The virtual reticle feature overlays a reticle in your video recordings, which is useful for hunters who need to document shots while complying with rules limiting visible reticles in recorded content. Through the ZEN LINK app, pre-record automatically saves the seconds before and after your shot to your phone. Power comes from dual 18350 batteries good for up to 6 hours per set, and it ships with four rechargeable cells and a charger for a fast field-swap.

Where the C50R Fits in the Zentron C Series

Which Zentron C Series thermal clip-on is right for you?

The C Series is three thermal clip-ons on one shared platform, separated by sensor resolution, lens length, and whether they include a rangefinder. All three mount in front of your existing day scope and run at 1x so your zero carries through. Here's where each one lands:

• Zentron C50R: 640 sensor, 50mm lens, 2600m detection range, and the only built-in laser rangefinder in the series. The most capable clip-on Zentron makes, built for long-range hunting where exact distance matters.  — this model

• Zentron C50: the same 640 sensor, 50mm lens, and 2600m reach as the C50R, without the rangefinder — and the lightest clip-on in the series at 390g. Flagship image and reach in the leanest package.

• Zentron C35: a 384 sensor on a 35mm lens with 1800m of detection, and the longest battery life in the series at up to 7 hours. The practical-value entry point, matched to typical predator and hog distances.

Full Specifications

Sensor

Resolution: 640 x 512

Detector type: VOx uncooled

Pixel size: 12 μm

Frame rate: 50 Hz

Spectral range: 8–14 μm

NETD: High sensitivity (most sensitive in the C Series)

Optics

Objective lens: 50mm f1.0

Field of view: 8.7° (H) x 7° (V)

Magnification: 1x (clip-on)

Close-up range: 5m

Detection range: 2600m

Laser Rangefinder

Safety class: Class 1

Wavelength: 905nm

Max measuring range: 1200m

Min measuring range: 5m

Accuracy: ±1m

Mounting

Connection thread: M45 x 0.75

Display

Type: OLED

Resolution: 1920 x 1080

Power

Battery: 2 x 18350 (rechargeable)

Battery life: Up to 6 hours per set

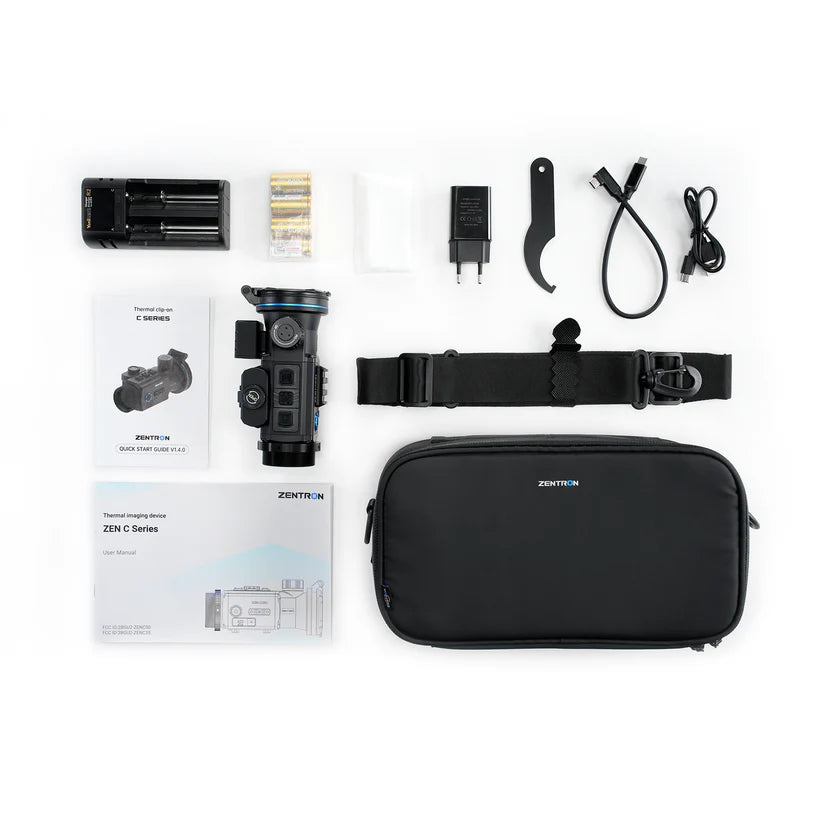

Included: 4 batteries + charger

Interface: Type-C

Build

Housing: Magnesium-aluminum alloy

Protection: IP67

Max recoil: 1000g / 0.4ms

Weight: 425g

Dimensions: 147 x 65 x 74mm

Features

Digital compass, auto screen-off, soundless buttons, virtual reticle in recordings, pre-record (via ZEN LINK app), easy mode, UI zoom, Wi-Fi / Bluetooth, 64GB internal memory, multiple color palettes.

FAQ

What is a thermal clip-on?

A thermal clip-on is a thermal device that mounts in front of your existing day scope rather than replacing it. You continue looking through your own optic and using your own reticle, but the image you see is thermal. It lets you add night capability to a rifle you already shoot without buying and zeroing a separate thermal scope.

Does a thermal clip-on change your zero?

A clip-on runs at 1x magnification specifically so it does not change your point of impact — your day scope's zero carries through. Zentron designed the C Series with a pre-zeroing process intended to hold a consistent point of impact when moved between rifles. As with any clip-on, you should always confirm zero on your own rifle before hunting.

Will the Zentron C50R fit my day scope?

The C50R uses an M45 x 0.75 connection thread. Fitting it to a specific riflescope depends on that scope's objective diameter and on using an adapter sized to bridge your objective bell to the C50R's thread. Check your day scope's objective diameter and confirm you have a compatible adapter before ordering. You also need physical clearance on your rail for the added length forward of your optic.

Does the Zentron C50R have a rangefinder?

Yes. The C50R is the only model in the Zentron C Series with a built-in laser rangefinder — a Class 1 unit reading distance out to 1200 meters with plus-or-minus one meter of accuracy. It lets you confirm range without lowering the rifle or reaching for a separate device.

Should I buy a thermal clip-on or a dedicated thermal scope?

A clip-on suits hunters who already have a day scope they shoot well, who hunt in daylight as much as at night, or who want thermal across more than one rifle without buying a thermal scope for each. A dedicated thermal scope suits hunters who hunt almost entirely at night and want a single, simpler optic with a thermal-native reticle. Neither is better in the abstract — they solve different problems.

What is the difference between the Zentron C50R and the C50?

The C50R and C50 share the same 640 sensor, 50mm lens, 2600-meter detection range, and field of view. The C50R adds the built-in laser rangefinder and carries the more sensitive detector in the series; the C50 leaves the rangefinder off and is lighter at 390 grams. Choose the C50R if you want ranging built in; choose the C50 for the same image and reach without it.

What can you hunt with the Zentron C50R?

The C50R is well suited to coyote, hog, and other predators and varmints. Its long detection range and detailed 640 image make it especially strong in open terrain, where game appears at a distance and you need both reach and a clear picture to identify your target.

Can a thermal clip-on handle rifle recoil?

The C50R is rated to withstand recoil forces up to 1000g over 0.4ms. This matters more on a clip-on than on most optics, because the device sits forward on the rifle and absorbs the full force of every shot.

Thermal Bros Take

The Zentron C50R is the C Series model to look at if you want a 640 thermal clip-on with a 50mm lens, more mounting flexibility, and a setup aimed at both bolt-action and AR-style platforms. It gives hunters a way to keep their daytime optic in place while adding high-detail thermal capability at night.

If you want the simpler 50mm 640 clip-on option, compare it against the Zentron C50. If you want a smaller, more affordable 384 clip-on for normal hunting distances, look at the Zentron C35. If you hunt open fields, crop edges, pastures, or longer setups and want the more flexible 50mm C Series clip-on, the Zentron C50R is the stronger fit.
