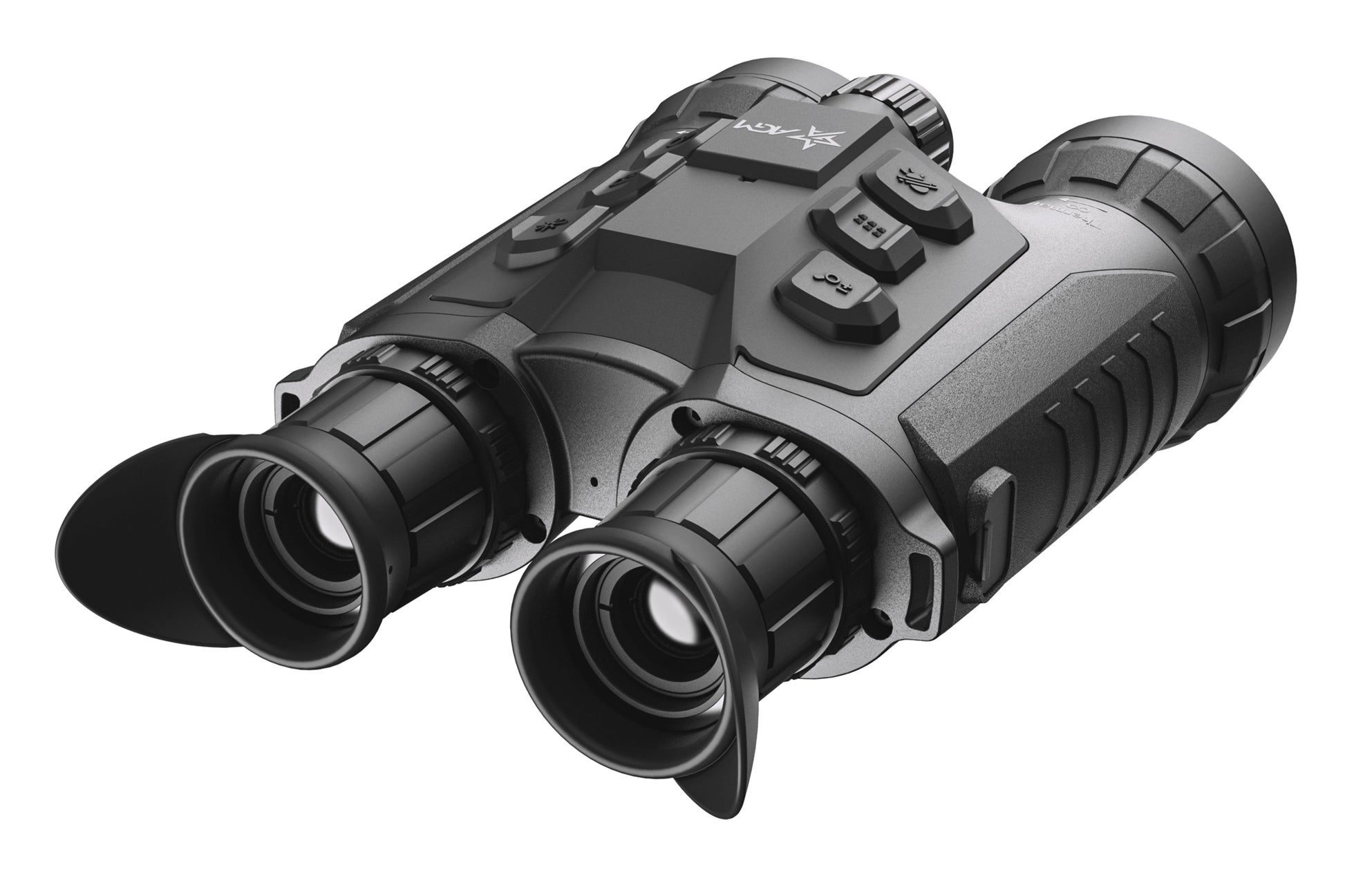

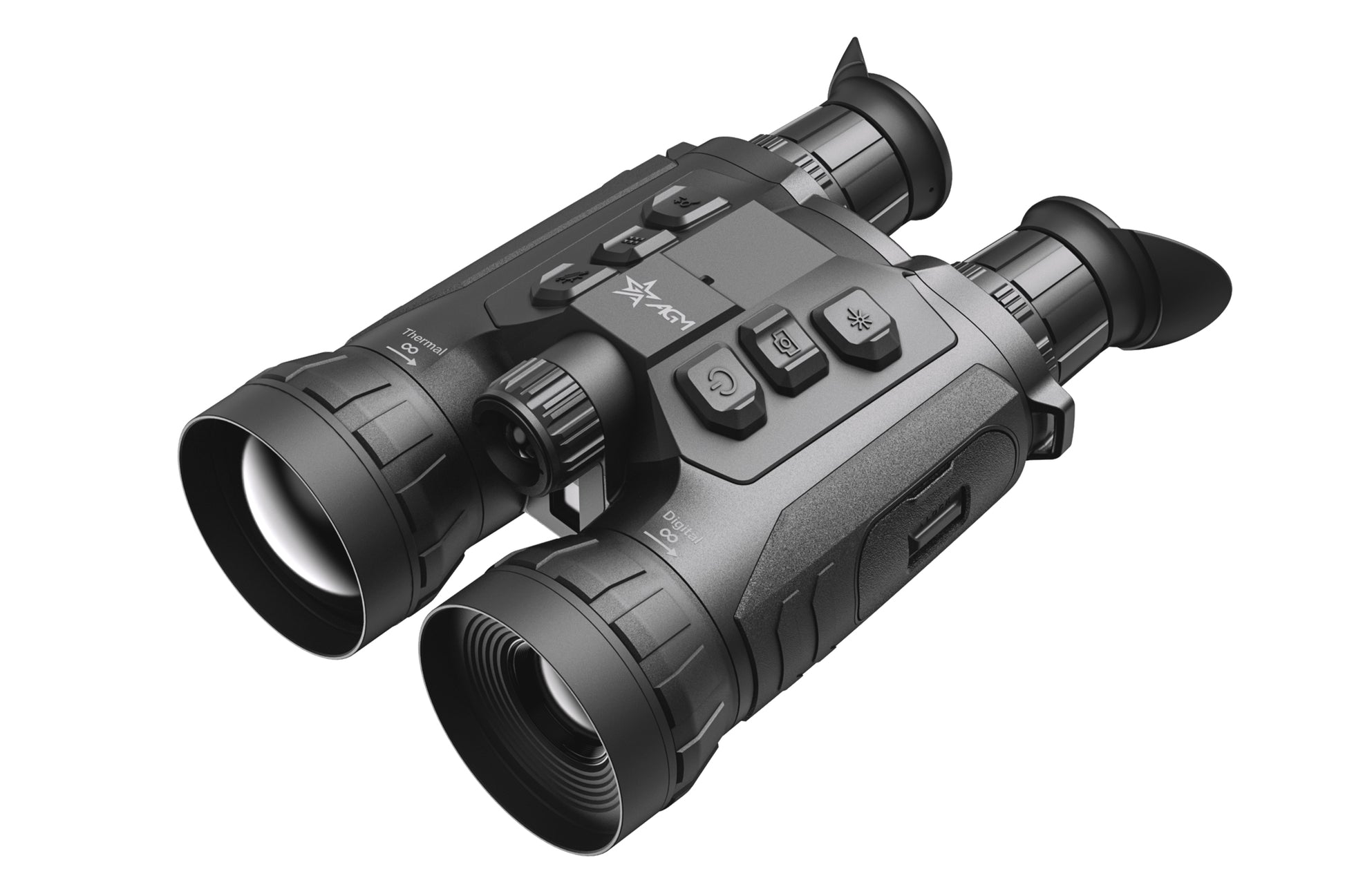

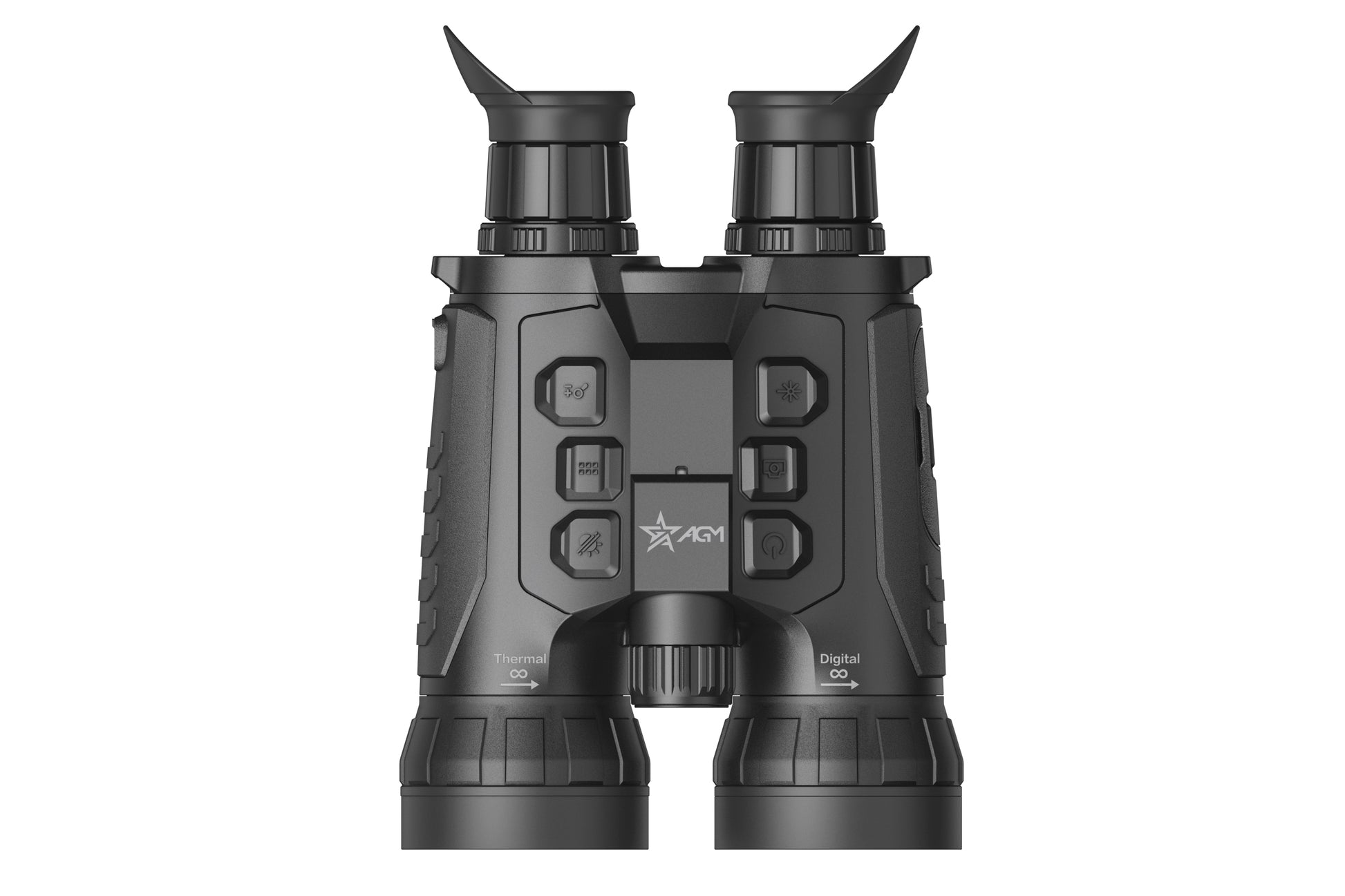

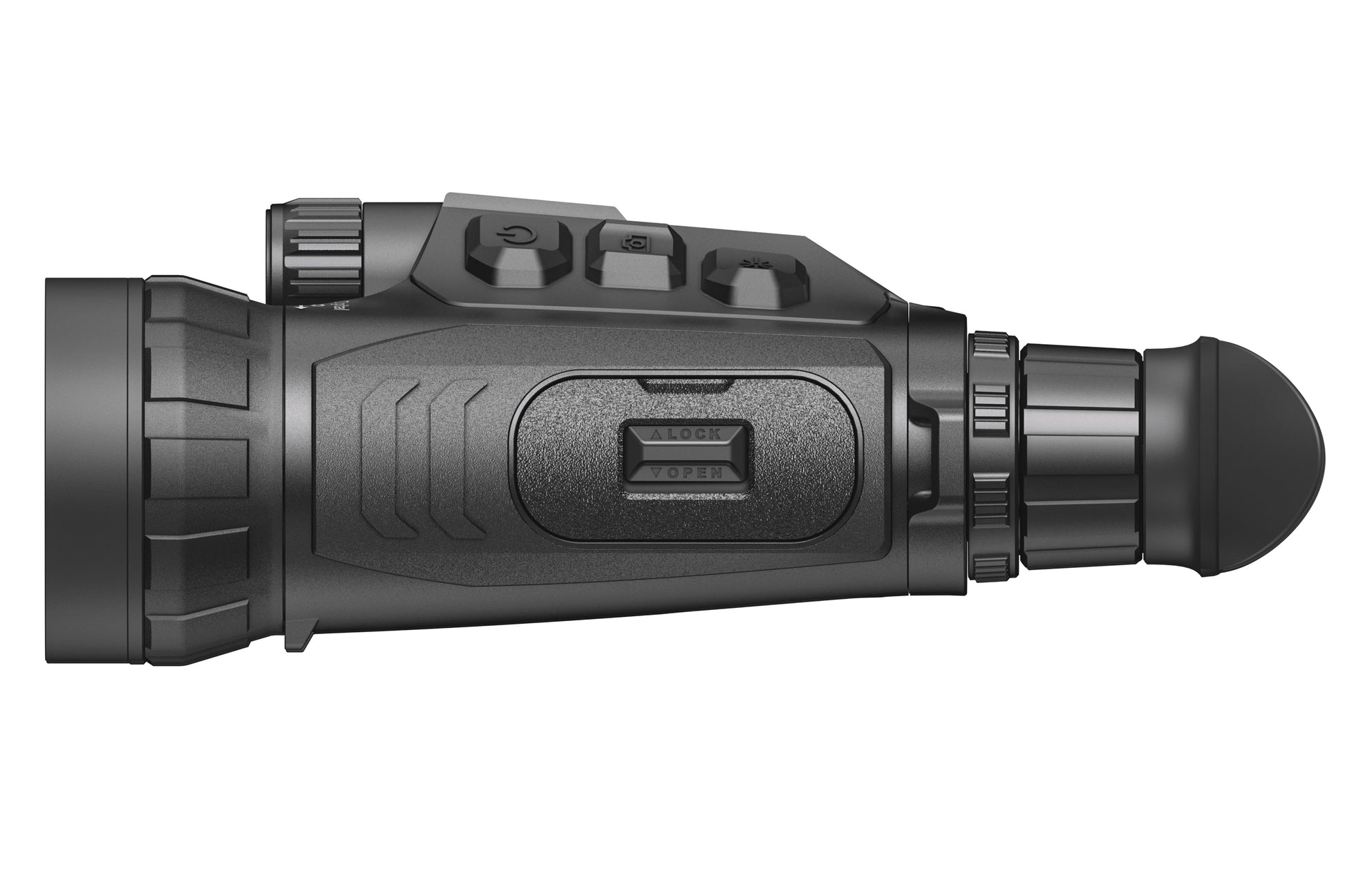

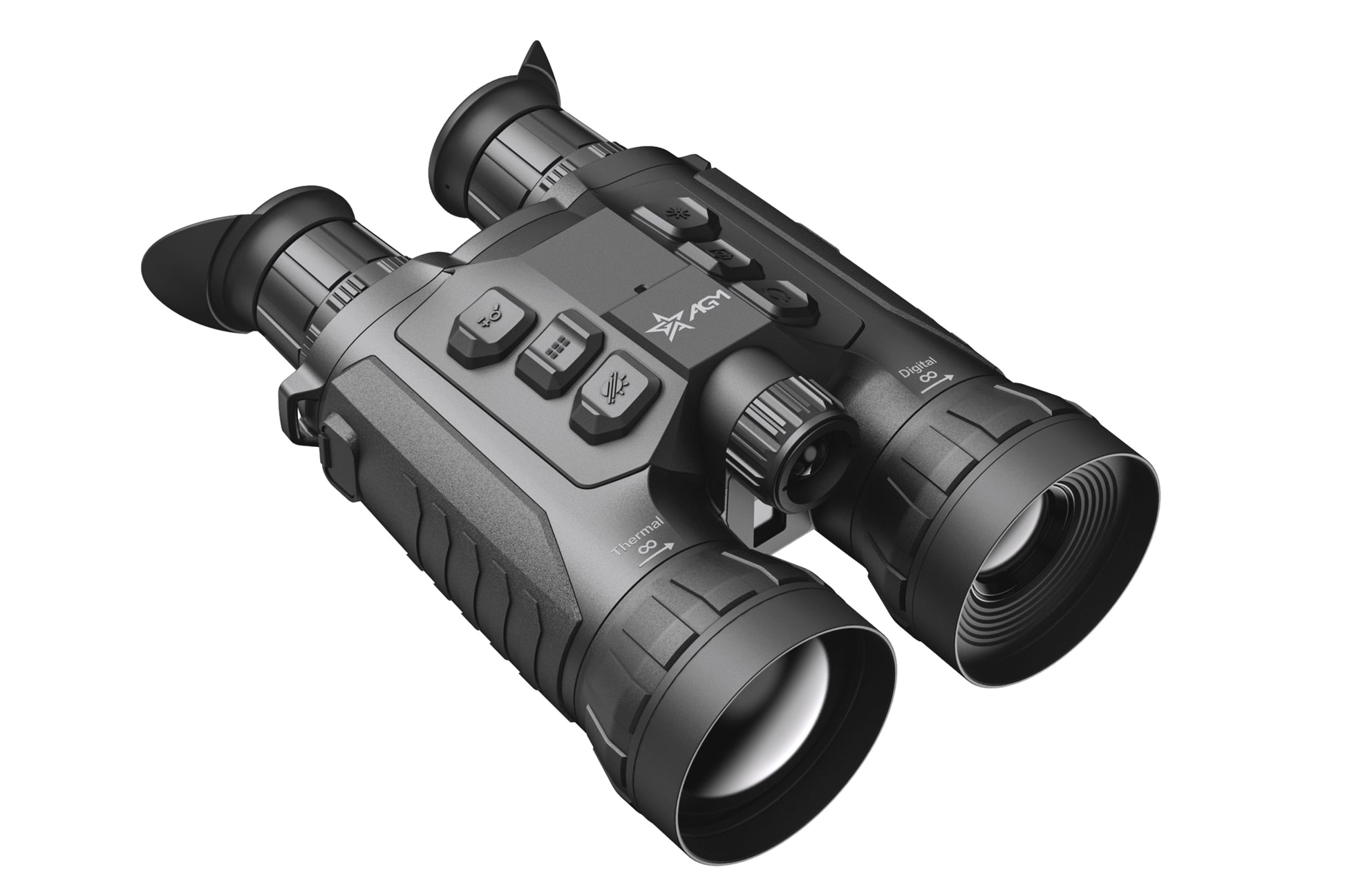

AGM ObservIR LRF 60-1280 Thermal Binoculars

AGM ObservIR LRF 50-640 Thermal Binocular Overview

The AGM ObservIR LRF 50-640 is a handheld dual-spectrum observation binocular built for long-range detection, recognition, and ranging. It combines a 640 × 512 thermal channel, a 4K digital day/night channel, and a 1,000-meter laser rangefinder into a single dual-eye viewing platform.

The thermal channel uses a 640 × 512 thermal sensor with a 12 μm pixel pitch, <15 mK NETD, and a 50 mm F/1.0 objective lens. AGM rates the thermal detection range at up to 2,600 meters on a 6-foot object. Compared to the ObservIR LRF 35-640, the 50-640 prioritizes longer-range observation and target detail at distance.

The integrated 4K digital day/night channel helps identify what the thermal channel detects, while the built-in laser rangefinder provides precise distance measurements out to 1,000 meters. Together, these systems allow users to detect, identify, and range targets without switching devices.

Where the ObservIR LRF 50-640 Fits

Thermal Bros carries three AGM ObservIR LRF binoculars. They share the same dual-spectrum platform, including thermal imaging, digital day/night viewing, laser ranging, GPS, compass functionality, onboard recording, and Wi-Fi connectivity. The primary differences are thermal resolution, objective lens size, field of view, and detection range.

• AGM ObservIR LRF 35-640 — 35 mm thermal lens, 640 × 512 thermal sensor, wider field of view, and 1,800 m detection range.
• AGM ObservIR LRF 50-640 — 50 mm thermal lens, 640 × 512 thermal sensor, and 2,600 m detection range for extended observation.
• AGM ObservIR LRF 60-1280 — 60 mm thermal lens and 1280 × 1024 thermal sensor for maximum image detail and performance.

Choose the 50-640 when longer detection distance matters more than wide-area scanning. Choose the ObservIR LRF 35-640 if you want a wider field of view and a lighter package. Step up to the ObservIR LRF 60-1280 if maximum thermal resolution is your priority.

Why Dual-Spectrum Viewing Matters

Thermal imaging excels at detection because heat signatures stand out regardless of lighting conditions. However, thermal images can sometimes make identification difficult. A heat signature may reveal that something is present, but not always exactly what it is.

The ObservIR LRF addresses this challenge by pairing thermal imaging with a dedicated digital day/night channel. Users can detect a target with thermal, switch to the optical channel for additional visual detail, and immediately confirm distance with the integrated rangefinder.

This detect-identify-range workflow is what separates the ObservIR LRF series from traditional thermal-only binoculars and monoculars.

Key Features

• 640 × 512 thermal sensor for detailed thermal detection and observation.
• 12 μm pixel pitch VOx thermal sensor.
• <15 mK NETD for improved image detail in challenging thermal conditions.
• 50 mm F/1.0 thermal lens optimized for long-range observation.
• 2,600 m thermal detection range on a 6-foot object.
• 4.5×–20× thermal magnification.
• 4K digital day/night channel with dedicated optical lens.
• Built-in 850 nm IR illuminator for nighttime digital viewing.
• Laser rangefinder with 1,000 m maximum range and ±1 m accuracy.
• GPS and digital compass for navigation and positional awareness.
• 1920 × 1080 OLED display with 50 Hz refresh rate.
• 64 GB internal storage for video, audio, and image capture.
• Wi-Fi hotspot functionality through the AGM Connect app.
• IP67-rated housing for waterproof and dustproof protection.
• Two rechargeable NE-7255 battery packs included.

Who This Is For

• Hunters who need long-range thermal detection with optical confirmation.
• Ranchers monitoring livestock, predators, or large properties after dark.
• Landowners who need thermal observation across open terrain.
• Professional observation and surveillance users.
• Buyers who prefer comfortable dual-eye viewing during extended observation sessions.
• Users who want more range than the ObservIR LRF 35-640 without moving to a 1280-resolution device.

Who Should Consider Something Else

The ObservIR LRF 50-640 is not designed to be weapon-mounted and does not include a reticle. If you need a thermal rifle scope, a dedicated thermal weapon sight is the better choice.

If most of your observation takes place in dense woods, smaller properties, or shorter distances, the ObservIR LRF 35-640 may be the better fit thanks to its wider field of view and lighter overall package.

If your goal is maximum thermal detail and image quality regardless of cost, the ObservIR LRF 60-1280 is the flagship option in the lineup.

Thermal Specifications

• Sensor Resolution: 640 × 512
• Pixel Pitch: 12 μm
• Sensor Type: VOx Uncooled Focal Plane Array
• NETD: <15 mK (25°C, F# = 1.0)
• Objective Lens: 50 mm F/1.0
• Magnification: 4.5×–20×
• Field of View: 8.8° × 5.3°
• Detection Range: 2,600 m
• Refresh Rate: 50 Hz
• Image Processing: AGM Image Boost 3.0

Digital Day/Night Specifications

• Sensor: 3840 × 2160 CMOS
• Sensor Size: 1/1.8"
• Objective Lens: 60 mm F/2.2
• Magnification: 5.5×–22×
• Field of View: 7.3° × 4.1°
• IR Illuminator: Built-in 850 nm Smart IR

Laser Rangefinder Specifications

• Maximum Range: 1,000 m
• Accuracy: ±1 m
• Laser Class: Class 1 Eye Safe
• Laser Wavelength: 905 nm

System Specifications

• Display: 1920 × 1080 OLED
• Display Size: 0.49"
• Storage: 64 GB EMMC
• Video Recording: Yes
• Audio Recording: Yes
• Snapshot Capture: Yes
• Wi-Fi: Yes
• GPS: Yes
• Digital Compass: Yes
• Battery: NE-7255 Rechargeable Li-ion
• Included Batteries: Two
• Runtime: Up to 8.5 Hours
• Charging: USB-C
• Waterproof Rating: IP67
• Operating Temperature: -20°C to +55°C
• Weight: 1.82 lb
• Dimensions: 9.0 × 5.8 × 3.1 in
• Warranty: AGM 5-Year Transferable Warranty

What's Included

• AGM ObservIR LRF 50-640 Thermal Binocular
• Two NE-7255 Rechargeable Battery Packs
• Battery Charger
• USB-C to USB-C Cable
• USB-A to USB-C Cable
• Power Adapter
• Tripod Adapter
• Neck Strap
• Lens Cloth
• Quick Start Guide
• Owner's Manual

Frequently Asked Questions

How is the ObservIR LRF 50-640 different from the ObservIR LRF 35-640?

The 50-640 uses a larger 50 mm objective lens and delivers a longer published detection range of 2,600 meters versus 1,800 meters on the 35-640. The tradeoff is a narrower field of view.

How far can the thermal channel detect?

AGM rates the thermal detection range at up to 2,600 meters on a 6-foot object.

How far does the laser rangefinder reach?

The integrated laser rangefinder measures distances up to 1,000 meters with ±1 meter accuracy.

Does the ObservIR LRF 50-640 include GPS?

Yes. The binocular includes both a built-in GPS module and a digital magnetic compass.

Can I record video and photos?

Yes. The device supports onboard video recording, audio recording, and image capture using its 64 GB internal storage.

Is the ObservIR LRF 50-640 waterproof?

Yes. It carries an IP67 waterproof and dustproof rating.

Can this be mounted on a rifle?

No. The ObservIR LRF 50-640 is a handheld observation binocular and is not designed to function as a thermal weapon sight.
