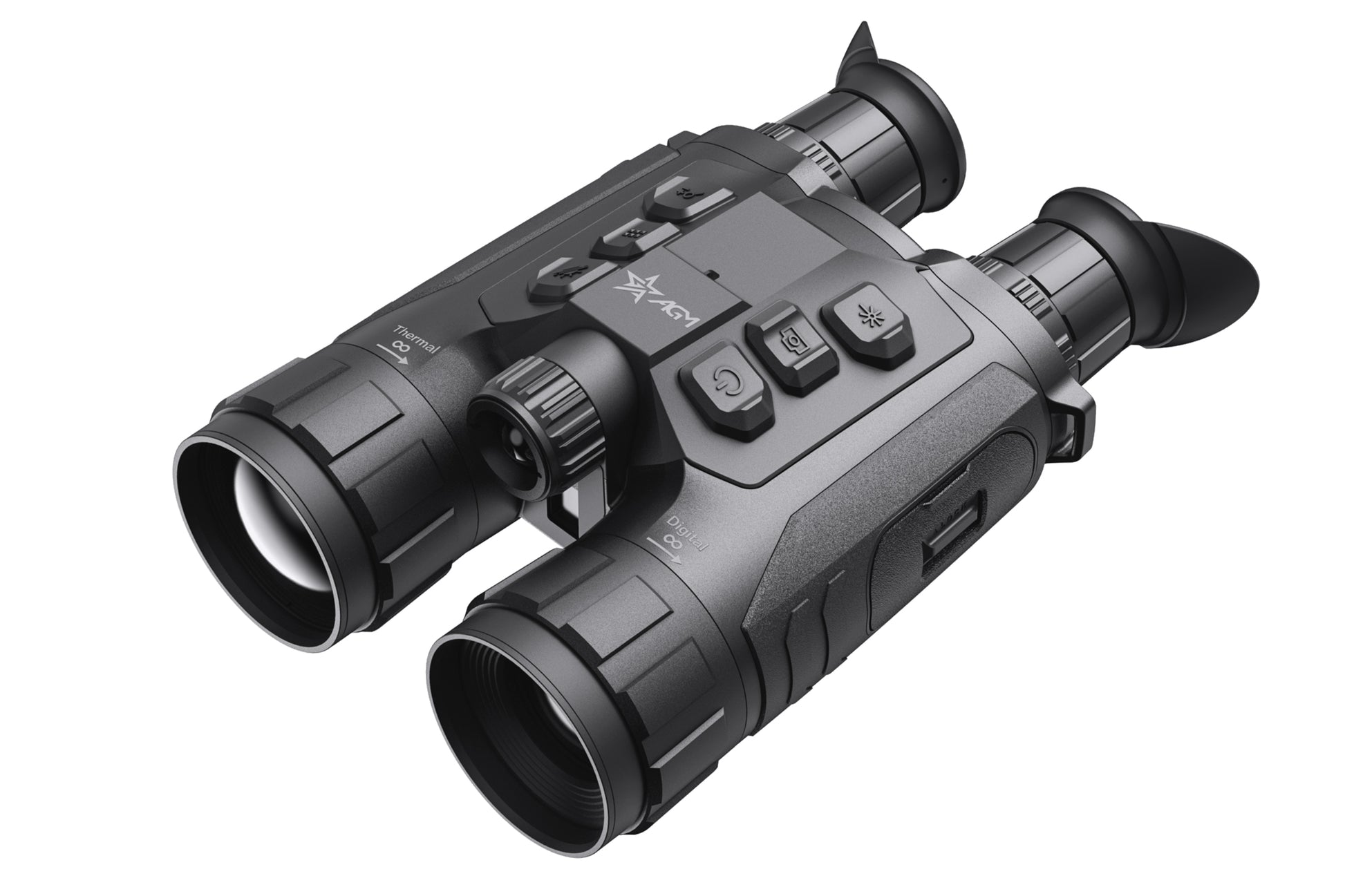

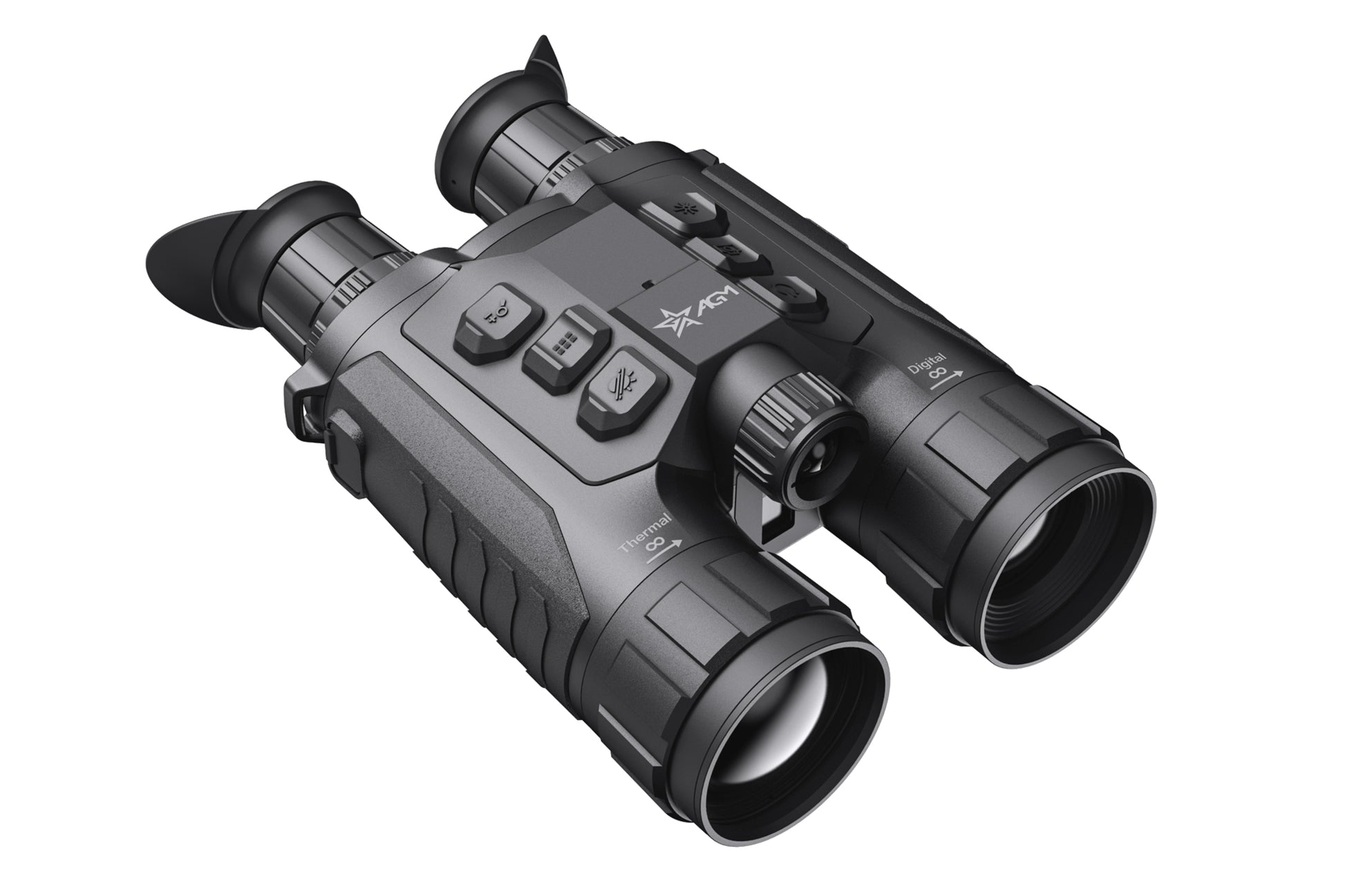

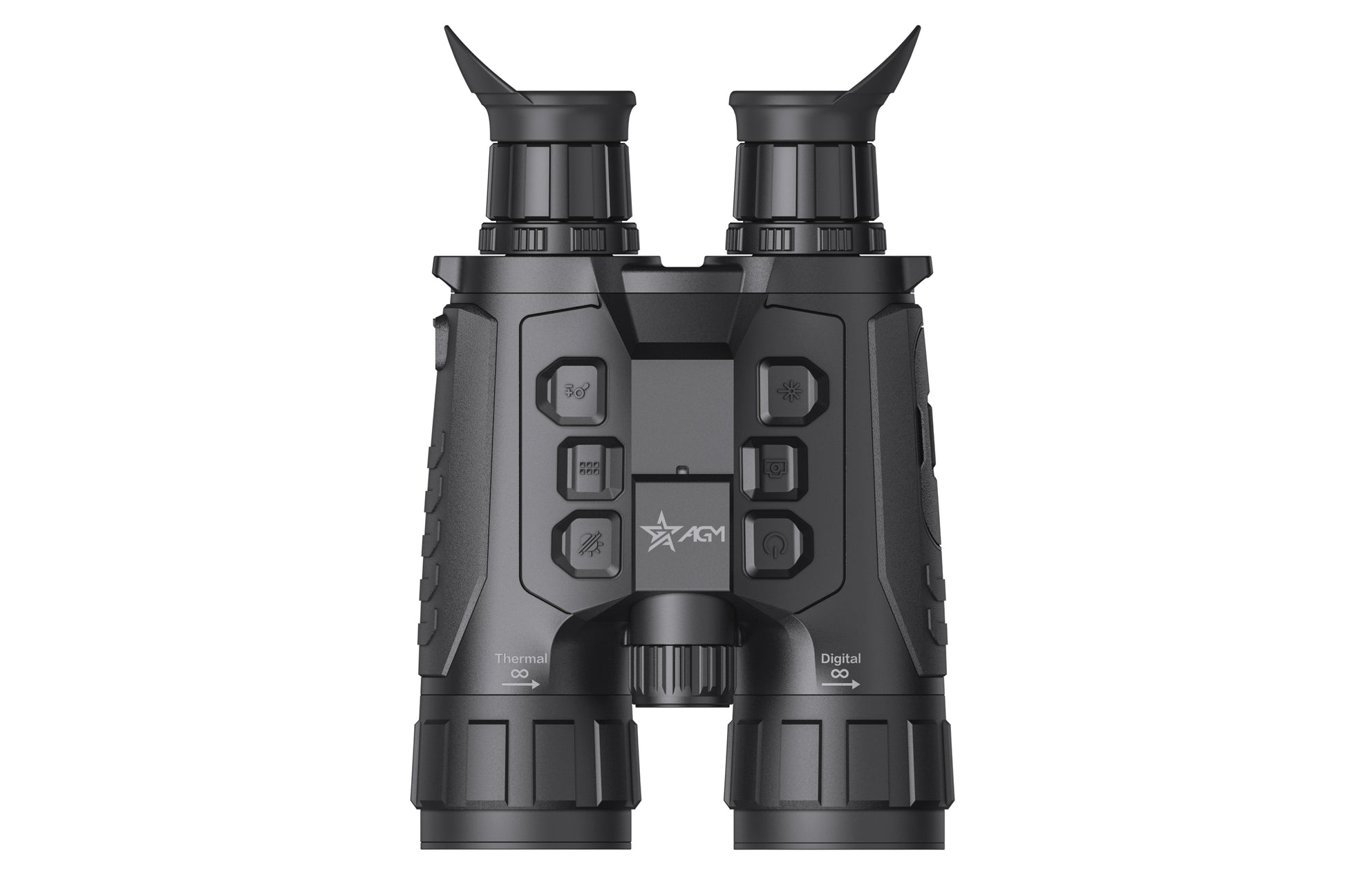

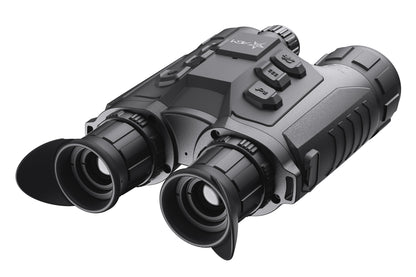

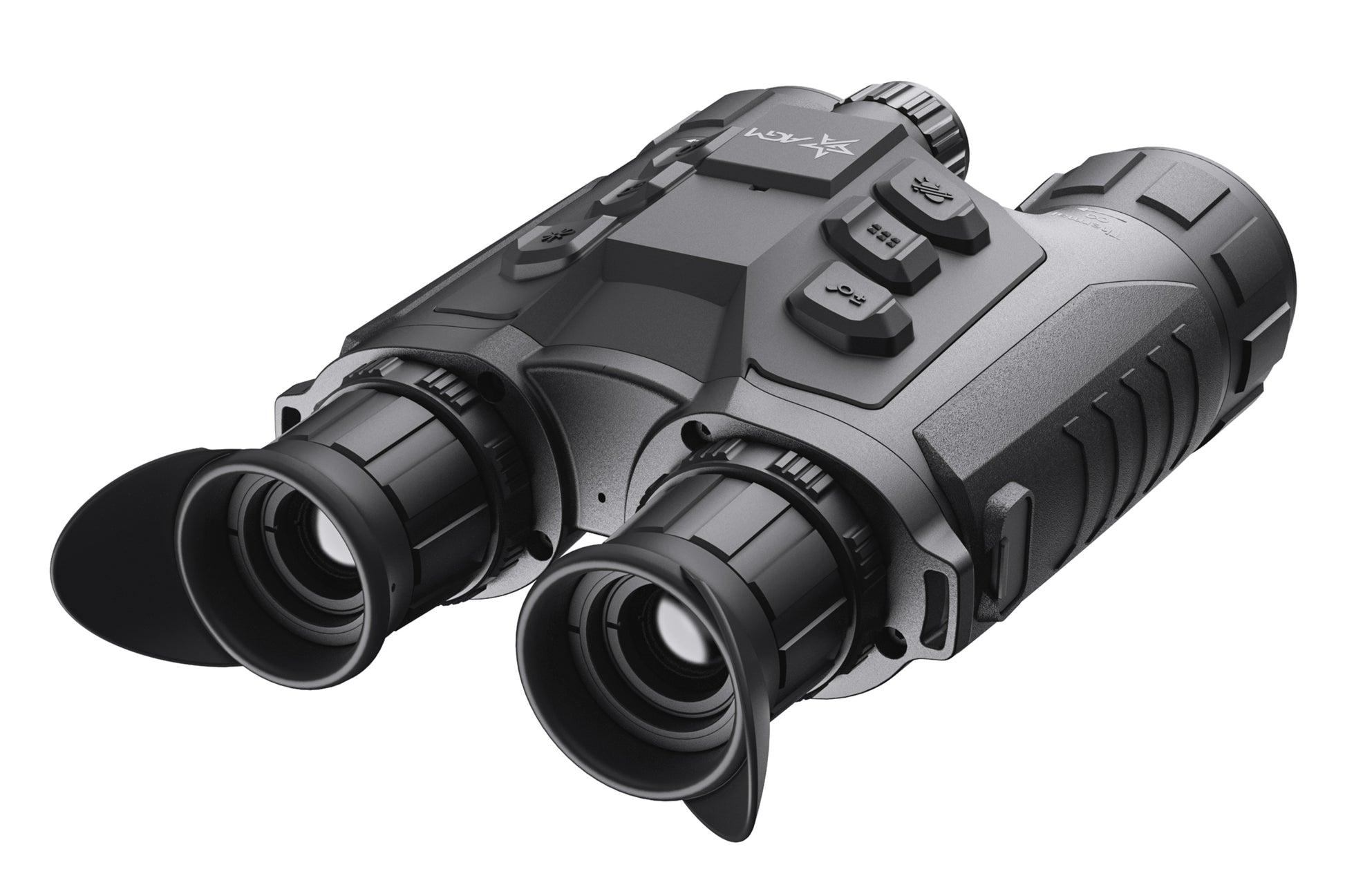

AGM ObservIR LRF 50-640 Thermal Binoculars

AGM ObservIR LRF 50-640 Thermal Binocular Overview

The AGM ObservIR LRF 50-640 is a handheld dual-spectrum observation binocular built for long-range detection, recognition, and ranging. It combines a 640 × 512 thermal channel, a 4K digital day/night channel, and a 1,000-meter laser rangefinder into one dual-eye device.

The thermal channel is the main reason to choose this model. It uses a 640 × 512 thermal sensor, 12 µm pixel pitch, <15 mK NETD, and a 50 mm F/1.0 lens. AGM lists the detection range at 2,600 meters, or about 2,844 yards, on a 6-foot object.

The digital day/night channel uses a 3840 × 2160 4K CMOS sensor, a 60 mm F/2.2 lens, and a built-in 850 nm IR illuminator. Thermal helps you detect heat. The digital channel helps confirm what you are looking at. The laser rangefinder gives you distance out to 1,000 meters.

Where the ObservIR LRF 50-640 Fits

Thermal Bros carries three AGM ObservIR LRF binoculars. They all share the same basic concept: thermal detection, digital day/night viewing, laser ranging, GPS, compass functionality, onboard recording, and Wi-Fi connectivity. The main differences are thermal resolution, objective lens size, field of view, detection range, and battery system.

• AGM ObservIR LRF 35-640 - 35 mm thermal lens, 640 × 512 thermal sensor, <15 mK NETD, 3-22× thermal magnification, and 1,800 m detection range. This is the wider-field, more compact option.
• AGM ObservIR LRF 50-640 - 50 mm thermal lens, 640 × 512 thermal sensor, <15 mK NETD, 4.5-20× thermal magnification, and 2,600 m detection range. This is the longer-reach 640-tier option.
• AGM ObservIR LRF 60-1280 - 60 mm thermal lens and 1280 × 1024 thermal sensor. This is the flagship option for maximum image detail.

Choose the ObservIR LRF 50-640 when longer detection distance matters more than wide-area scanning. Choose the AGM ObservIR LRF 35-640 if you want a wider field of view and a lighter, more compact package. Step up to the AGM ObservIR LRF 60-1280 if maximum thermal resolution is the priority.

Why Dual-Spectrum Viewing Matters

Thermal imaging is excellent for detection. Warm targets stand out against cooler backgrounds, even in darkness, light fog, or poor visibility. The limitation is identification. A thermal image can show that something is present, but it may not always clearly show what it is.

The ObservIR LRF solves that by adding a separate digital day/night channel. You can detect a heat signature with thermal, use the digital channel to help confirm what it is, and then use the built-in laser rangefinder to measure distance.

That detect-confirm-range workflow is what separates the ObservIR LRF series from a thermal-only binocular or monocular.

Why the 50 mm Thermal Lens Matters

The ObservIR LRF 50-640 uses a larger 50 mm F/1.0 thermal objective than the 35-640. That larger lens is what gives this model its longer published detection range of 2,600 m on a 6-foot object.

The tradeoff is field of view. The 50-640 starts at a higher 4.5× base magnification and has an 8.8° × 5.3° thermal field of view. That makes it better for open terrain and longer-range observation, but less ideal for fast scanning in tight woods, timber, or smaller properties.

Key Features

• Dual-spectrum design: separate thermal and digital day/night channels in one binocular.
• 640 × 512 thermal sensor: detailed thermal image quality for detection and observation.
• 12 µm pixel pitch: common high-performance thermal sensor architecture for this class.
• <15 mK NETD: helps maintain image detail when temperature differences are subtle.
• 50 mm F/1.0 thermal lens: gives this model its longer detection reach.
• 4.5-20× thermal magnification: higher base magnification for longer-range observation.
• 2,600 m detection range: AGM-published range on a 6-foot object.
• 4K digital day/night channel: helps confirm what the thermal channel detects.
• Built-in 850 nm IR illuminator: supports digital viewing in full darkness.
• 1,000 m laser rangefinder: measures distance with ±1 m accuracy.
• GPS and digital compass: add position and bearing reference in the field.
• 1920 × 1080 OLED display: dual-eye viewing with a 50 Hz refresh rate.
• 64 GB internal storage: supports video, audio, and snapshot capture.
• Wi-Fi hotspot: enables smartphone streaming and file transfer through the AGM Connect app.
• IP67-rated housing: waterproof and dustproof construction for field use.
• Rechargeable NE-7255 battery system: two battery packs included, with up to 8.5 hours of runtime.
• AGM 5-year transferable warranty: manufacturer-backed warranty coverage.

Who the ObservIR LRF 50-640 Is Best For

• Hunters who want long-range thermal detection with built-in optical confirmation and ranging.
• Ranchers and property managers watching livestock, predators, fence lines, or open land at night.
• Observation and surveillance users who need detection, recognition, and distance measurement in one handheld unit.
• Buyers who prefer dual-eye viewing for longer observation sessions.
• Users who want more reach than the 35-640 without stepping up to the 1280-resolution 60-1280.

Who Should Consider Something Else

The ObservIR LRF 50-640 is not a rifle scope and is not designed to be weapon-mounted. It has no reticle. If you need a thermal weapon sight, choose a dedicated thermal rifle scope instead.

This model may also be overkill if you mostly scan tight woods, smaller properties, or short-range areas. In those cases, the AGM ObservIR LRF 35-640 may be easier to use because of its wider field of view and more compact package.

If your priority is the highest available thermal resolution in this lineup, step up to the AGM ObservIR LRF 60-1280.

Full Specifications

Thermal Channel

• Thermal sensor: 640 × 512.
• Pixel pitch: 12 µm.
• Sensor architecture: 12 µm VOx uncooled focal plane array.
• NETD: <15 mK at 25°C, F# = 1.0.
• Thermal lens: 50 mm F/1.0.
• Thermal magnification: 4.5-20×.
• Thermal field of view: 8.8° × 5.3°.
• Detection range: 2,600 m on a 6-foot object.
• Image processing: AGM Image Boost 3.0.
• Refresh rate: 50 Hz.
• Color palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome.
• Scene modes: Jungle, Recognition.
• Flat field correction: Auto, Manual, External Correction.
• Highest-temperature spot tracking: yes.

Digital Day/Night Channel

• Digital sensor: 3840 × 2160, 1/1.8-inch progressive-scan CMOS.
• Digital lens: 60 mm F/2.2.
• Digital magnification: 5.5-22×.
• Digital field of view: 7.3° × 4.1°.
• IR illuminator: built-in 850 nm smart IR with adjustable power and beam angle.
• Image modes: Day, Night, Green, Yellow, Auto.

Laser Rangefinder

• Range: up to 1,000 m.
• Accuracy: ±1 m.
• Safety class: Class 1, eye-safe.
• Laser wavelength: 905 nm.

Shared System

• Display: 1920 × 1080, 0.49-inch OLED.
• Refresh rate: 50 FPS.
• Picture-in-picture: yes.
• GPS module: built in.
• Digital magnetic compass: yes.
• Video recording: yes.
• Audio recording: yes.
• Snapshot capture: yes.
• Storage: 64 GB EMMC.
• Wi-Fi hotspot: yes, through the AGM Connect app.
• Interpupillary distance: 60 mm to 74 mm.
• Diopter adjustment: -5 to +3.
• Standby mode: yes.
• Battery: replaceable rechargeable NE-7255 Li-ion battery pack, 7.18 V / 5400 mAh.
• Batteries included: two NE-7255 battery packs.
• Battery life: up to 8.5 hours continuous runtime.
• Power supply: 5 VDC / 2 A, USB Type-C.
• External power: supported through USB Type-C.
• Operating temperature: -20°C to +55°C, or -4°F to 131°F.
• Construction: IP67 waterproof and dustproof, rubber overmolding.
• Dimensions: 9.0 × 5.8 × 3.1 in, or 229 × 148 × 80 mm.
• Weight: 1.82 lb, or 0.83 kg.
• Warranty: AGM 5-year transferable manufacturer warranty.

What Comes in the Box

• AGM ObservIR LRF 50-640 thermal and digital binocular.
• Two NE-7255 Li-ion battery packs, 7.18 V / 5400 mAh.
• NE-7255 battery charger.
• USB-C to USB-C cable.
• USB-A to USB-C cable.
• Power adapter.
• Tripod adapter.
• Neck strap.
• Lens cloth.
• Quick start guide.
• Owner's manual.

Frequently Asked Questions

Where does the ObservIR LRF 50-640 fit in the ObservIR LRF lineup?

The ObservIR LRF 50-640 is the longer-reach 640-resolution option. It sits between the wider-field AGM ObservIR LRF 35-640 and the higher-resolution AGM ObservIR LRF 60-1280.

How is the ObservIR LRF 50-640 different from the 35-640?

The ObservIR LRF 50-640 uses a larger 50 mm thermal lens and has a longer published detection range of 2,600 m. The 35-640 uses a 35 mm lens, has a wider field of view, and is the better fit for closer-range scanning.

How far can the thermal channel detect?

AGM publishes the thermal detection range at 2,600 m, or about 2,844 yards, on a 6-foot object. Detection means the unit can register that a heat source is present. Identification distance will be closer.

How far does the laser rangefinder reach?

The built-in laser rangefinder measures distances up to 1,000 m with ±1 m accuracy. It is Class 1 eye-safe.

What batteries does it use?

The ObservIR LRF 50-640 uses removable rechargeable NE-7255 Li-ion battery packs. Two battery packs are included, and AGM rates runtime at up to 8.5 hours of continuous use.

Does the ObservIR LRF 50-640 have GPS?

Yes. The ObservIR LRF 50-640 includes a built-in GPS module and a digital magnetic compass.

Can it record video and photos?

Yes. The binocular supports video recording, audio recording, and snapshot capture. Files are stored on 64 GB of internal EMMC storage.

Is the ObservIR LRF 50-640 waterproof?

Yes. It has an IP67 waterproof and dustproof rating.

Is the ObservIR LRF 50-640 a rifle scope?

No. The ObservIR LRF 50-640 is a handheld observation binocular. It is not designed to be mounted to a rifle and does not include a reticle.
