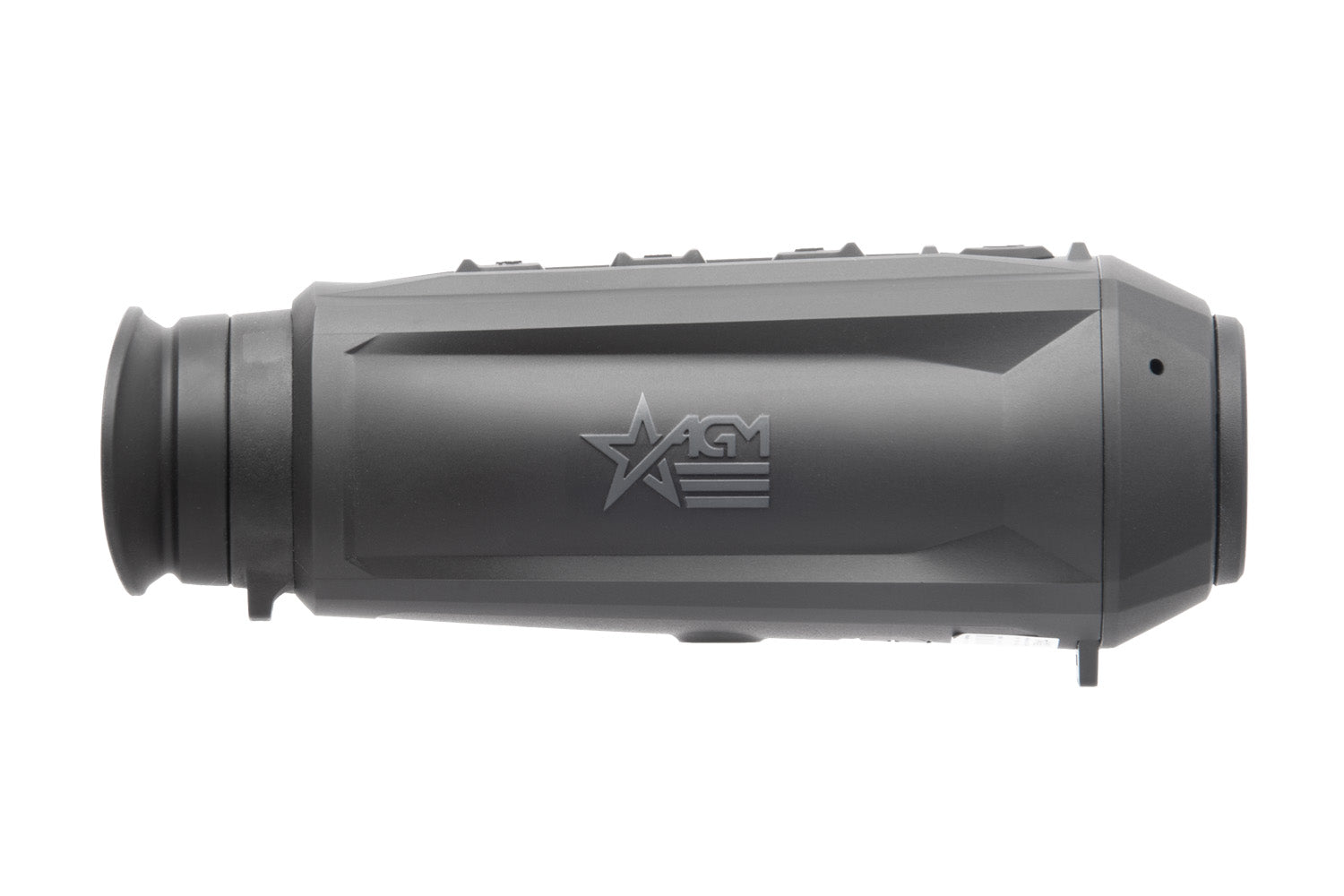

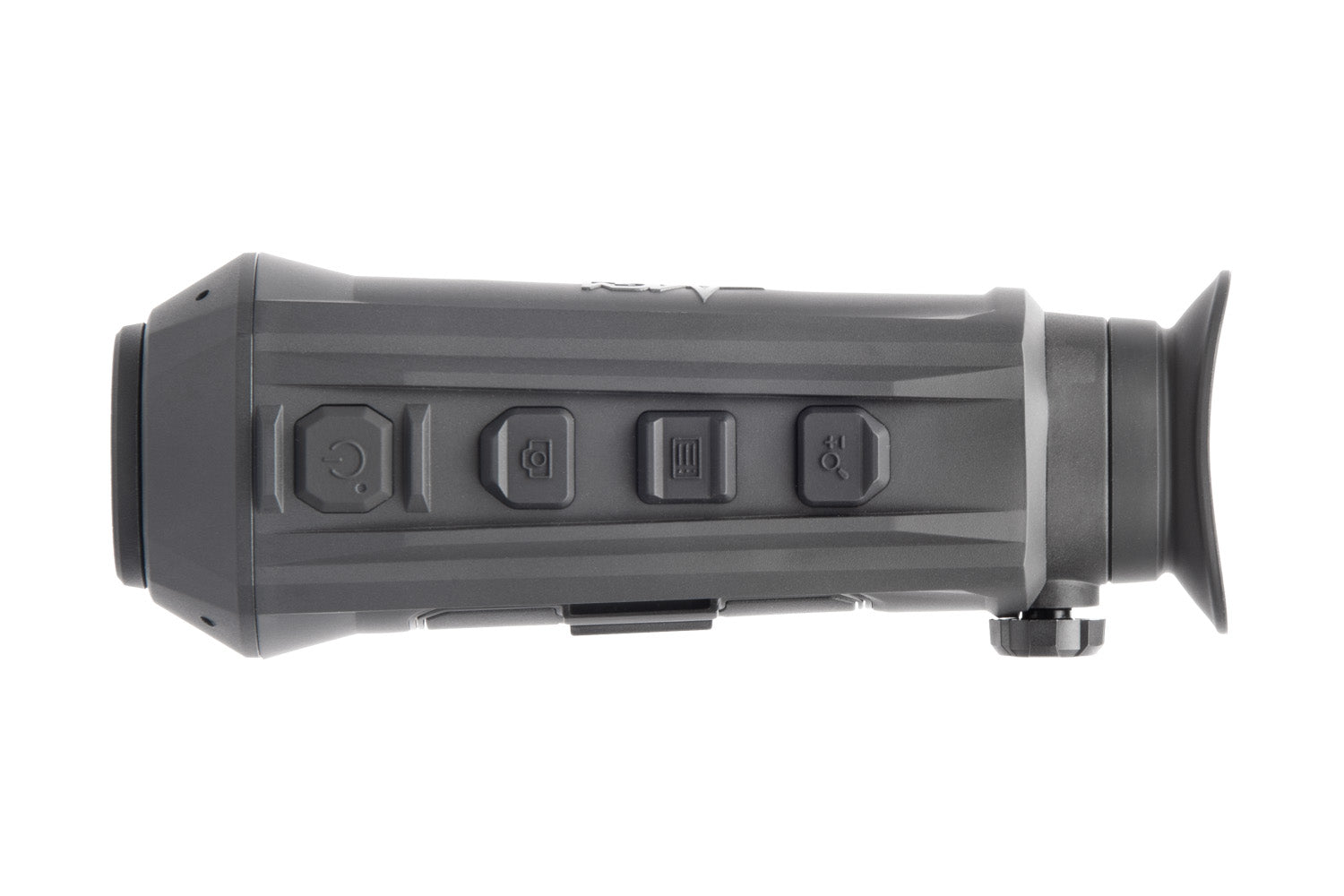

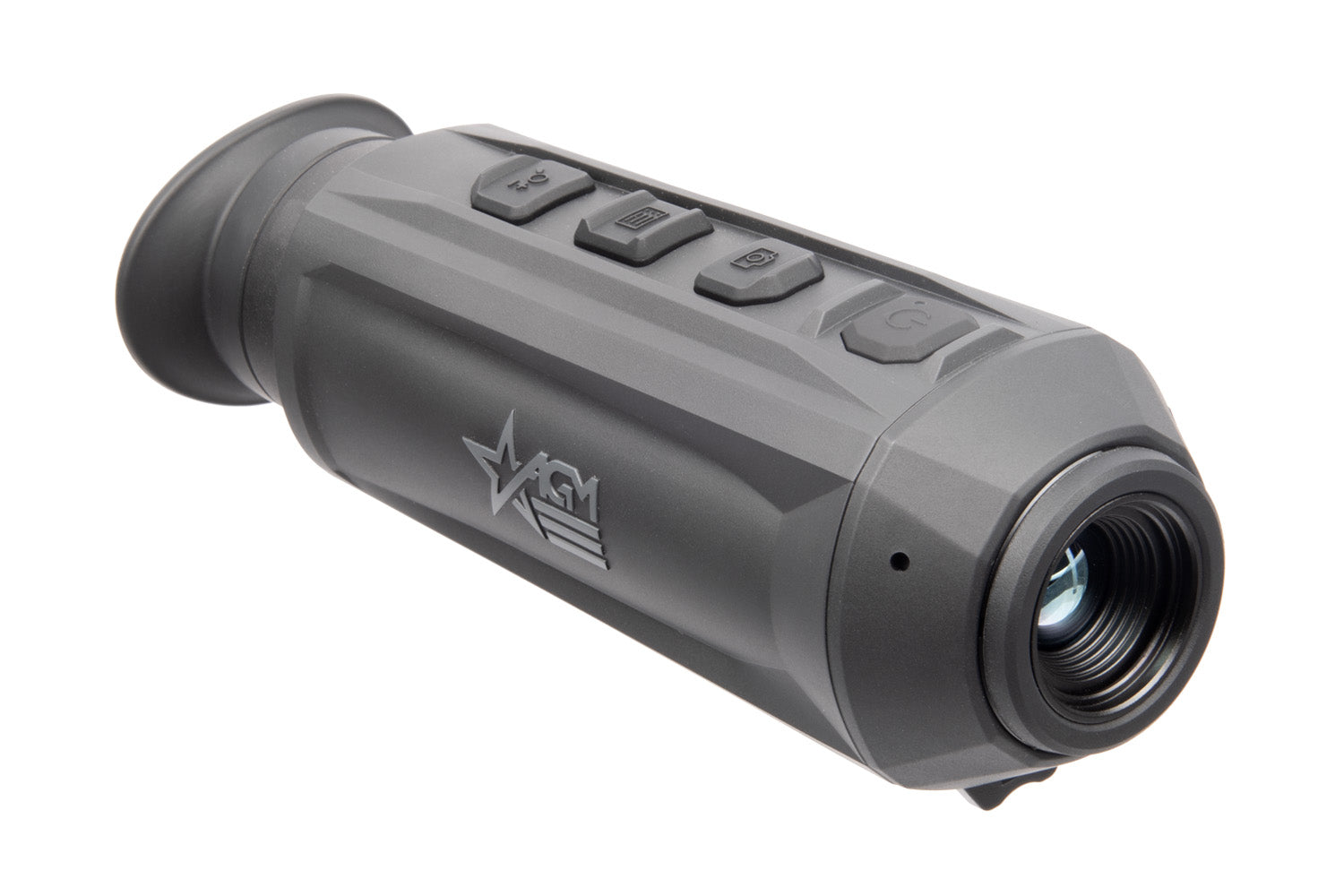

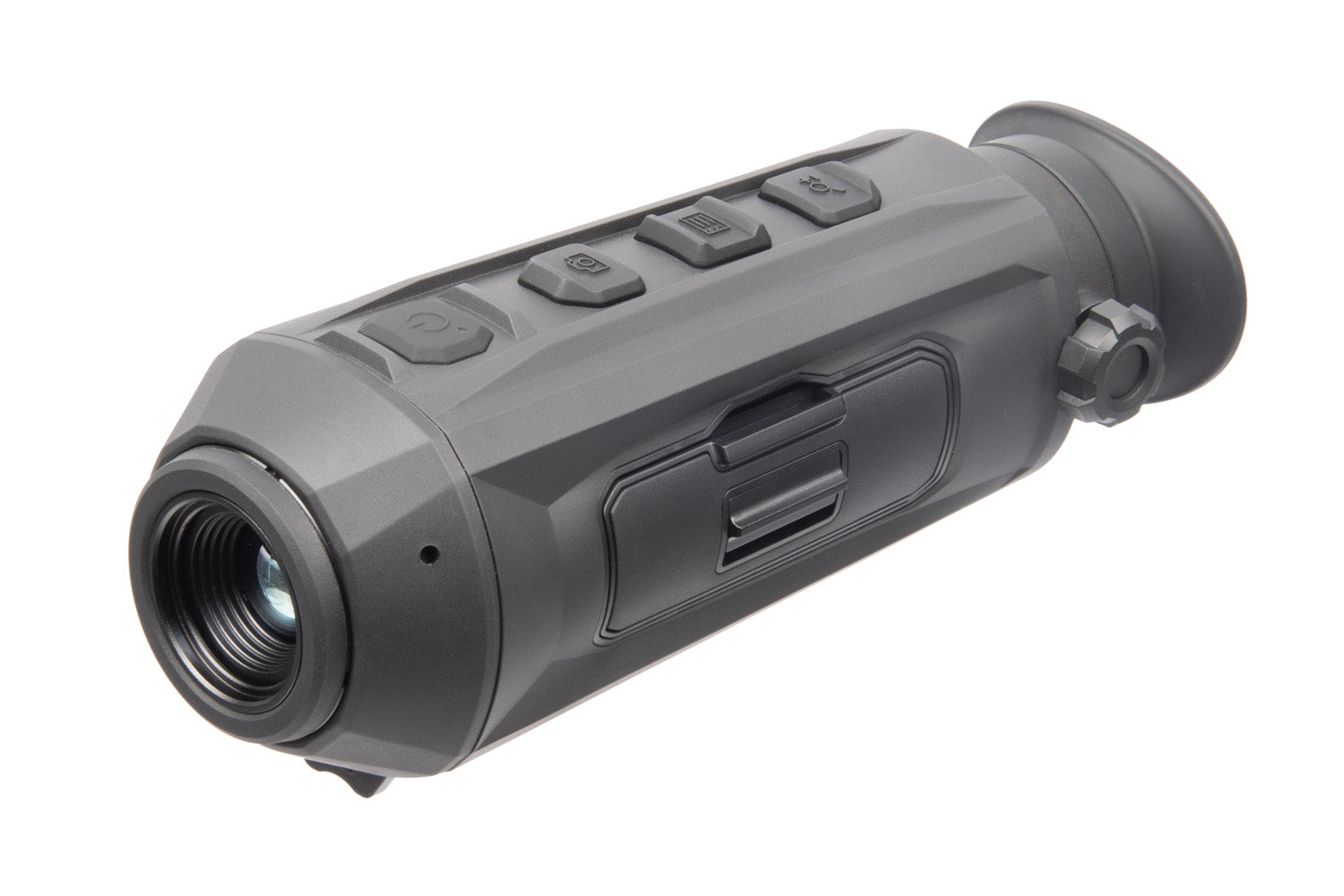

AGM TaipanV2 15-384 Thermal Monocular

The AGM TaipanV2 15-384 is a handheld thermal imaging monocular — a compact, single-eye thermal device for scanning terrain, spotting heat signatures, and observing in complete darkness, through fog, smoke, and other low-visibility conditions. It is not a weapon sight; it is a spotting and observation tool that pulls out for a quick thermal scan and stows away just as fast.

It pairs a 384×288 thermal sensor — built on a 12 μm pixel pitch with NETD rated at ≤20 mK at 25°C — to a 15 mm F/1.0 lens, delivering a wide 17.5° × 13.1° field of view and 780 m (about 853 yards) detection on a 6-foot object, displayed on a 1024×768 OLED at 50 Hz refresh.

What's new over the original Taipan

The TaipanV2 is the successor to AGM's original Taipan monocular. AGM moved several things forward in this generation:

• Removable, rechargeable 18650 battery. The original Taipan used a non-removable internal rechargeable battery — when it ran down in the field, the device was done until it could be recharged. The TaipanV2 moves to a single removable, rechargeable 18650 cell, so a charged spare can take over when the first runs down.
• Sub-20 mK thermal sensor. The TaipanV2 carries a 12 μm sensor rated at ≤20 mK NETD — improved sensor sensitivity for resolving smaller temperature differences.
• 90° tilt sensor. A tilt sensor powers the display off when the monocular is lowered and back on when it's raised to the eye — saving battery between scans without fully powering the device down.

Alongside those, the TaipanV2 carries the features common across AGM's current thermal lineup: F/1.0 aperture optics, 50 Hz refresh rate, 16 GB built-in memory, Wi-Fi pairing with the AGM Connect app, IP67 waterproof rating, a USB Type-C port for external power, and 4 color palettes. A wider rubber eyepiece makes extended viewing of the 1024×768 OLED display more comfortable over long sessions.

Why the 15 mm lens and wide field of view matter

The 15 mm F/1.0 lens produces 1.5× base optical magnification and a wide 17.5° × 13.1° field of view. For a handheld spotting monocular, a wide field of view is a priority feature.

When scanning terrain — sweeping a field, a tree line, a ridge, or the area around a camp — a wide field of view covers more ground per sweep and makes it easier to pick up heat signatures without panning slowly across a narrow window. The trade-off is reach: a 15 mm lens doesn't pull distant targets in as tightly as a longer lens would. For close-to-mid range scanning and spotting, that's a useful balance — the 15-384 is built to find heat quickly across a wide area, and digital zoom (up to 12× total) brings a spotted target in closer for a better look.

Why the ≤20 mK NETD sensor matters

NETD (Noise Equivalent Temperature Difference) measures the smallest temperature difference the sensor can resolve before electronic noise washes it out. Lower is better. The TaipanV2's ≤20 mK rating means the sensor resolves fine temperature differences cleanly — picking up subtle heat signatures, holding image detail in fog or light rain, and separating warm bodies from cooler backgrounds even when the temperature differential is small.

For a spotting tool, that sensitivity translates directly into how easily a user can find and identify what they're looking at — game hidden in brush, livestock at a distance, or a person during a search.

Why the tilt sensor and 18650 battery matter for field use

Two of the TaipanV2's features address the realities of handheld field use.

The 90° tilt sensor powers the OLED display off when the monocular is lowered from the eye and back on when raised. A handheld monocular gets raised and lowered constantly during a scanning session — the tilt sensor saves battery during the lowered moments without requiring a full power-down and the boot-up delay that comes with it.

The removable 18650 battery means runtime isn't capped by a sealed internal cell. The 18650 is a standard rechargeable cell format. AGM rates the TaipanV2 at over 6.5 hours of runtime, and because the cell is removable, a charged spare can be swapped in to extend a session.

What you get with the TaipanV2 15-384

• 384 × 288 thermal sensor with 12 μm pixel pitch. 384-tier resolution for clear thermal detail in a handheld spotting device.
• NETD ≤20 mK (25°C, F#=1.0). Sensor sensitivity for resolving subtle heat differences and holding image quality in marginal conditions.
• 15 mm F/1.0 lens. Wide-field lens producing 1.5× base magnification.
• 1.5×–12× magnification (1.5× base with 1×, 2×, 4×, 8× digital zoom).
• 17.5° × 13.1° field of view.
• 780 m (about 853 yards) detection range on a 6-foot object.
• 50 Hz refresh rate for smooth real-time imaging.
• 1024 × 768 OLED display with a wide rubber eyepiece for comfortable extended viewing.
• Color palettes: Black Hot, White Hot, Red Hot, Fusion.
• Picture-in-Picture mode.
• Stadiametric distance measurement.
• Highest-temperature spot tracking.
• Flat field correction: Auto, Manual, External Correction.
• 90° tilt sensor that powers the display off when lowered, on when raised.
• Video and audio recording; snapshot capture.
• 16 GB built-in storage.
• Wi-Fi hotspot with smartphone streaming and file transfer via the AGM Connect app.
• Removable rechargeable 18650 battery; over 6.5 hours of runtime.
• External power supply capability via USB Type-C.
• Diopter adjustment -5 to +3.
• IP67-rated waterproof construction with rugged rubber overmolding.
• Operating temperature range -30°C to +55°C (-22°F to 131°F).
• AGM 5-year transferable warranty.

Who the TaipanV2 15-384 is built for

• Hunters who want a handheld thermal spotter for locating game, scanning fields and tree lines, and blood-trailing and game recovery after a shot
• Farmers and ranchers monitoring livestock and protecting herds against predators at night
• Search and rescue users who need to locate people in darkness or low-visibility conditions
• Campers, boaters, and general outdoors users who want thermal observation for situational awareness
• Buyers who want a wide field of view for fast scanning over maximum reach
• Buyers who want a thermal device with a removable, standard 18650 battery rather than a sealed internal cell

The TaipanV2 15-384 is a spotting and observation monocular, not a weapon sight — it has no reticle and is not designed to be rifle-mounted.

Full specifications

• Thermal sensor: 384 × 288, 12 μm pixel pitch
• Sensor architecture: 12 μm vanadium oxide uncooled focal plane array
• Response waveband: 8 μm to 14 μm
• NETD: ≤20 mK (25°C, F# = 1.0)
• Lens system: 15 mm F/1.0
• Magnification: 1.5×–12× (1.5× base; 1×, 2×, 4×, 8× digital zoom)
• Field of view: 17.5° × 13.1°
• Detection range: 780 m (about 853 yards) on a 6-foot object
• Display: 1024 × 768 OLED
• Refresh rate: 50 Hz
• Diopter adjustment: -5 to +3
• Color palettes: Black Hot, White Hot, Red Hot, Fusion
• Picture-in-Picture: yes
• Distance measurement: stadiametric
• Highest-temperature spot tracking: yes
• Flat field correction: Auto, Manual, External Correction
• Tilt sensor: 90° auto screen-off
• Standby mode: yes
• Video/audio recording: yes
• Snapshot: yes
• Storage: 16 GB
• Wi-Fi hotspot: yes (AGM Connect app)
• Interface: USB Type-C
• Battery: removable rechargeable 18650 Li-Ion
• Battery life: over 6.5 hours
• Power supply: 5 VDC / 2 A, 1.75 W
• Operating temperature: -30°C to +55°C (-22°F to 131°F)
• Construction: IP67 waterproof, rubber overmolding
• Dimensions: 6.23 × 2.4 × 2.2 in (158 × 61 × 57 mm)
• Weight: 0.69 lb (0.3 kg)
• Warranty: AGM 5-year transferable manufacturer warranty

In the box: thermal monocular, 18650 rechargeable battery, battery charger, USB cable, power adapter (US and EU plugs), lens cloth, wrist strap, user manual, protective bag.

Frequently asked questions

What is the TaipanV2 15-384 used for?

It's a handheld thermal spotting and observation monocular. Common uses include hunting (locating game, scanning terrain, blood-trailing and game recovery), farming and herd protection, search and rescue, camping, boating, and general outdoor situational awareness. It is not a rifle scope — it has no reticle and is not designed to be weapon-mounted.

How far can the 15-384 detect?

AGM publishes a detection range of 780 m — about 853 yards — on a 6-foot object. Detection is the distance at which the sensor can register that something warm is present; it is not the same as identification distance, which is closer. The wide 17.5° × 13.1° field of view makes the 15-384 well-suited to scanning a broad area quickly.

What does the 90° tilt sensor do?

The tilt sensor powers the OLED display off when the monocular is lowered from the eye and turns it back on when the monocular is raised. Since a handheld monocular gets raised and lowered repeatedly during a scanning session, this saves battery during the lowered moments without a full power-down and reboot.

What battery does it use and how long does it last?

A removable, rechargeable 18650 lithium-ion battery — a standard cell format. AGM rates runtime at over 6.5 hours. Because the cell is removable, a charged spare can be swapped in during a session. The monocular can also run on external power through the USB Type-C port.

Can I record video and take photos?

Yes. Video and audio recording and snapshot capture are built in, saving to 16 GB of internal storage. Files transfer to a phone or tablet over Wi-Fi via the AGM Connect app, or via USB Type-C.

What's the magnification?

1.5× base optical magnification, extending to 12× through digital zoom (1×, 2×, 4×, 8× steps). The 15 mm lens prioritizes a wide field of view for scanning; digital zoom brings a spotted target in closer for a better look.

Is the TaipanV2 15-384 waterproof?

Yes. It carries an IP67 rating — sealed against dust ingress and rated for water immersion up to one meter for 30 minutes — and is built with rugged rubber overmolding.

What's the warranty?

AGM backs the TaipanV2 15-384 with their 5-year transferable manufacturer warranty.
