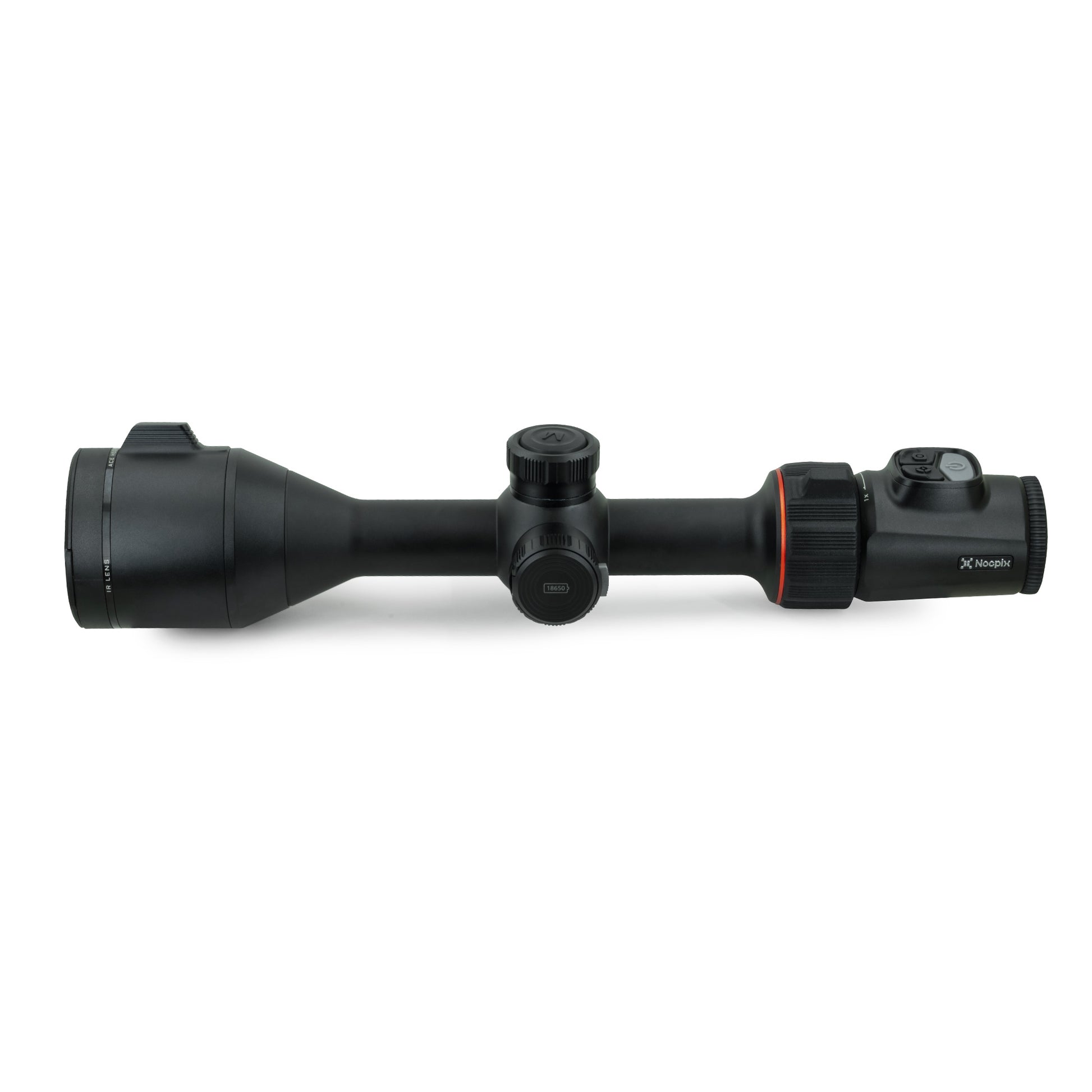

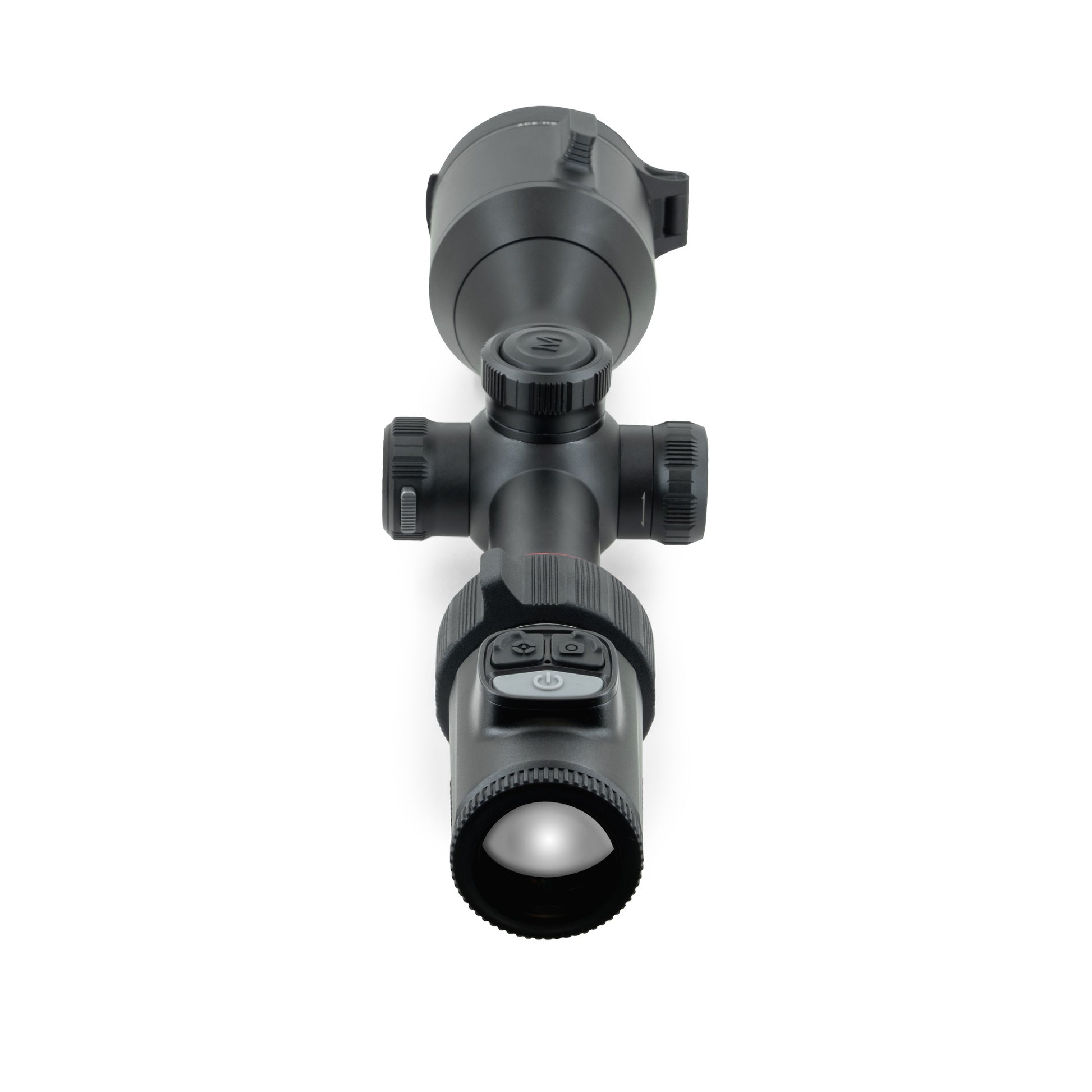

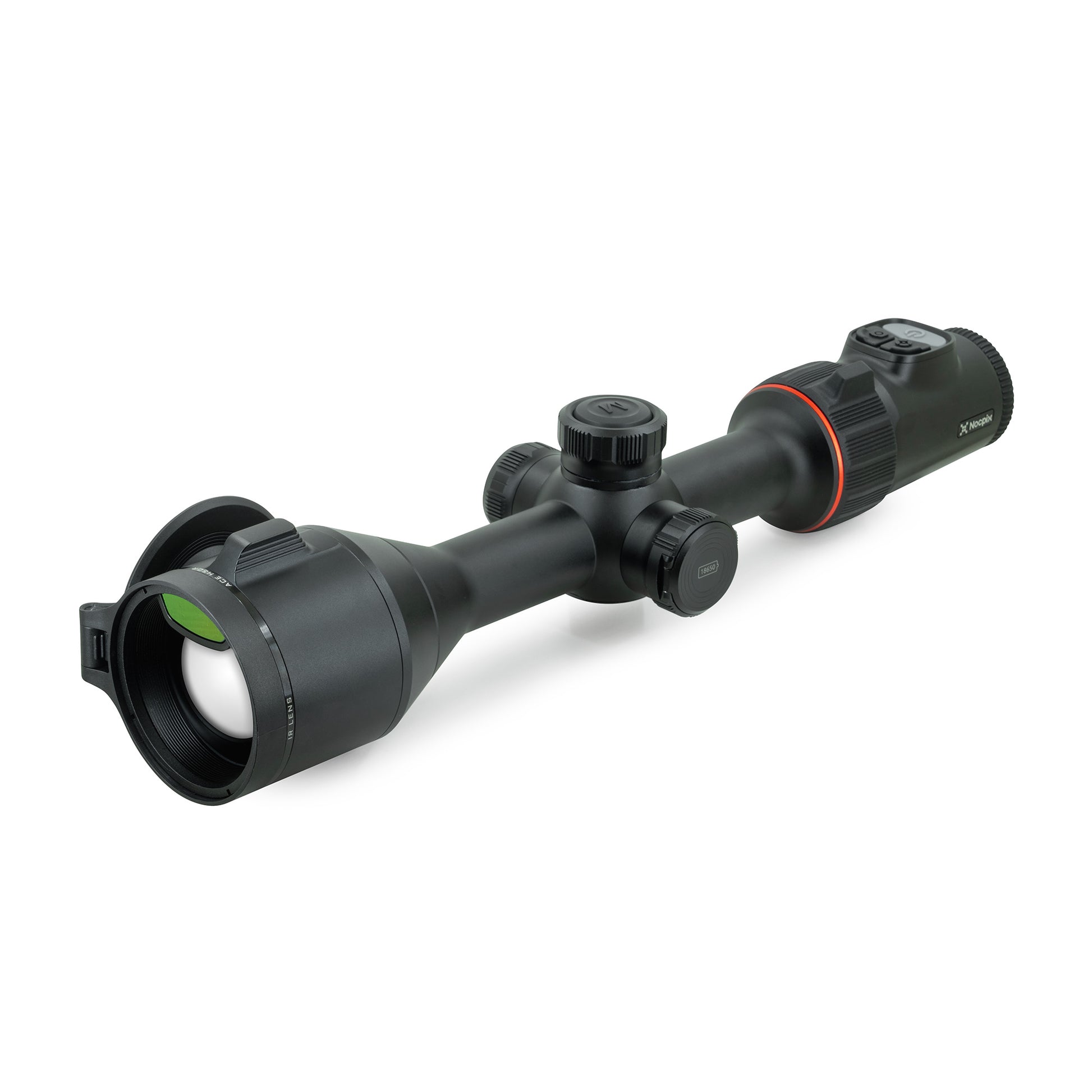

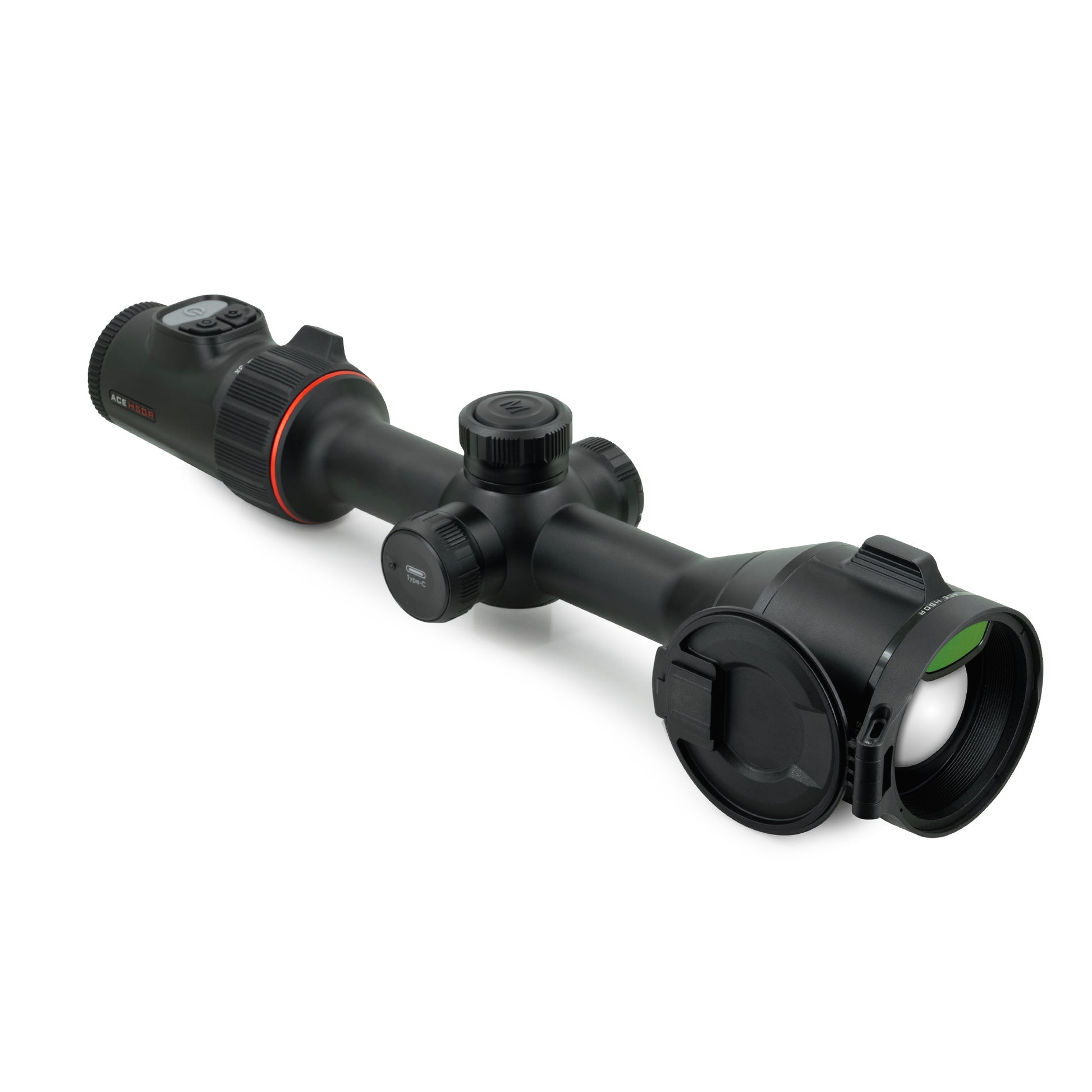

Nocpix Ace H50R Thermal Rifle Scope

The Nocpix Ace H50R LRF is the 640-sensor LRF model in Nocpix's Ace thermal rifle scope family — the same scope as the Ace H50, with a 1,300-yard laser rangefinder integrated directly into the 50 mm germanium objective lens. It pairs a 640×512 thermal sensor with the full Ace platform: 2,560 × 2,560 round AMOLED display, the signature 1× to 3× optical ocular magnifier, Vision+ and Reality+ image processing, hot-swappable dual-battery system, and a built-in ballistic calculator that pairs with the integrated LRF.

For most thermal hunters cross-shopping the Ace family, the H50R is the right scope. The 640 sensor delivers the image quality the platform is built around. The 50 mm F/0.9 lens balances detection range against weight. The integrated LRF means no separate device to carry, range, and call out a distance with. And the in-lens LRF design itself — built into the germanium objective rather than bolted on as an external module — keeps the scope's profile clean and improves horizontal alignment of the laser with the viewing system.

The Ace family — how the H50R fits

The Ace series is a four-model tiered family on a shared platform. The naming code tells you what you're getting: L = 384 sensor, H = 640 sensor, S = 1280 sensor. The number that follows is the objective lens size in millimeters. An R at the end indicates an integrated laser rangefinder.

• Ace L35 — 384×288 sensor, 35 mm lens, no LRF. Entry point into the Ace platform.
• Ace H50 — 640×512 sensor, 50 mm lens, no LRF. 640 image quality at the lower price point.
• Ace H50R — same 640×512 sensor and 50 mm lens, with the integrated 1,300-yard laser rangefinder added.
• Ace S60R — 1280×1024 sensor, 60 mm lens, with integrated 1,300-yard LRF. The flagship.

Step up from the H50 to the H50R when you want integrated ranging built into the scope rather than a separate handheld. Step up from the H50R to the S60R when 1280 resolution at extreme range is the deciding factor.

Why the in-lens LRF design matters

Most thermal scopes with built-in rangefinders bolt the LRF module onto the outside of the scope — a separate housing attached to the side or top. The Ace H50R takes a different approach. The 1,300-yard laser rangefinder is integrated directly into the 50 mm germanium objective lens itself, behind the front of the scope.

That matters for two reasons. First, the scope's profile stays clean — no protruding module to catch on gear or add bulk to the rifle setup. Second, building the LRF into the lens means better horizontal alignment of the infrared laser with the scope's optical axis. The laser is putting its energy out through the same path your eye is viewing the target through, which improves ranging accuracy in the field.

Why the Ace platform is different

The Ace was built around feedback from hunters who wanted a thermal scope that handles like a day optic — not a digital-first device with a tube housing wrapped around it. Three things make the Ace platform genuinely different at its price:

• 30 mm tube, standard rings. The Ace mounts and feels like a conventional precision rifle scope. Compatible with bolt-action and semi-automatic rifles using standard 30 mm mounts and rings — no proprietary mounting system, no learning curve from your daytime setup.
• 1× to 3× optical ocular magnifier. Most thermal scopes use digital zoom only — which softens the image as you zoom in. The Ace has a true optical ocular magnifier that magnifies the display itself, with no reticle shift and no digital zoom degradation. On the H50R, that means 3× base magnification can stretch to 9× pure optical magnification through the ocular zoom before any digital zoom enters the picture.
• Hot-swappable dual battery system. An internal USB-C-charged battery plus a removable 18650. The internal keeps the scope running while you swap the 18650 — no power-off, no losing your zero, no missed shot waiting for a recharge. The unit's lock-out USB-C port design also lets you charge through the scope itself.

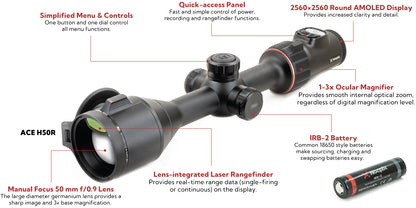

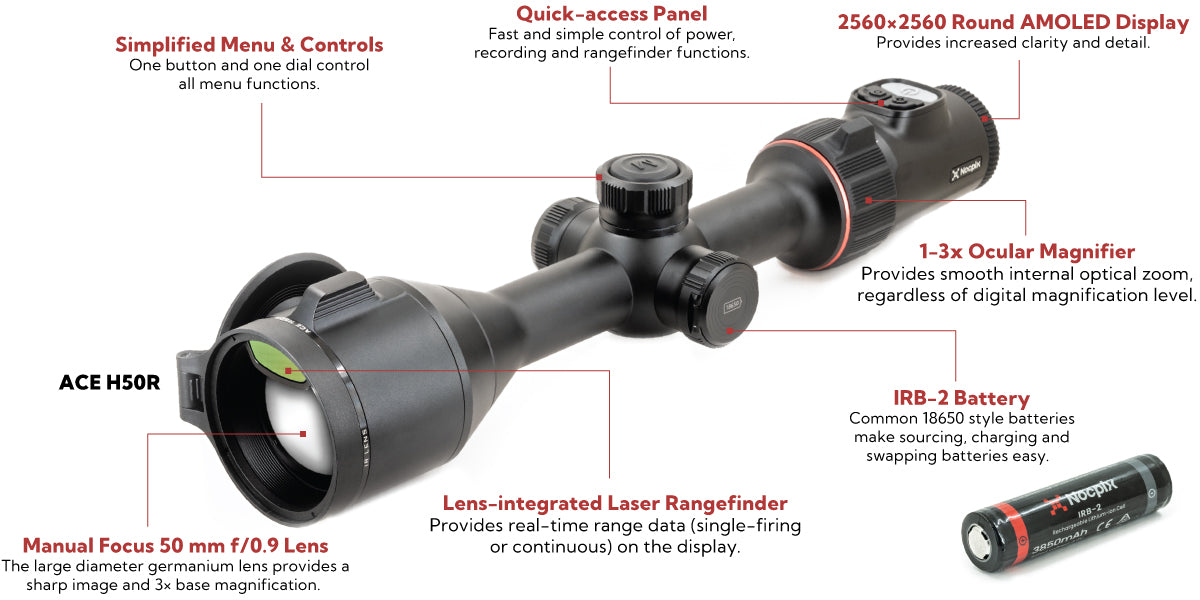

What you get with the Ace H50R

• 640 × 512 thermal sensor with 12 μm pixel pitch, 60 Hz refresh rate. Nocpix's Gen-2 HD sensor architecture in the 640 class. Roughly 2.3× the pixel count of a 384 — meaningfully finer thermal resolution at distance.
• NETD ≤15 mK. Sharp thermal contrast and clean edge definition on warm bodies against cooler backgrounds — meaningful in fog, light rain, or marginal heat conditions.
• 50 mm F/0.9 germanium objective lens. The F/0.9 aperture gathers about 20% more light than F/1.0 lenses common at this price.
• 3× base magnification, 3×–24× total range with digital zoom. Plus the 1×–3× optical ocular magnifier on top of that for true optical magnification through the eyepiece.
• 1× to 3× optical ocular magnifier — magnifies the AMOLED display itself without reticle shift or digital zoom softening.
• Built-in 1,300-yard laser rangefinder integrated directly into the germanium objective lens — not a bolted-on external module.
• Integrated ballistic calculator. Input your bullet's muzzle velocity and ballistic coefficient; the system computes drop based on the ranged distance.
• Vision+ image processing system. Pairs the 2,560 × 2,560 AMOLED display with the 640 sensor for the most detailed image the H50R's hardware can produce.
• Reality+ image processing. Eliminates environmental temperature noise, sharpens contrast and edge definition.
• 2,560 × 2,560 round AMOLED display, 1.03 inch. Flagship-tier display across the entire Ace lineup.
• 2,850 yard detection range. Over a mile and a half of heat-signature detection capability with the 50 mm lens.
• 60 Hz refresh rate for smooth real-time imaging on moving targets.
• 64 GB onboard storage for photo and video capture.
• Wi-Fi connectivity and Nocpix app integration for remote viewing, file transfer, and remote scope control.
• Dual battery system: internal 4,000 mAh rechargeable + removable 18650. Hot-swappable for indefinite runtime. Lock-out USB-C port for in-scope charging. Up to approximately 7 hours of continuous operation.
• T-6063 aluminum construction. IP67-rated waterproof and dustproof.
• Recoil rated for up to .300 Win Mag / 7 mm Magnum.
• 30 mm tube — compatible with standard mounts and rings.

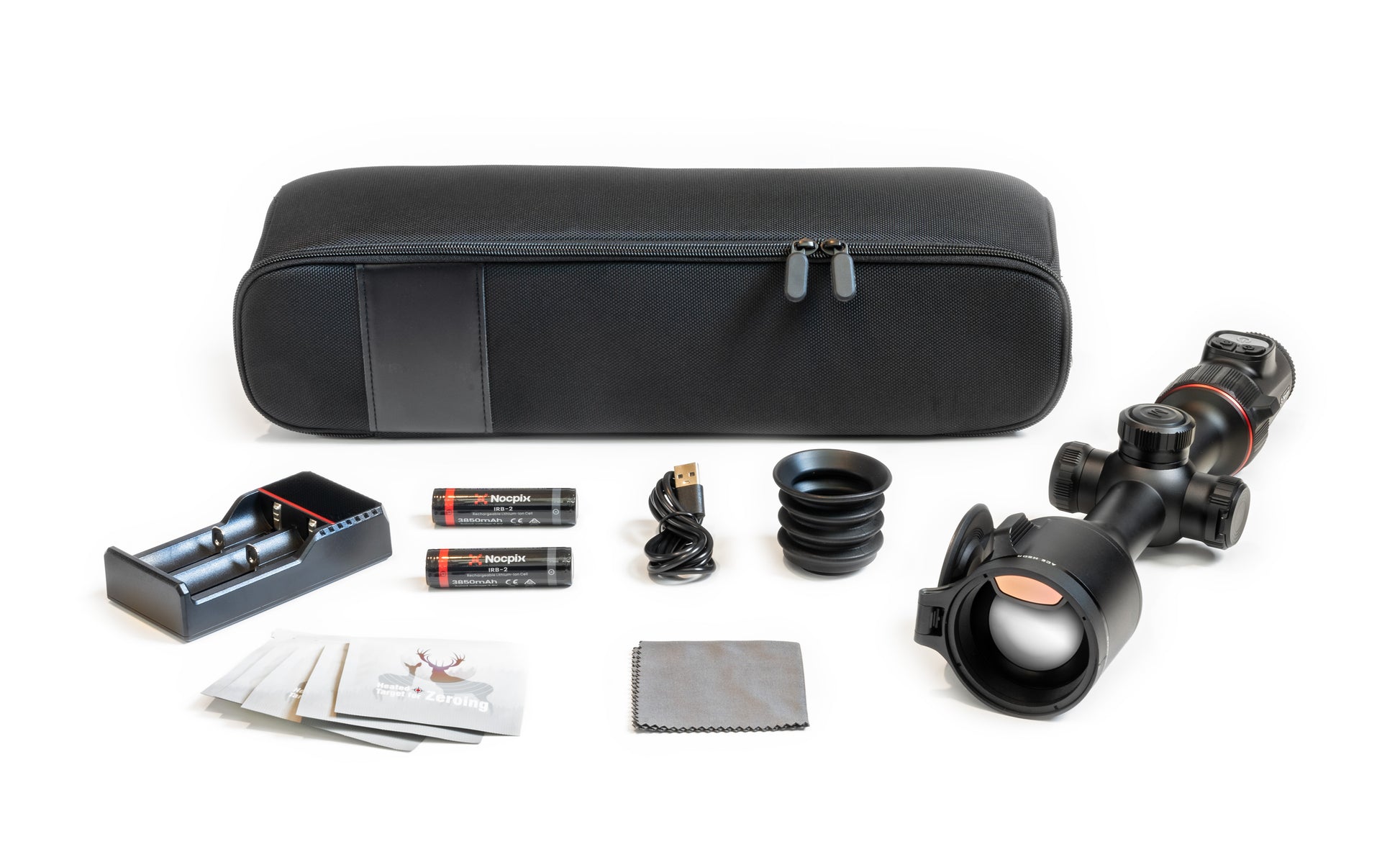

• QD mount included.
• Manufacturer warranty (Nocpix).

Who the Ace H50R is built for

• Hog hunters who want 640 image quality with integrated ranging and ballistic dial-in on a thermal that handles like a traditional day optic
• Coyote and predator hunters who want one device that ranges, calculates drop, and shoots — no second device on the belt
• Long-range hunters working close-to-mid range across pasture, cut fields, and ranch country who need the 50 mm lens reach with integrated LRF
• Buyers cross-shopping the Ace family who want the platform's signature features — ocular magnifier, hot-swap battery system, AMOLED display, day-optic feel — with the 640 sensor and integrated LRF
• Shooters running .300 Win Mag, 7 mm Magnum, or similar magnum calibers who need the H50R's recoil rating

Full specifications

• Thermal sensor: 640 × 512, 12 μm pixel pitch
• Sensor architecture: Nocpix Gen-2 HD, self-developed
• NETD: ≤15 mK
• Objective lens: 50 mm F/0.9 germanium
• Base optical magnification: 3×
• Magnification range: 3× to 24× (digital zoom)
• Ocular magnifier: 1× to 3× (optical)
• Detection range: up to 2,850 yards
• Display: 1.03 inch, 2,560 × 2,560 round AMOLED
• Refresh rate: 60 Hz
• Image processing: Vision+ and Reality+ systems
• Laser rangefinder: built-in, 1,300 yd — integrated into germanium objective lens
• Ballistic calculator: integrated
• Recording: photo, video, audio
• Onboard storage: 64 GB
• Connectivity: Wi-Fi, Nocpix app integration
• Battery system: internal 4,000 mAh + removable 18650 (hot-swappable, indefinite runtime); up to ~7 hr continuous
• Charging: USB Type-C with lock-out port design (in-scope charging)
• Construction: T-6063 aluminum
• Weatherproofing: IP67
• Recoil rating: up to .300 Win Mag / 7 mm Magnum
• Tube diameter: 30 mm (standard mounts/rings compatible)
• Weight: approximately 1,120 g (with battery)
• Mount: QD mount included
• Warranty: manufacturer warranty (Nocpix)

Frequently asked questions

Where does the H50R fit in the Ace family?

The H50R is the LRF-equipped 640 in the four-model Ace series. The "H" signals the 640 sensor tier; the "50" is the 50 mm objective lens; the "R" indicates the integrated laser rangefinder. Below it sit the L35 (384 entry tier) and the H50 (same scope without LRF); above it sits the S60R flagship (1280 sensor).

What's the difference between the Ace H50R and the H50?

The H50R and H50 share the exact same scope — same 640×512 sensor, 50 mm F/0.9 lens, 3×–24× magnification, ocular magnifier, AMOLED display, battery system, and platform. The H50R adds a 1,300-yard laser rangefinder integrated directly into the front lens, plus the onboard ballistic calculator that pairs with it. Choose the H50R if you want LRF built in; choose the H50 if you already use a handheld rangefinder.

What's the difference between the H50R and the S60R?

Same Ace platform — same display, ocular magnifier, battery system, ballistic calculator. The H50R has a 640×512 sensor with a 50 mm lens. The S60R steps up to a 1280×1024 sensor with a 60 mm lens — roughly four times the pixel count for finer detail at distance, and the larger lens for added reach. Step up to the S60R when 1280 image quality at extreme range is the deciding factor.

Why is the LRF built into the lens?

Two reasons. First, profile — building the LRF into the germanium objective lens means no external module bolted to the side of the scope, so the rifle setup stays clean and the scope is less likely to snag on gear. Second, accuracy — placing the laser inside the lens improves horizontal alignment of the infrared laser with the scope's optical axis, which translates to better ranging accuracy in the field.

How accurate is the integrated LRF?

The Ace H50R's integrated LRF ranges to 1,300 yards. The onboard ballistic calculator uses your input bullet velocity and ballistic coefficient to compute drop for the ranged distance.

Why does the H50R feel like a regular day scope?

The Ace family is built around a 30 mm tube housing — the same tube diameter standard daytime precision rifle scopes use. That means it mounts in standard 30 mm rings or one-piece mounts, fits on bolt-action and semi-automatic rifles with no proprietary mounting hardware, and handles much like the daytime optics you're already used to.

What's the 1× to 3× ocular magnifier and why does it matter?

The ocular magnifier is a true optical magnifier inside the eyepiece that magnifies the AMOLED display itself — separate from the digital zoom. The result is more magnification without the image softening that happens when you push digital zoom on a thermal scope. On the H50R, the 3× base magnification combined with up to 3× ocular zoom gives you 9× pure optical magnification before any digital zoom enters the picture.

Will the H50R hold up to magnum calibers?

Yes. The H50R is recoil-rated up to .300 Win Mag and 7 mm Magnum. The T-6063 aluminum construction and IP67 sealing are built for the field.

What about the battery system — can it really run indefinitely?

Yes, with how the dual system is designed. The internal 4,000 mAh battery charges via USB-C; the external is a removable 18650. While the internal battery keeps the scope running, you can swap the 18650 out for a charged one. As long as you have spare 18650s in your pack, the scope keeps running through the swap. Continuous runtime on a single charge is up to approximately 7 hours.

Does the H50R record video?

Yes. Photo, video, and audio recording is included, with 64 GB of onboard storage. Wi-Fi connectivity and the Nocpix app let you transfer files to your phone and view the scope remotely.

What mount comes with the H50R?

A QD (quick-detach) mount is included with the scope. The 30 mm tube also accepts any standard 30 mm rings or one-piece mount if you prefer your own setup.

Is the H50R waterproof?

Yes. The H50R is rated IP67 — sealed against dust ingress and rated for water immersion. Built for rain, snow, and adverse weather.

What's the warranty?

Nocpix backs the Ace H50R with their standard manufacturer warranty.
