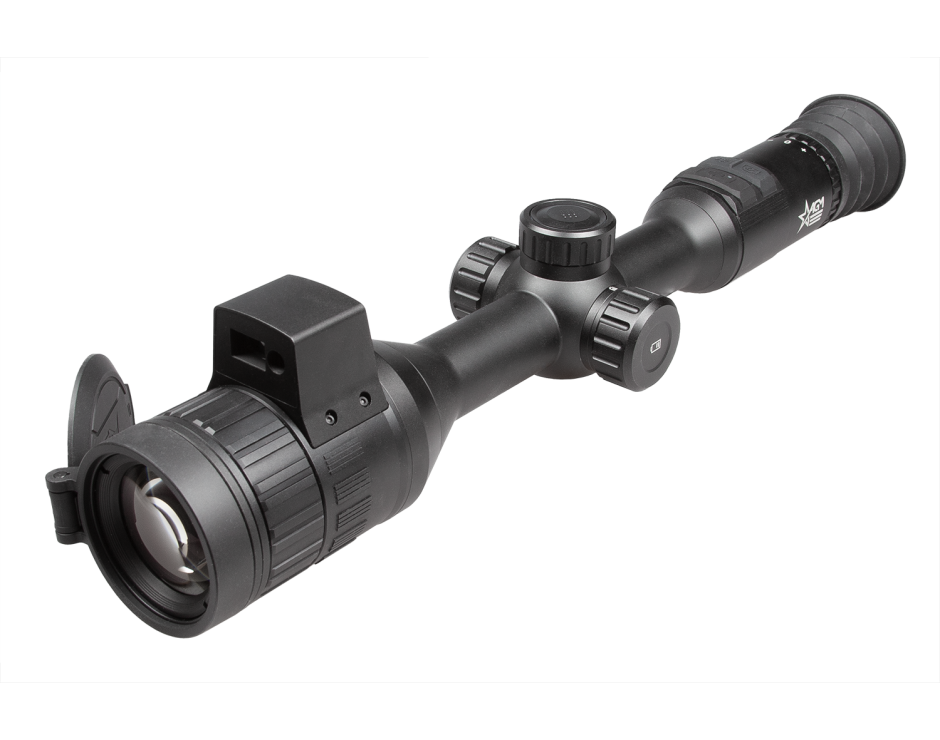

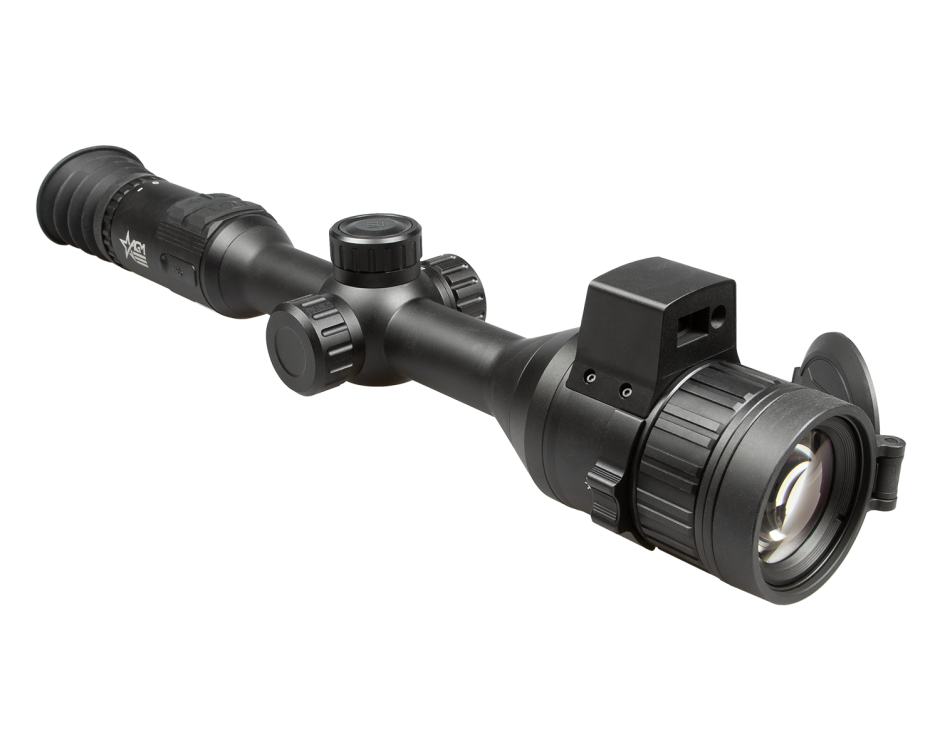

AGM Spectrum LRF 4K Night Vision Scope

The AGM Spectrum LRF 4K is a digital day/night vision riflescope a full-color electro-optical scope that replaces traditional glass for daytime shooting and works as a night vision scope after dark, all in one unit. Unlike a thermal scope, which detects heat, the Spectrum LRF 4K works like a high-resolution digital camera: its 4K CMOS sensor captures available light (and infrared light from an illuminator in full darkness) and renders a full-color daytime image or a digital night image on the display.

What sets this model apart from a standard digital scope is the integrated 1,000-meter laser rangefinder paired with an onboard ballistic calculator. Digital scopes have historically had one notable shortcoming the flat digital display makes depth perception and distance estimation harder than looking through traditional glass. The built-in LRF addresses that directly: it measures the exact distance to a target, and the ballistic calculator uses that range to help place the shot. The scope is built around a 3840—2160 (4K) ultra-high-definition CMOS sensor, an adjustable F1.2–2.5 aperture 50 mm lens, 3.5—–28— magnification, and a 1920—1080 0.49-inch OLED display.

Why "digital day/night" is different from thermal

It's worth being clear about what this scope is, because digital night vision and thermal are different technologies that solve the night-hunting problem in different ways.

A thermal scope detects heat. It needs no visible light at all and excels at detecting warm targets against cooler backgrounds, even in total darkness, fog, or light cover but it renders a heat map, not a photographic image, which can make precise identification harder.

A digital day/night scope like the Spectrum LRF 4K works like a high-sensitivity digital camera. In daylight it produces a full-color image like a normal scope. In low light and darkness it switches to a digital night mode, amplifying available ambient light and infrared. The image is photographic it looks like a black-and-white (or full-color, depending on light) picture of the scene, which makes target identification more natural. The trade-off versus thermal is that digital night vision needs some light to work with: in true zero-light conditions it relies on an infrared illuminator to provide light the sensor can capture.

The practical upshot: the Spectrum LRF 4K is a true do-everything optic for shooters who want one scope for both daytime and nighttime use, with the identification advantage of a photographic image and integrated ranging and ballistics at a price point below dedicated thermal optics.

Why the 4K CMOS sensor and adjustable aperture matter

The Spectrum LRF 4K is built around a 3840—2160 ultra-high-definition CMOS sensor the "4K" in the name. High sensor resolution produces a detailed, sharp image both in daylight and in digital night mode, and supports the scope's 3.5—–28— magnification range without the image breaking down as quickly as a lower-resolution sensor would.

AGM pairs the sensor with an adjustable F1.2–2.5 aperture on the 50 mm lens. An adjustable aperture is unusual on a digital scope and addresses two opposite problems: opened up to F1.2, it gathers maximum light for low-light and night performance; stopped down toward F2.5, it controls bright daylight that can otherwise wash out a digital sensor's image. That adjustability is part of what lets a single optic perform across the full range from bright daylight to darkness. AGM notes that current-generation 4K sensors are also more sensitive to infrared than earlier digital sensors, which reduces how much external IR light the scope needs in night mode.

Why the laser rangefinder and ballistic calculator matter

The built-in laser rangefinder reads distance to 1,000 m with ±1 m accuracy and is eye-safe (Class 1). On a digital scope specifically, integrated ranging solves a real problem: the flat digital display removes much of the natural depth perception a shooter gets through traditional glass, making distance hard to judge by eye. The LRF replaces that guesswork with a measured number.

The onboard ballistic calculator then puts that range to work. Fed the measured distance, it helps the shooter compensate for bullet drop at the target's actual range. Together, the LRF and ballistic calculator turn the Spectrum LRF 4K into a ranging-and-holdover system rather than just a scope that happens to see in the dark.

Why the dual-battery system matters

The Spectrum LRF 4K uses a dual power system: a built-in rechargeable battery plus one additional replaceable, rechargeable 18650 battery. Together they support up to 11 hours of continuous runtime. The replaceable 18650 means a depleted cell can be swapped for a charged one to extend time in the field, while the built-in battery keeps the scope running during the swap. The scope can also run on external power through the USB Type-C port (which supports QC3.0 fast charging).

What you get with the Spectrum LRF 4K

• 3840 — 2160 (4K) ultra-high-definition CMOS sensor. High-resolution full-color digital imaging for day and digital night use.
• Adjustable F1.2–2.5 aperture, 50 mm lens. Opens up for low-light gathering, stops down to control bright daylight.
• 3.5—–28— magnification with incremental and step zoom (1—, 2—, 4—, 8— digital zoom).
• 1920 — 1080 0.49-inch OLED display at 50 Hz.
• Built-in eye-safe (Class 1) laser rangefinder: up to 1,000 m, ±1 m accuracy.
• Onboard ballistic calculator.
• Day / Night / Auto image modes.
• 5 reticle types in 4 colors.
• Picture-in-Picture mode.
• Shot-activated recording plus manual video (1920—1080) and audio recording, and snapshot capture.
• 64 GB EMMC built-in storage.
• Wi-Fi data transmission with the AGM Connect app.
• 8.8° — 5.0° field of view.
• 55 mm eye relief.
• Diopter adjustment -5 to +5.
• 10 m minimum focusing distance.
• Dual power system: built-in rechargeable battery plus one replaceable 18650 (included); up to 11 hours continuous runtime.
• External power capability via USB Type-C (supports QC3.0).
• Recoil rated to 1000 g / 0.4 ms.
• IP67-rated waterproof and shockproof construction.
• Operating temperature range -30°C to +55°C (-22°F to 131°F).
• Compatible with external IR illuminators for use in complete darkness where no ambient light exists.
• AGM 3-year warranty.

Who the Spectrum LRF 4K is built for

• Hunters who want a single optic that works as both a daytime scope and a night vision scope, rather than swapping optics between day and night
• Shooters who want night capability at a price point below dedicated thermal optics
• Hunters who want integrated ranging and a ballistic calculator built into the scope for distance-compensated shots
• Daytime hunters who specifically value the adjustable aperture's low-light gathering in the prime hunting windows just after sunrise and just before sunset
• Shooters newer to night optics who want a photographic (camera-like) image that's intuitive to identify targets with, rather than a thermal heat map
• Users who already own or are willing to add an external IR illuminator for true zero-light hunting

The Spectrum LRF 4K is a digital day/night scope, not a thermal scope. In true total darkness with no ambient light, it relies on an infrared illuminator to produce an image, and it does not detect heat the way a thermal scope does so it is less suited to detecting unseen warm targets in heavy cover or total blackout conditions than a thermal optic. Hunters whose primary need is heat detection in any condition may prefer a thermal scope; the Spectrum LRF 4K is the right tool for those who want true day-and-night versatility with a photographic image and integrated ranging.

Full specifications

• Sensor: 3840 — 2160 (4K) ultra-high-definition CMOS
• Lens system: 50 mm, F1.2 (adjustable aperture F1.2–2.5)
• Magnification: 3.5—–28—
• Digital zoom: 1—, 2—, 4—, 8—
• Field of view: 8.8° — 5.0°
• Display: 0.49-inch OLED, 1920 — 1080, 50 FPS
• Frame rate: 50 Hz
• Image modes: Day, Night, Auto
• Reticle: 5 reticles, 4 colors
• Picture-in-Picture: yes
• Ballistic calculator: yes
• Laser rangefinder: up to 1,000 m, ±1 m accuracy
• Laser safety class: Class 1 (eye-safe)
• Laser wavelength: 905 nm
• Eye relief: 55 mm
• Exit pupil: 6 mm
• Diopter adjustment: -5 to +5
• Minimum focusing distance: 10 m
• Video recording: yes (1920 — 1080)
• Audio recording: yes
• Shot-activated recording: yes
• Snapshot: yes
• Storage: 64 GB EMMC built-in
• Wi-Fi: yes (AGM Connect app)
• Battery: built-in rechargeable Li-Ion plus one additional replaceable rechargeable 18650 (18650 included)
• Battery life: up to 11 hours continuous (25°C, Wi-Fi off)
• External power: 5 VDC / 2 A, USB Type-C (supports QC3.0)
• Max. recoil: 1000 g / 0.4 ms
• Operating temperature: -30°C to +55°C (-22°F to 131°F)
• Construction: IP67 waterproof and shockproof
• Dimensions: 17.3 — 3.5 — 3.3 in (440 — 89 — 84 mm), without mount
• Weight: 2.6 lb (1.18 kg), without mount, eyepiece, and CR123A battery
• Warranty: AGM 3-year manufacturer warranty

In the box: digital day/night rifle scope, two rechargeable 18650 batteries, battery charger, USB cable, lens cloth, user manual, quick start guide, carrying case.

Frequently asked questions

Is the Spectrum LRF 4K a thermal scope?

No. It's a digital day/night vision scope, which is a different technology from thermal. A thermal scope detects heat and needs no light at all. The Spectrum LRF 4K works like a high-resolution digital camera it captures available light (and infrared in darkness) to produce a photographic image, full-color in daylight and digital night vision after dark. It's a true do-everything day-and-night optic at a lower price than dedicated thermal, but it relies on some light (or an IR illuminator) to see, where thermal does not.

Can I use it during the day?

Yes that's a core part of the design. The Spectrum LRF 4K is a full day/night scope. In daylight it produces a full-color image like a traditional scope, and the adjustable F1.2–2.5 aperture lets you stop the lens down to control bright daylight that can wash out other digital optics. Day, Night, and Auto image modes are built in.

Do I need an infrared illuminator?

In low light and twilight, the 4K sensor's infrared sensitivity may be enough on its own AGM notes current 4K sensors need less external IR than older digital optics. In true total darkness with no ambient light, you'll want an external IR illuminator to give the sensor light to capture. The scope is compatible with external IR illuminators for exactly this purpose.

How does the laser rangefinder help on a digital scope?

Digital scopes use a flat display, which removes much of the natural depth perception you get through traditional glass making it harder to judge distance by eye. The built-in laser rangefinder measures the exact distance to your target (up to 1,000 m, ±1 m), and the onboard ballistic calculator uses that range to help compensate for bullet drop. Together they turn the scope into a ranging-and-holdover system.

How long does the battery last?

Up to 11 hours of continuous runtime at 25°C with Wi-Fi off. The Spectrum LRF 4K uses a dual power system a built-in rechargeable battery plus one replaceable, rechargeable 18650 so a depleted 18650 can be swapped for a charged one while the built-in battery keeps the scope running. It can also run on external power through the USB Type-C port, which supports QC3.0 fast charging.

Can I record my hunts?

Yes. The scope records 1920—1080 video with audio, supports shot-activated recording (which captures footage automatically when the rifle fires), and takes snapshots all saved to 64 GB of internal storage. Files transfer over Wi-Fi via the AGM Connect app or via USB.

What recoil can it handle?

AGM rates the Spectrum LRF 4K for a maximum recoil of 1000 g / 0.4 ms. For magnum centerfire calibers, confirm specific caliber compatibility with AGM directly before mounting.

Is it waterproof?

Yes. The scope carries an IP67 rating sealed against dust ingress and rated for water immersion up to one meter for 30 minutes and is built to handle recoil and field conditions.

What's the warranty?

AGM backs the Spectrum LRF 4K with a 3-year manufacturer warranty.
