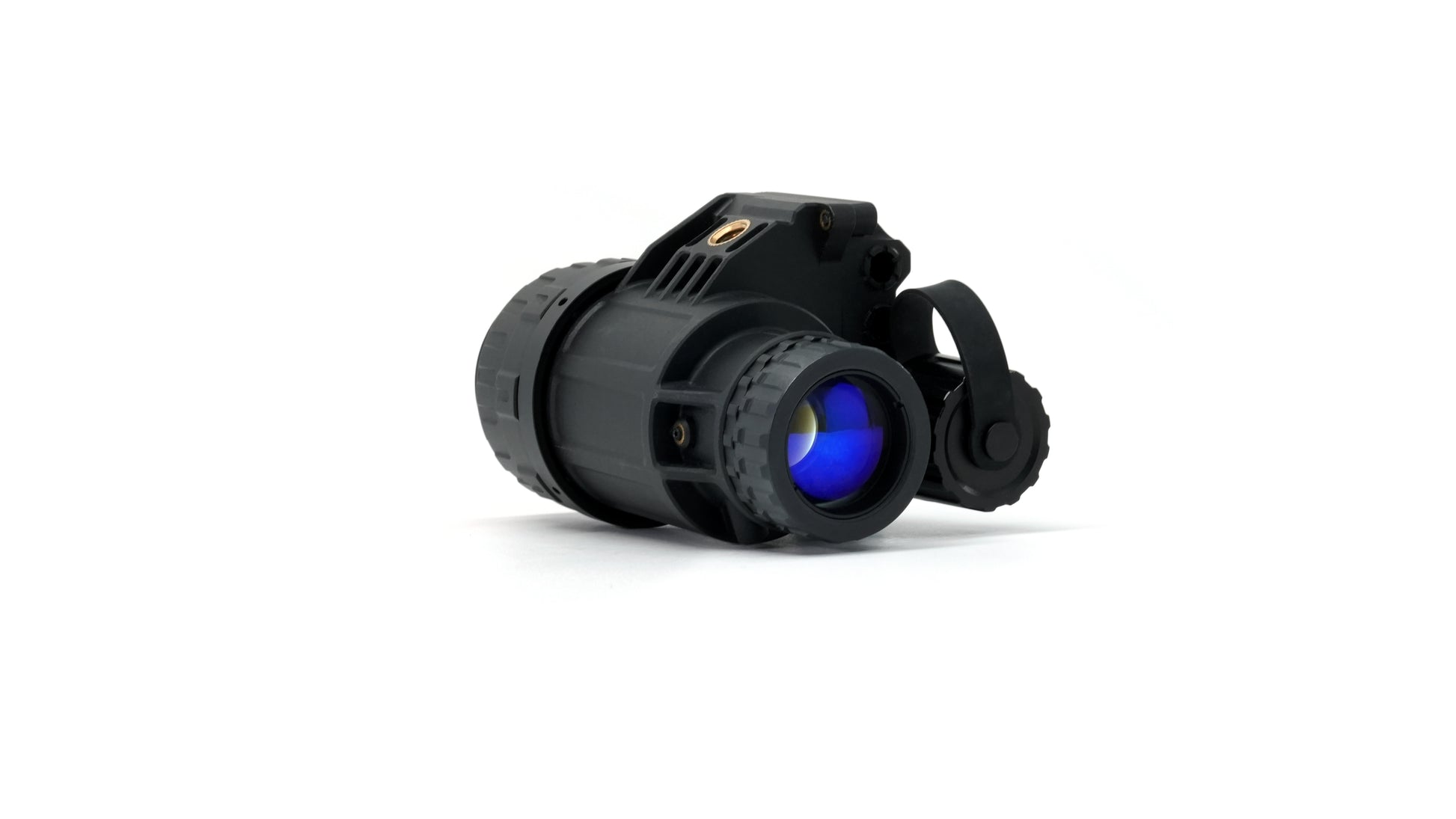

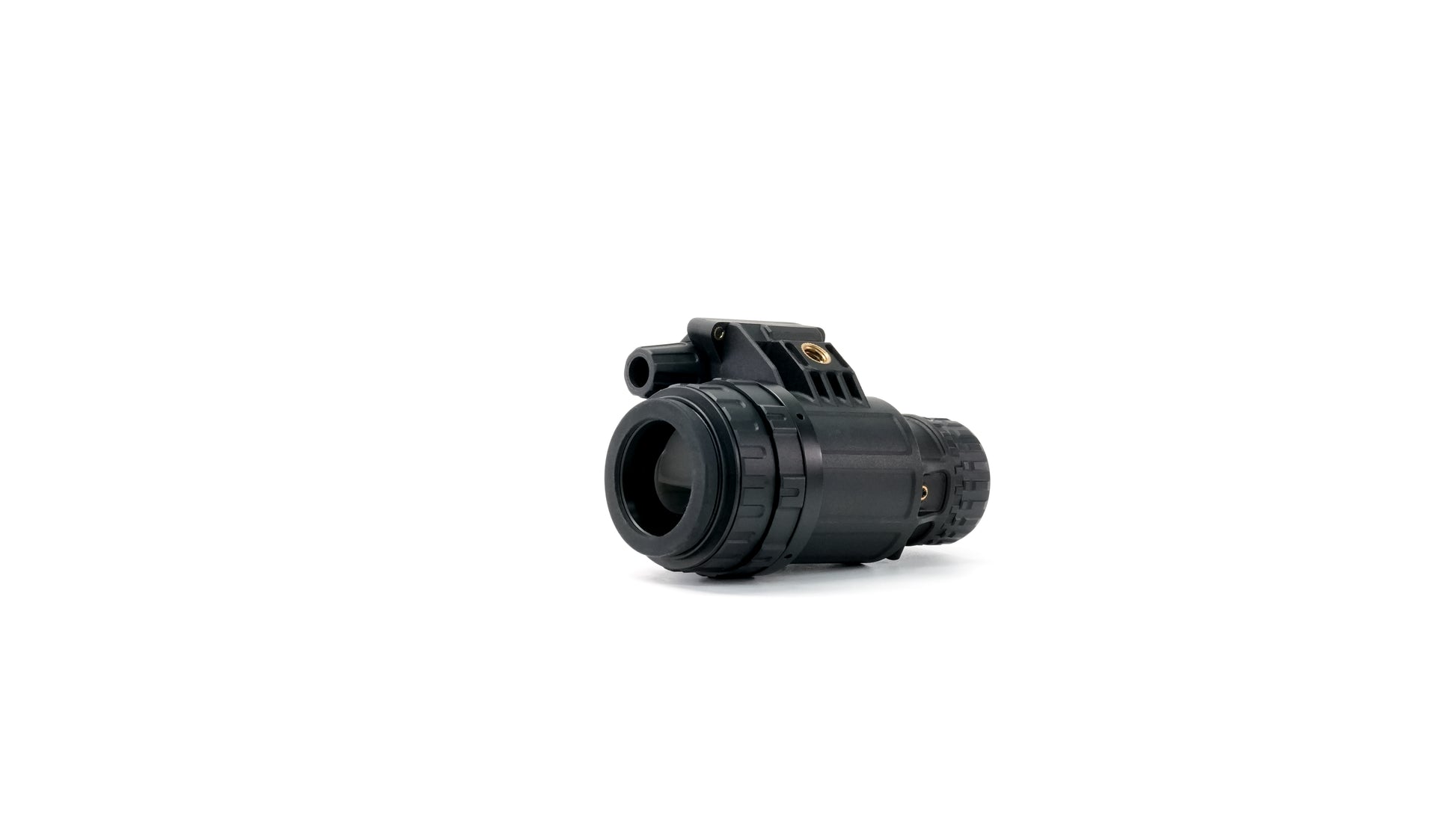

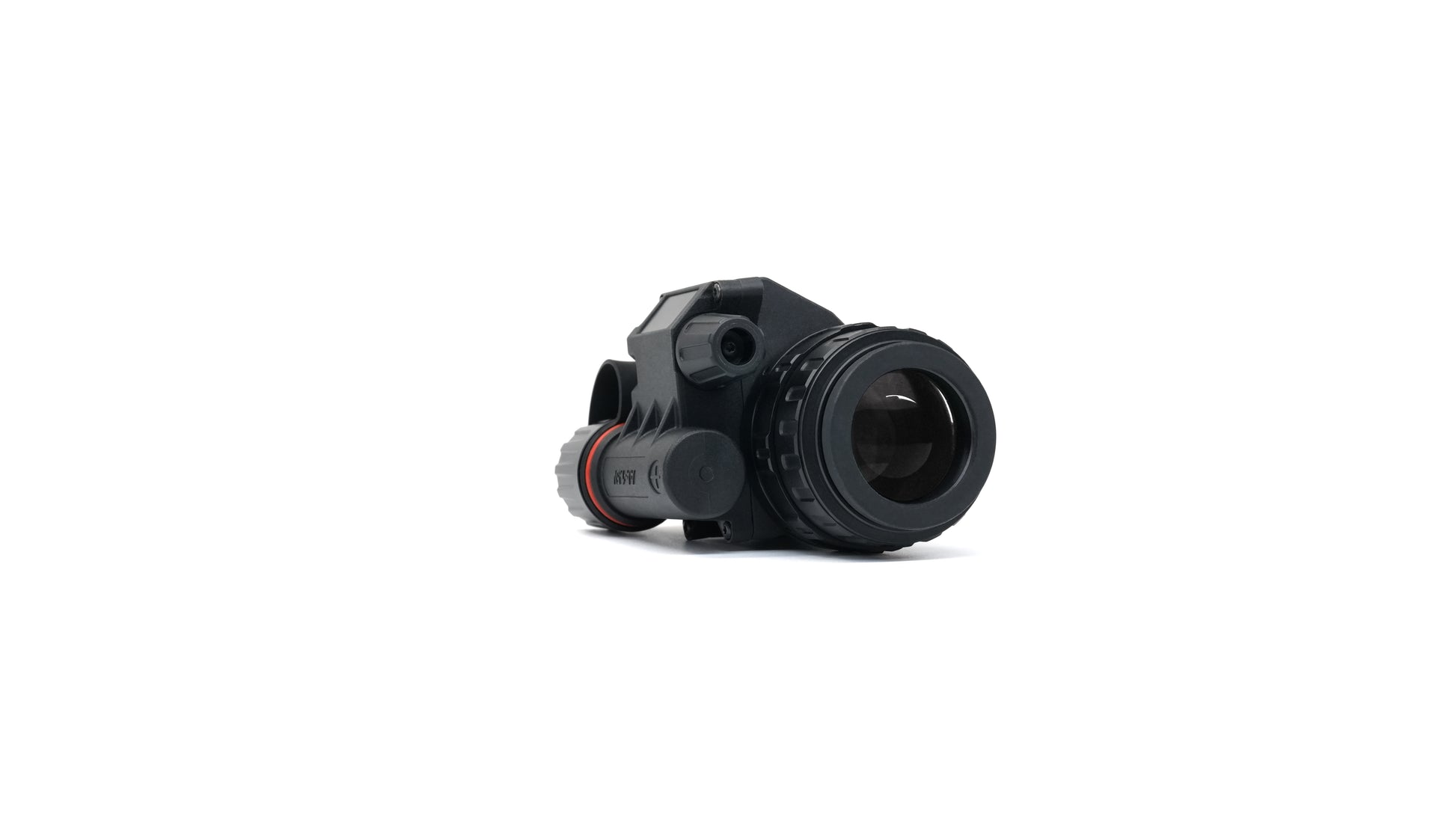

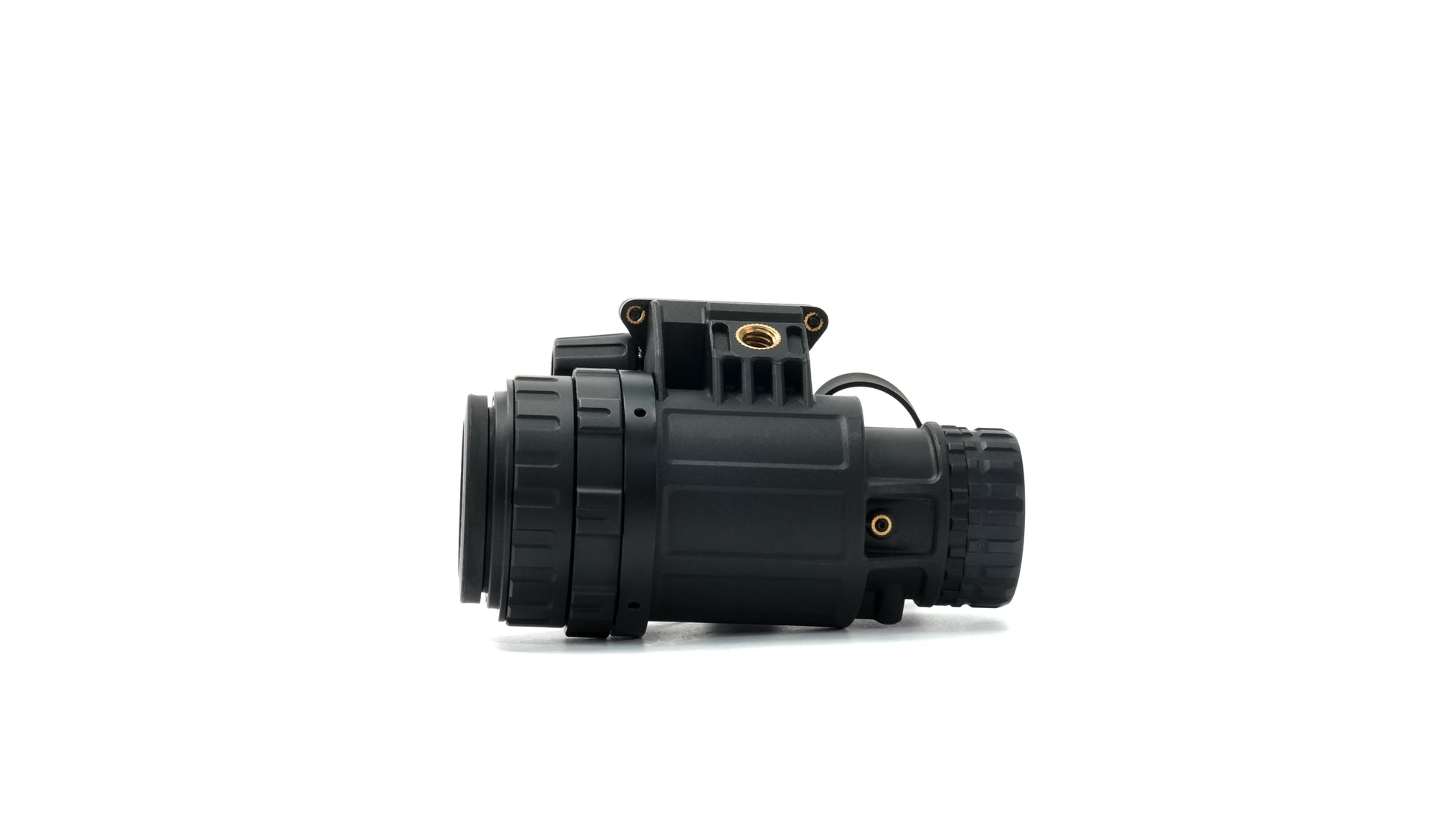

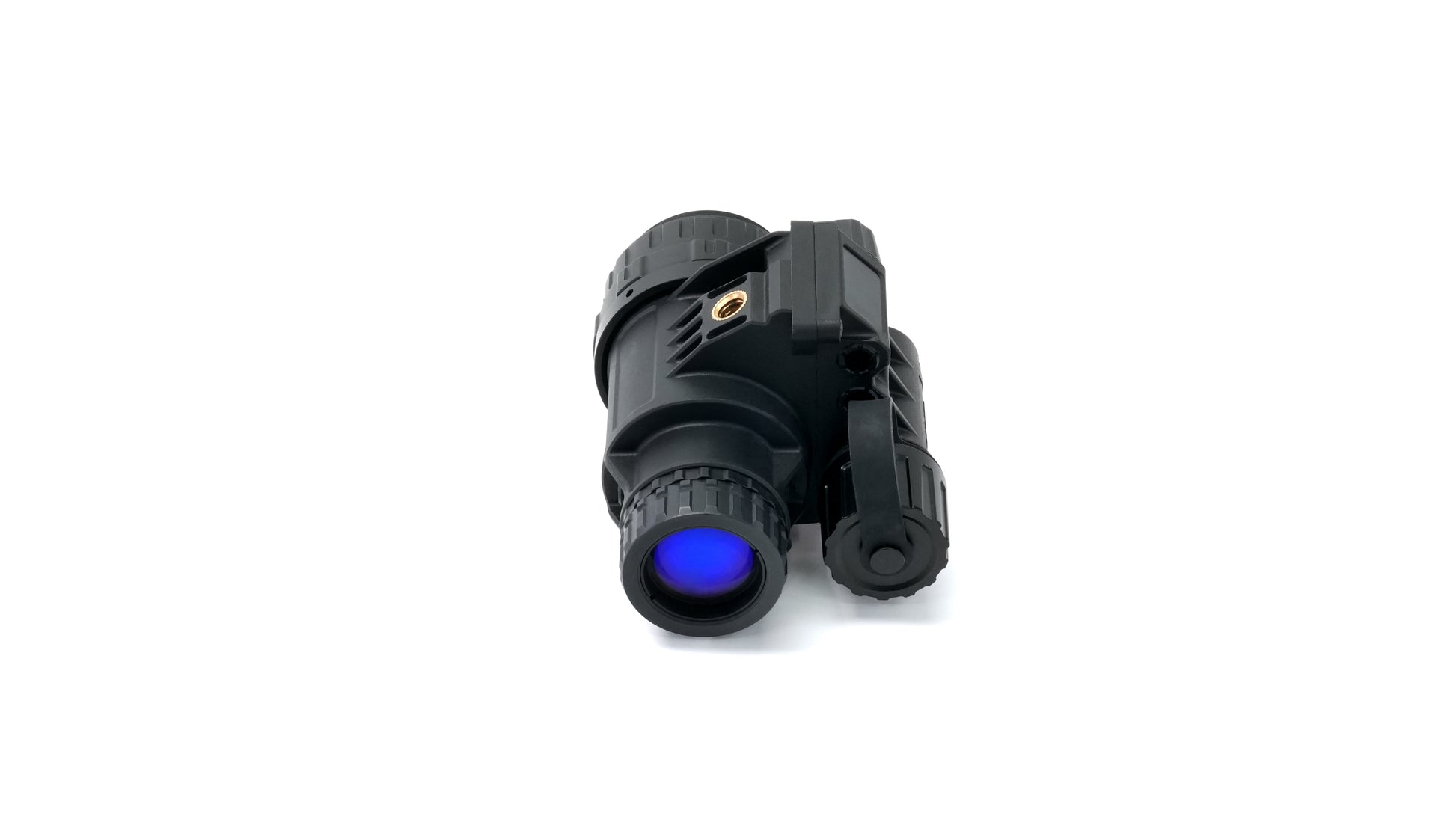

RIX Tactical RNV-14 Night Vision Monocular | Gen 2+ Helmet Mountable

Lightweight Gen 2+ Night Vision in a Compact, Helmet-Mountable Package

The RIX Tactical RNV-14 is a single-tube night vision monocular built around a standard 18mm image intensifier tube, delivering Gen 2+ low-light performance in one of the lightest helmet-mounted night vision devices available. At just 255 grams (approximately 9 ounces), the RNV-14 is designed for hunters, sport shooters, ranch operators, and tactical professionals who want night vision capability in a compact, portable form factor.

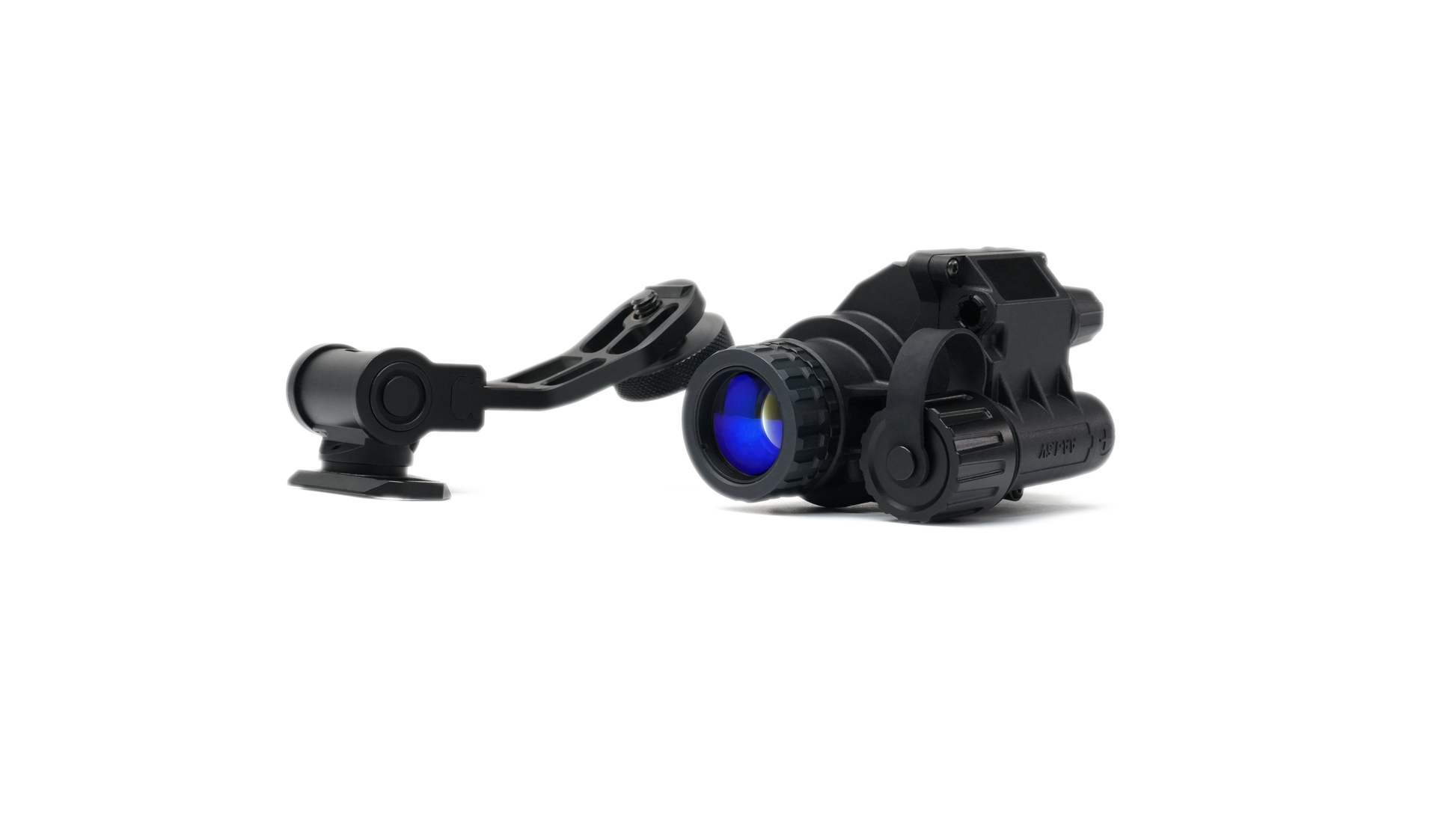

Powered by a single AA battery and rated for up to 55 hours per battery, the RNV-14 is built for long sessions in the field without constantly swapping cells. The included full-metal J-arm bracket attaches the RNV-14 to standard NVG dovetail mounts, making integration into existing helmet setups immediate and tool-free.

Thermal Fusion Ready

The RNV-14 ships with the Thermal Fusion Pendant Adapter included in the box. This adapter mounts to the bottom of the objective lens via two M2 × 5 screws and accepts a compatible thermal clip-on, enabling true fusion imaging where thermal heat signatures are overlaid onto the native night vision view. For users who plan to grow their night vision setup over time, the RNV-14 is built to scale with you.

Key Features

Gen 2+ image intensifier with standard 18mm tube format Available in multiple tube configurations (1400-1600 FOM Green Phosphor, 1400-1600 FOM White Phosphor, and 1800-2000 FOM White Phosphor) 1x magnification with 25mm F1.2 objective lens 40° field of view Manual gain control via the front-mounted power knob Auto standby after 3 minutes of inactivity to extend battery life — reactivates when the unit is moved Auto power-off when the unit is flipped upward Left or right eye placement via the included full-metal J-arm bracket Built-in 850nm IR illuminator for use in zero-ambient-light conditions Bright Source Protection (BSP) automatically protects the tube from sudden bright light exposure In-FOV LED indicators for IR illuminator status, BSP activation, and low battery Single AA battery operation — up to 55 hours of operating time per battery Thermal Fusion Pendant Adapter included for clip-on thermal compatibility Operating temperature range from -40°F to +122°F Ingress protection rated to 10 meters

Specifications

Magnification: 1x Objective Lens: 25mm, F1.2 Field of View: 40° Focus Range: 0.25m to infinity Eye Relief: 25mm Diopter Adjustment: -4 to +2 Tube Compatibility: 10160, 11769 EGAC IR Illuminator: 850nm built-in Battery Type: 1× AA Operating Time: 55 hours Ingress Protection: 10 meters LED Indicators: IR illuminator, flip-up off, BSP, low battery Operating Temperature: -40°F to +122°F Dimensions: 96mm × 57mm × 69mm Weight: 255g ± 5% (~9 oz)

What's in the Box

RNV-14 device J-arm bracket Thermal Fusion Pendant Adapter Long eyeshade Portable carrying bag User manual

Common Use Cases

Hog and predator hunting — pair with a thermal device for target identification and use the RNV-14 for navigation and passive aiming Helmet-mounted operation via the included J-arm and standard NVG dovetail mounts Property and ranch security at night Search and rescue applications in low-light conditions Land navigation in unlit terrain Range training and night-fire qualification

Frequently Asked Questions

What does FOM mean and which should I choose?

FOM (Figure of Merit) is the industry standard for measuring tube performance. Higher FOM means a cleaner image with less noise, especially in extreme low-light conditions. The 1400-1600 FOM tubes provide solid Gen 2+ performance at the most accessible price point. The 1800-2000 FOM tubes deliver near-milspec image clarity for users who want the best image quality the housing can support.

White phosphor or green phosphor?

Green phosphor is the classic night vision look. The human eye distinguishes more shades of green than any other color, which is why green tubes have been the standard for decades. White phosphor displays the image in shades of black, white, and gray, which many users find easier on the eyes during extended wear and better for distinguishing fine detail. Neither is universally better.

How long does one AA battery last?

Up to 55 hours of operating time, with auto standby mode further extending real-world use.

Is the J-arm included?

Yes. The included full-metal J-arm bracket allows the RNV-14 to mount on standard NVG dovetail mounts and to be switched between left and right eye placement.

What helmet mounts are compatible?

Standard NVG dovetail mounts. Most modern helmet mount systems with a dovetail interface will accept the included J-arm.

Can the RNV-14 be paired with a thermal clip-on?

Yes. The included Thermal Fusion Pendant Adapter mounts to the objective lens and provides the interface for a compatible thermal clip-on, enabling fusion imaging.

Can I use this for hog hunting?

Yes. The RNV-14 is widely used for hog hunting, especially in setups where a thermal device handles initial detection and the night vision monocular is used for visual confirmation and passive aiming.

Is the RNV-14 waterproof?

The RNV-14 is rated for ingress protection to 10 meters, suitable for rain, splashes, and brief immersion.

Is the RNV-14 ITAR-restricted?

Yes. The RNV-14 is an ITAR-controlled item under U.S. federal export law. Sales are restricted to U.S. persons as defined under 22 CFR § 120.15. Export outside the United States is prohibited without proper licensing.

Important Information

The RIX Tactical RNV-14 is an ITAR-controlled item and may only be sold to U.S. persons as defined under 22 CFR § 120.15. Export of this product outside the United States is restricted under federal law. By purchasing, the buyer acknowledges and agrees to comply with all applicable U.S. export regulations.

Why Buy From Thermal Bros

Thermal Bros is an authorized RIX Tactical dealer with full manufacturer support. If you're choosing between tube grades or unsure which configuration fits your specific use case, reach out before you order — we'd rather help you select the right configuration the first time.
