RIX Tactical RENV-M Enhanced Night Vision Fusion Monocular

RIX Tactical RENV-M Fusion Monocular Overview

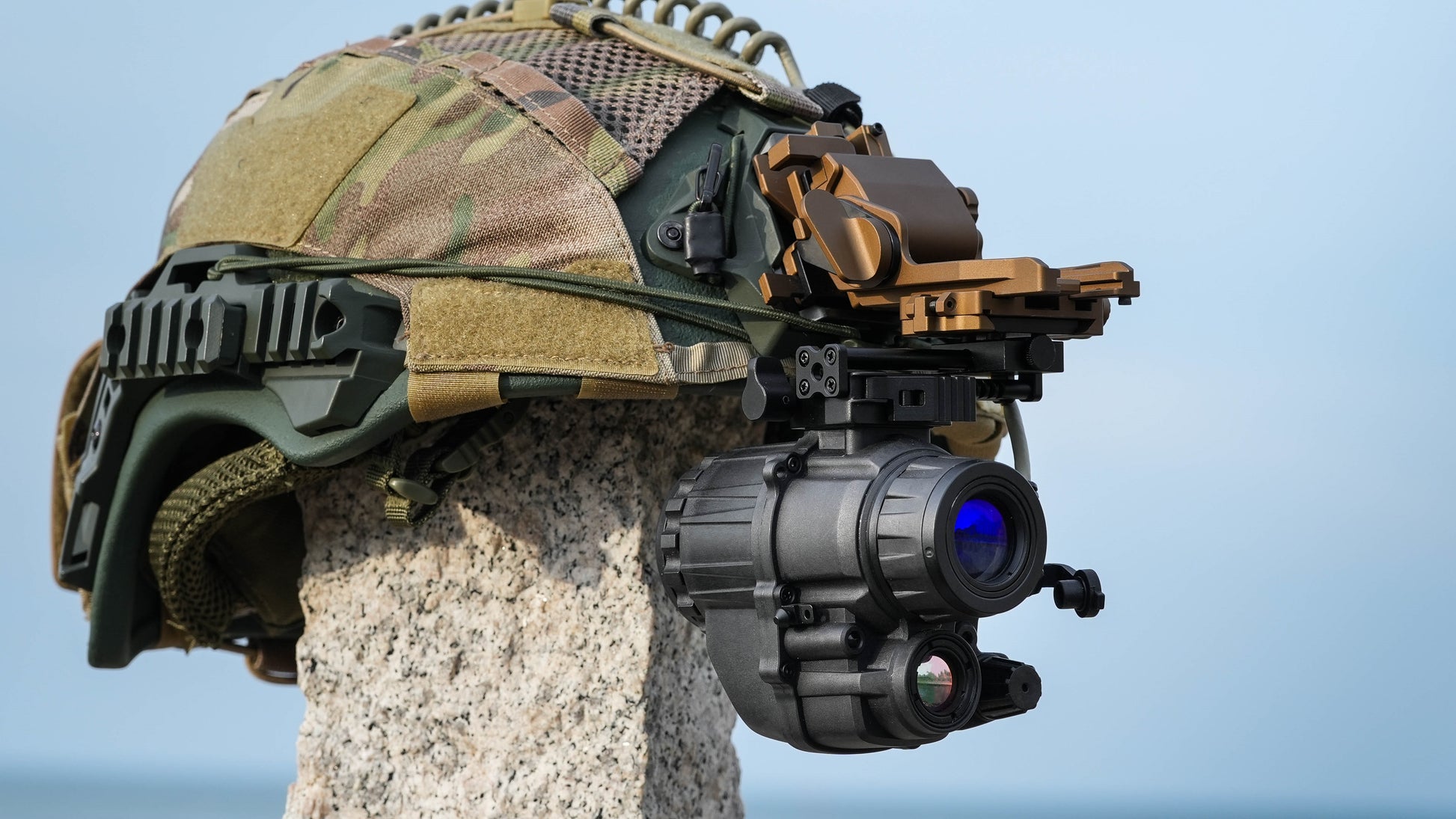

The RIX Tactical RENV-M is a compact, helmet-mountable fusion monocular that combines Gen 2+ night vision with a built-in 640 × 512 thermal detector. Instead of attaching a separate thermal clip-on, the RENV-M integrates both technologies into one standalone device.

This gives users simultaneous image intensification and thermal imaging in the same view. Night vision helps with navigation, terrain detail, and natural-looking low-light imagery. Thermal helps reveal heat signatures that standard night vision can miss, including animals in brush, people against cool backgrounds, and warm objects in low-contrast environments.

The RENV-M uses a 0.6-inch full-color OLED display with 800 × 600 resolution and multiple enhanced image modes, allowing the user to adjust the fusion overlay for the scene.

Why Integrated Fusion Matters

Traditional night vision and thermal solve different problems. Night vision is better for movement, terrain detail, and seeing the environment naturally. Thermal is better for detecting heat signatures, especially when animals or people are partially hidden.

The RENV-M combines both in one helmet-mountable monocular. For hog hunting in heavy cover, predator hunting, ranch security, search and rescue, and professional use, this can reduce the need to switch between separate devices.

Choose the RENV-M when detection and navigation both matter, and you want them built into the same unit.

Key Features

• Integrated fusion design: Combines a Gen 2+ image intensifier tube with a built-in 640 × 512 thermal detector.
• No clip-on required: Night vision and thermal are built into the same standalone monocular.
• Multiple enhanced image modes: Outline, Highlight, Thermal Image, and Breath modes.
• Full-color OLED display: 0.6-inch OLED screen with 800 × 600 resolution.
• 640 × 512 thermal sensor: VOx uncooled detector with 12 μm pixel pitch.
• <30 mK NETD: Helps detect subtle heat differences in difficult conditions.
• 50 Hz thermal frame rate: Smooth thermal image performance.
• 1,500 m detection range: Published detection range on a 1.8 m, or 5'9", object in complete darkness.
• 40° night vision field of view: Standard wide night vision view for movement and situational awareness.
• 25.8° × 19.1° thermal field of view: Thermal channel coverage for heat detection and overlay use.
• Built-in IR illuminator: Supports use in zero-ambient-light conditions.
• Bright Source Protection: Helps protect the image intensifier tube from sudden bright light exposure.
• Azimuth and pitch/inclination sensors: Provides directional and angle reference.
• Bluetooth remote operation: Allows remote device control.
• Thermal display controls: Digital zoom, brightness control, contrast control, and polarity selection.
• Thermal polarity options: White hot, Black hot, and Orange hot.
• Left- or right-eye use: Designed for left/right eye switching with lateral position adjustment.
• Dual 18650 battery pack: Up to 100 hours in image intensifier mode and 8+ hours in fusion mode.
• IP67 rating: Dustproof and waterproof protection for field use.
• Wide operating temperature range: Rated from -40°F to +122°F.

Fusion Modes Explained

• Outline Mode: Shows the edges of heat signatures while preserving more of the underlying night vision image.
• Highlight Mode: Displays a stronger thermal overlay on top of the night vision image.
• Thermal Image Mode: Shows only the thermal channel.
• Breath Mode: Pulses the thermal overlay on and off so the user can alternate between pure night vision and the thermal overlay.

Common Use Cases

• Hog hunting in heavy cover where night vision shows terrain and thermal reveals heat signatures hidden in brush.
• Predator hunting where thermal detection helps locate targets at distance.
• Property and ranch security where heat signatures stand out against tree lines, structures, and open terrain.
• Search and rescue applications in low-light environments.
• Tactical training and professional operations requiring integrated night vision and thermal capability.
• Helmet-mounted operation using the included adapter kit.

Who the RENV-M Is Best For

• Hunters who want night vision navigation and thermal detection in one device.
• Hog and predator hunters working brush, tree lines, and low-light terrain.
• Ranchers and property owners monitoring land, livestock, predators, or structures after dark.
• Search and rescue users who need both terrain visibility and heat detection.
• Professional users who want integrated fusion capability in a helmet-mounted monocular.

Who Should Consider Something Else

The RENV-M may be more than you need if you only want basic night vision for navigation or occasional observation. In that case, a simpler monocular may be a better fit.

If you want the comfort and depth perception of binocular night vision, a dual-tube goggle may be easier to use for long-duration movement. The RENV-M is a single-eye fusion device, so it prioritizes integrated detection capability over binocular viewing comfort.

If your main priority is long-range thermal scanning from a handheld position, a dedicated thermal monocular or binocular may be the better tool.

Specifications

Optics

• Magnification: 1×
• Exit pupil diameter: 20 mm
• Exit pupil distance: 15 mm
• Diopter adjustment: -3.5 to +2.5

Image Intensifier

• Generation: Gen 2+
• Resolution: 64 to 72 lp/mm
• Field of view: 40°
• Lens system: 25 mm F/1.2
• Range of focus: 0.27 yd to infinity
• Brightness control: Yes
• Bright Source Protection: Yes
• Infrared illuminator: Built in

Thermal Imaging

• Sensor type: VOx uncooled
• Resolution: 640 × 512
• Pixel pitch: 12 μm
• NETD: <30 mK
• Frame rate: 50 Hz
• Lens system: 16 mm F/1.1
• Field of view: 25.8° × 19.1°
• Digital zoom: Yes
• Brightness control: Yes
• Contrast control: Yes
• Thermal polarity: White hot, Black hot, Orange hot
• Enhanced modes: Outline, Highlight, Thermal Image, Breath
• Sensors: Azimuth indication, pitch/inclination angle

Display

• Display type: OLED
• Display resolution: 800 × 600
• Display size: 0.6 inch

Range Performance

• Detection range: 1,500 m / 1,640 yd on a 1.8 m object

Environmental and Power

• Degree of protection: IP67
• Operating temperature: -40°F to +122°F
• Battery type: Two 18650 batteries
• Runtime in image intensifier mode: Up to 100 hours
• Runtime in enhanced fusion display mode: 8+ hours

Physical

• Dimensions: 4.2 × 3.4 × 2.9 in
• Main body weight: ≤0.85 lb
• Battery pack weight: ≤0.19 lb without battery

What's Included

• RIX Tactical RENV-M fusion monocular
• Adapter kit between the device and helmet mount
• Battery pack
• Cable
• Portable carrying bag

Frequently Asked Questions

Is the RENV-M a clip-on or a standalone unit?

The RENV-M is a standalone integrated fusion monocular. Both the Gen 2+ image intensifier tube and the thermal sensor are built into one housing.

What is the difference between Outline, Highlight, Thermal Image, and Breath modes?

Outline mode shows the edges of heat signatures. Highlight mode displays a stronger thermal overlay. Thermal Image mode shows only the thermal channel. Breath mode pulses the overlay on and off so you can compare night vision and thermal views.

How long does the battery last?

The dual 18650 battery pack provides up to 100 hours in image intensifier mode and approximately 8+ hours in fusion mode. Runtime is rated at 72°F.

Is the RENV-M helmet-mountable?

Yes. The RENV-M includes an adapter kit that interfaces between the device and a standard helmet mount.

Can I switch the RENV-M between my left and right eye?

Yes. The RENV-M supports left- and right-eye use with lateral position adjustment for fit and comfort.

What thermal polarities are available?

The RENV-M supports White hot, Black hot, and Orange hot thermal polarity modes.

What is the thermal detection range?

The published detection range is 1,500 m, or 1,640 yd, on a 1.8 m, or 5'9", object in complete darkness.

Does the RENV-M have GPS?

GPS is not specified in the provided product information. The RENV-M does include azimuth indication and pitch/inclination angle sensors.

Is the RENV-M waterproof?

Yes. The RENV-M is IP67-rated, providing full dust protection and protection against temporary water submersion.

Is the RENV-M ITAR-controlled?

Yes. The RENV-M is an ITAR-controlled item under U.S. federal export law. Sales are restricted to U.S. persons as defined under 22 CFR § 120.15. Export outside the United States is prohibited without proper licensing.

Important Information

The RIX Tactical RENV-M is an ITAR-controlled item and may only be sold to U.S. persons as defined under 22 CFR § 120.15. Export of this product outside the United States is restricted under federal law. By purchasing, the buyer acknowledges and agrees to comply with all applicable U.S. export regulations.

Image intensifier tube performance varies by configuration. Tube specifications, including FOM, SNR, and resolution, will vary by individual unit.
